Tdc Flange Forming Machine Quality Assurance
Profile
Main features

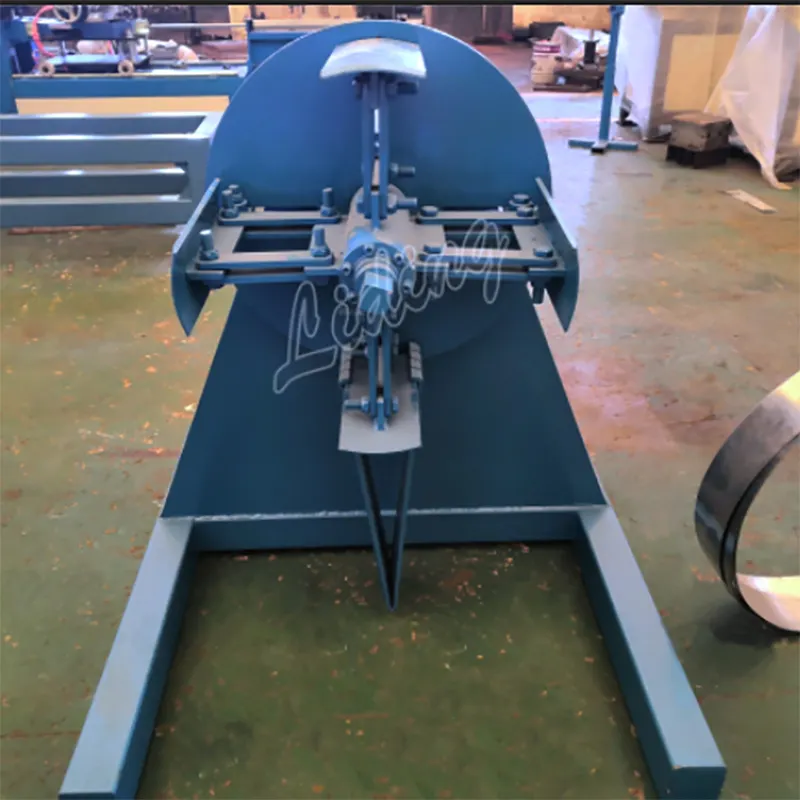

Decoiler
● Bore diameter 460~520mm.
● Material width 200mm
● Load weight 1000kg
● Quantity: One.
● Manual Expansion
● Powerless drive, with brake

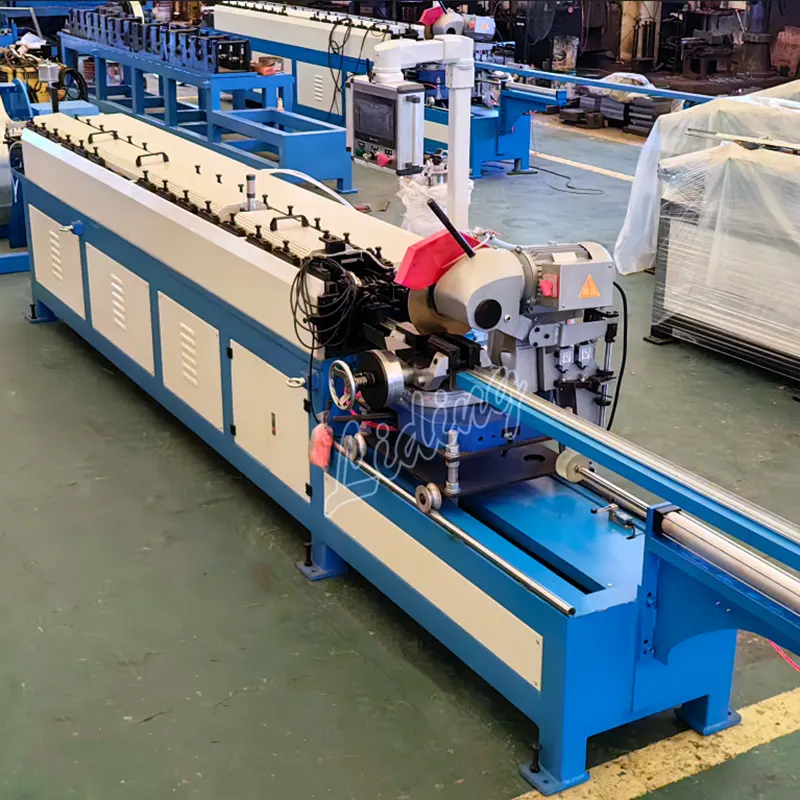

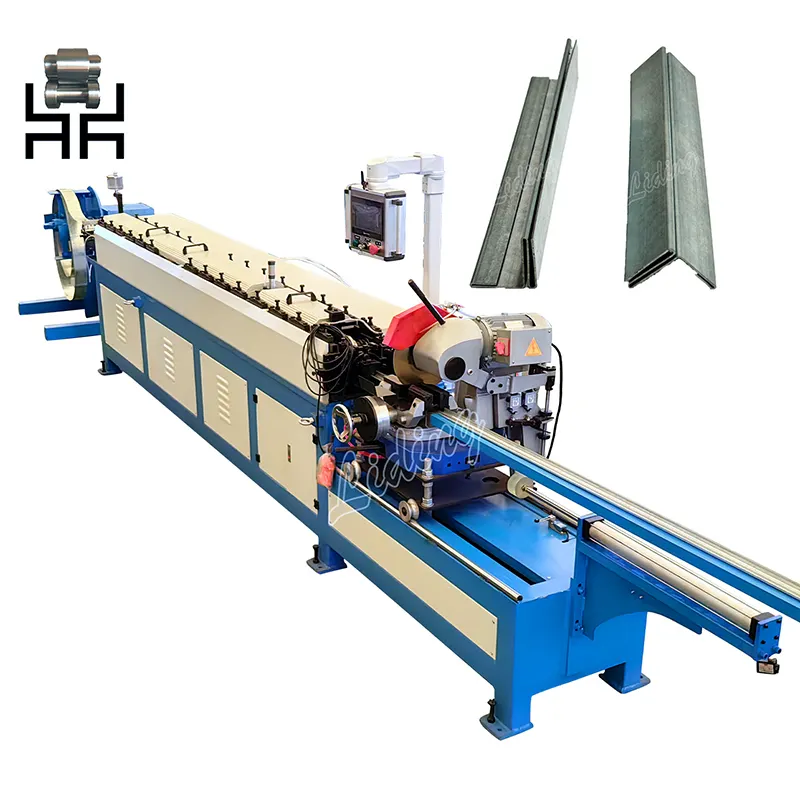

Forming machine
● Applicable materials: Galvanized sheet metal
● Material thickness: 0.7-1.2mm
● Main motor power: 3.7kw
● Molding speed: 6-8m/min
● Number of molding groups: 16 groups
● Shaft diameter and material: ¢ 42mm, 45# steel
● Great wall type plywood: plate thickness 25mm
● Transmission: Chain & gear transmission.
● Control system: PLC control
● Machine net weight: about 2.5 tons
● Voltage: 380V/ 3phase/ 50 Hz
● Dimensions of molding machine: approx. L*W*H 6m*0.7m*1.2m
● Forming roll material: Cr12MoV
● Punching die, cutting die material: Cr12MoV heat treatment HRC60-62℃.
Basic Configuration

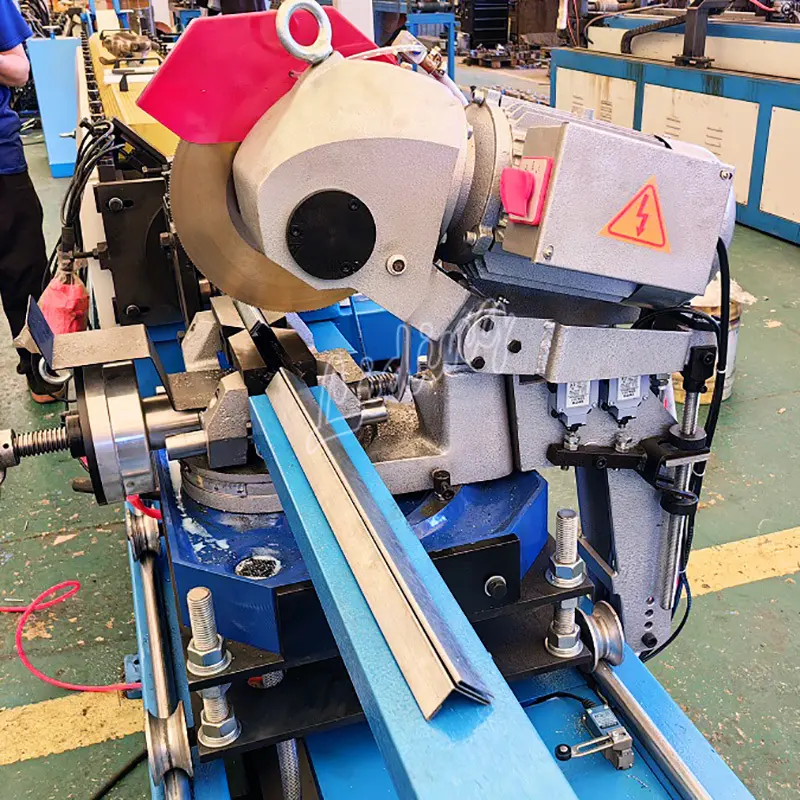

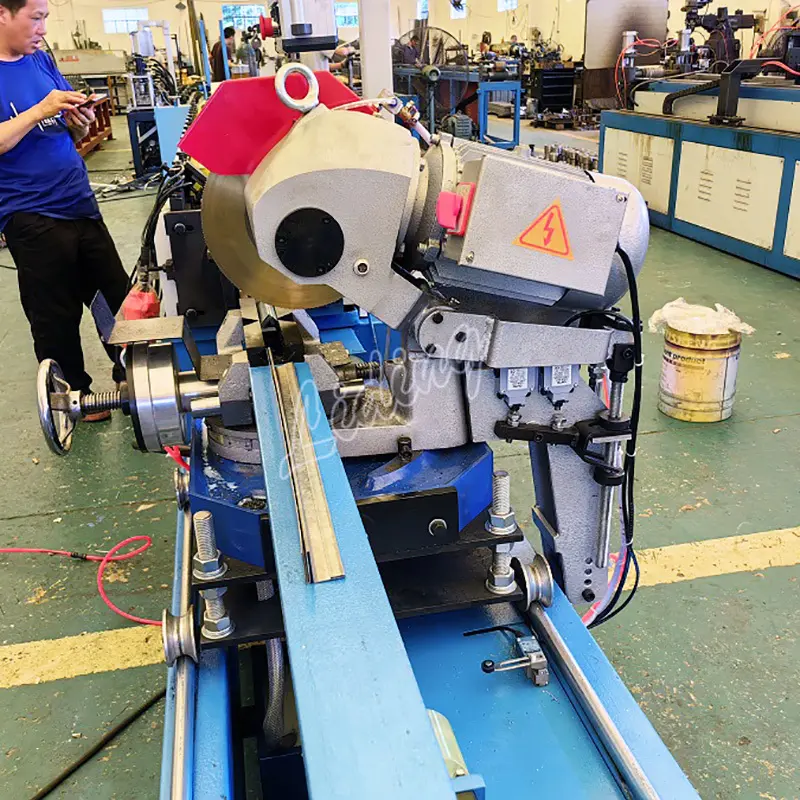

Mechanical circular saw cutting off part
● Motor power 2.2 kW
● Mechanical circular saw with saw blade
● Mold material: CR12MOV
● Processing hardness HRC60 ° -62 °
● The encoder detects the online shutdown cut-off
Run out table
● Flat length 4 meters
● Flat table structure using square tube angle iron composition.
PLC computer control cabinet
● Voltage: 380 V, 50 Hz, 3Phase
● Panasonic PLC, human-machine interface control, domestic inverter speed control.
● Main electrical parts adopt Schneider and Shihlin products.
● The length is counted by internal encoder.
● The electric control box adopts fully sealed ventilation and cooling device.
● The power supply of control system adopts overload protection.
● Adopting shutdown cut-off method.
Workflow
Decoiling - Cold Roll Forming - Cutting - Unloading - Finishing

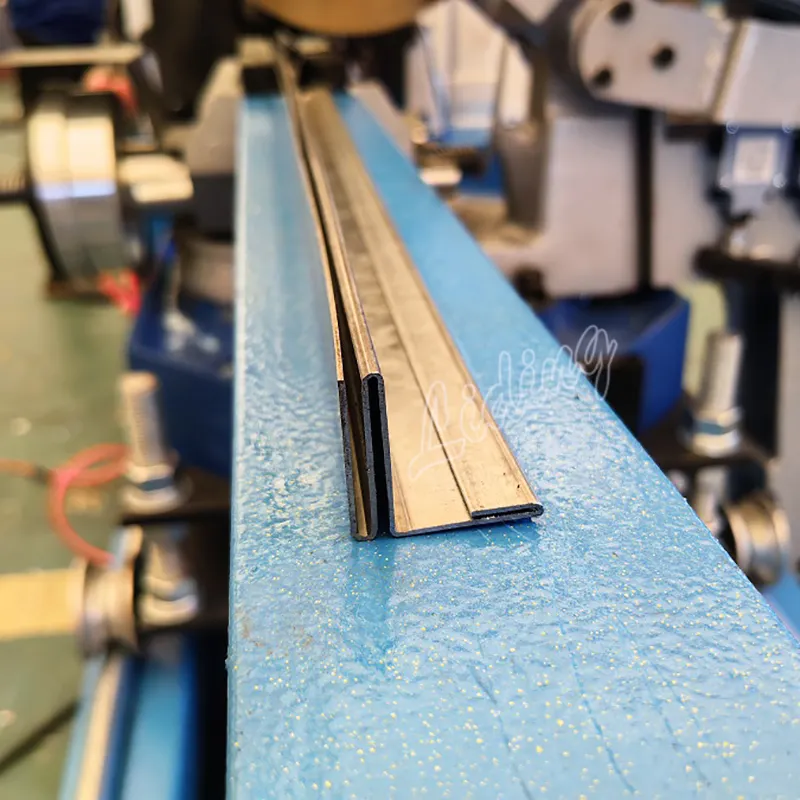

Product display
Company Advantages
· tdc flange forming machine has advantages of good quality material and special design.
· The product has high quality as it is manufactured in accordance with the quality standards of the industry.
· This product deserves popularization and application in its field.
Company Features
· 佛山市立鼎科技有限公司 is one of the leading companies that provides professional support for the development and manufacturing of tdc flange forming machine.
· The core process of production is strictly controlled by Liding Machine's strong technical force.
· To meet market demand, 佛山市立鼎科技有限公司 will adhere to this long-term advancement of tdc flange forming machine. Get quote!
Application of the Product
The tdc flange forming machine developed by Foshan Liding Technology Co.,ltd is widely used in various fields.
With a focus on Air Duct flange Roll forming machine,Fire damper production line,HAVC Air duct line,C/U/Z purlin forming machine,Storage Shelf roll forming machines, Foshan Liding Technology Co.,ltd is dedicated to providing reasonable solutions for customers.
