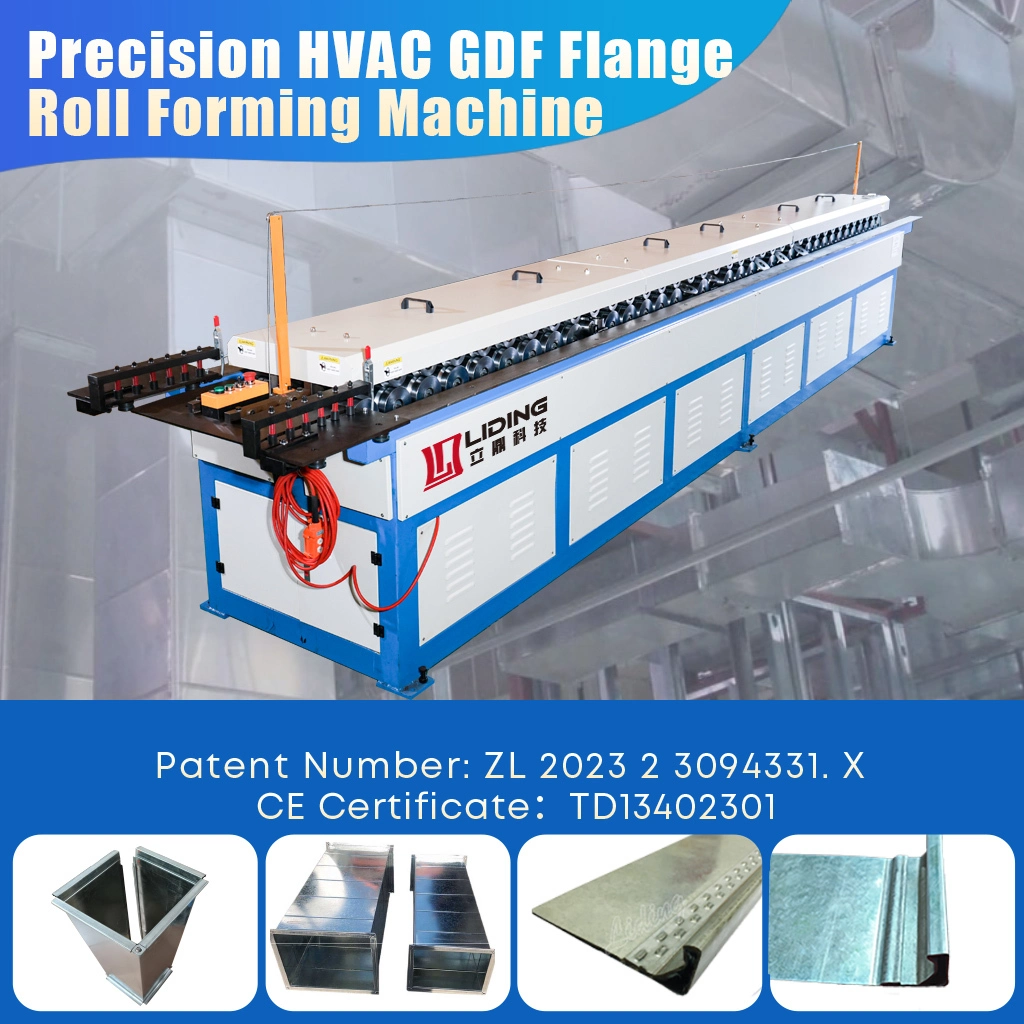

PDF20/30 Flange Roll Forming Machine
Application: For air duct
Product specification: PDF20/PDF30
Product height: 20mm,30mm
Material thickness PDF20 0.6-0.8mm
PDF30 0.8-1.0mm
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Main parameters
Mainframe
① Rolling material Galvanized sheet
② Rolling wheel 36 sets
③ Rolling wheel material Cr12MOV steel
④ Rolling wheel heat treatment HRC55°~57°
⑤ Rolling wheel spindle diameter 35mm, material 45# steel.
⑥ Rolling wheel bearing specification 40-30
⑦ Thickness of plywood 35㎜
⑧ Transmission method Chain and Gear
⑨ Motor power 7.5 kW.
⑩ Forming speed 10m/min.
⑪ Voltage; 380V 50Hz
Material thickness PDF20 0.6-0.8mm
PDF30 0.8-1.0mm
Product specification: PDF20/PDF30
Product height: 20mm,30mm
