Common plate inserted flange forming machine

Main parameters

Electric Decoiler

● Bore diameter 460~520mm.

● Material width 200mm

● Load weight 1000kg

● Quantity: One.

● Manual Expansion

● Powerless transmission,with brake.

Forming machine

● Applicable materials: Cold or galvanized sheet metal

● Material thickness: 0.4-0.6mm

● Main motor power: 4kw(servo motor)

● Molding speed: 3-6m/min

● Number of molding groups: 18 groups+5 groups for straightening

● Shaft diameter and material: ¢ 42mm, 45# steel

● Great wall type plywood: plate thickness 35mm

● Transmission: Chain & gear transmission.

● Control system: PLC control

● Machine net weight: about 4 tons

● Voltage: 380V/ 3phase/ 50 Hz

● Dimensions of molding machine: approx.  L*W*H 6m*0.8m*1.2m

● Forming roll material: Cr12MoV

● Punching die, cutting die material: Cr12MoV heat treatment HRC60-62℃.

Basic Configuration

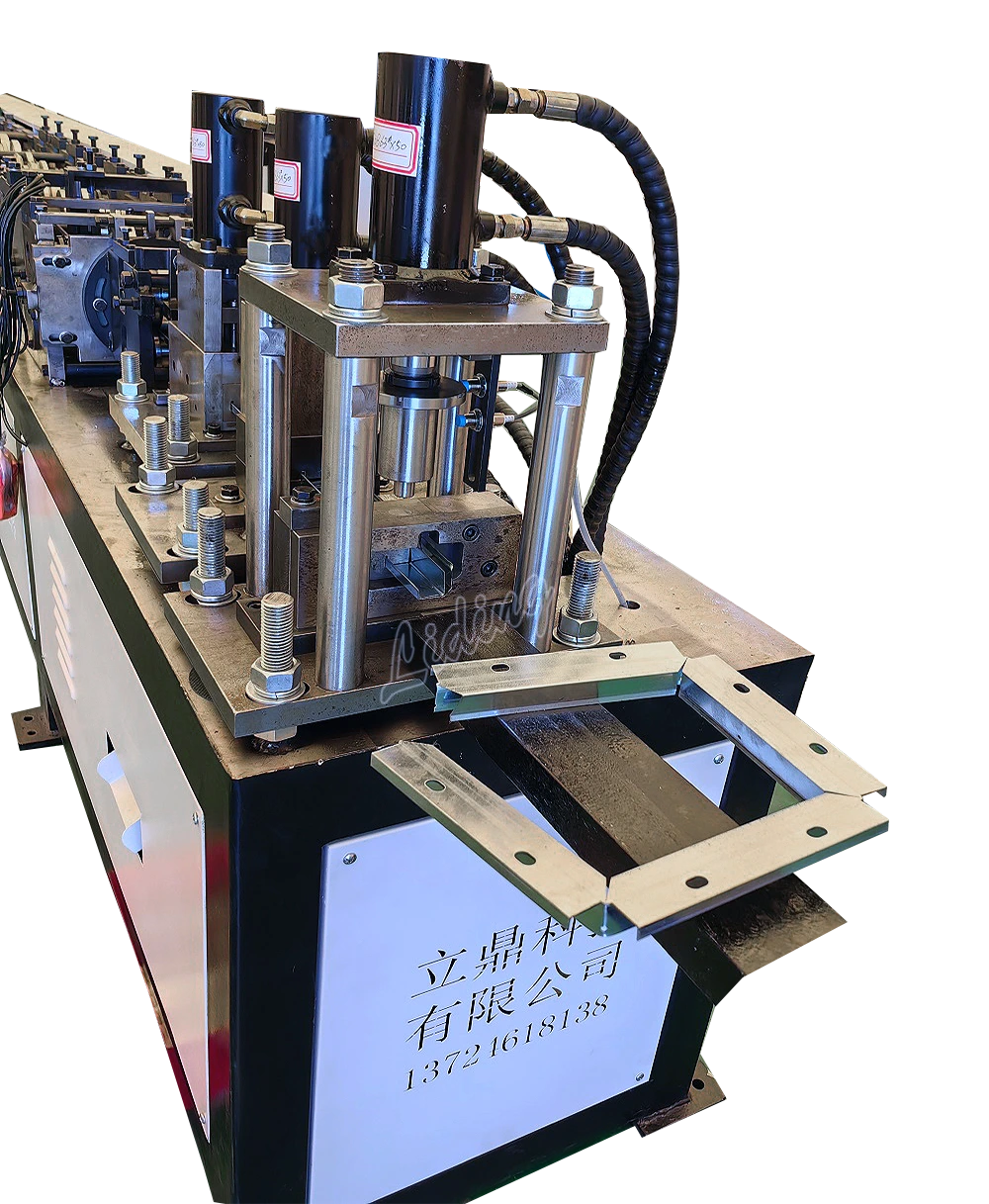

Cutting off parts

● Hydraulic system, hydraulic motor 2.2KW, three stations cylinder

● 1 set of punching molds, 1 set of 90 degree angle cutting molds, 1 set of waste cut-off molds

● Mold material: CR12MOV

● Processing hardness HRC60°-62°.

● Adopting online encoder to detect the stopping and cutting.

Run out table

● Flat length 4 meters

● Flat table structure using square tube angle iron composition.

PLC computer control cabinet

● Voltage: 380 V, 50 Hz, 3Phase

● Panasonic PLC, human-machine interface control, domestic inverter speed control.

● Main electrical parts adopt Schneider and Shihlin products.

● The length of the encoder using the internal control encoder counting length way

● Electronic control box adopts fully sealed ventilation cooling device.

● Control system power supply adopts overload protection.

● Adopt shutdown cut-off mode
