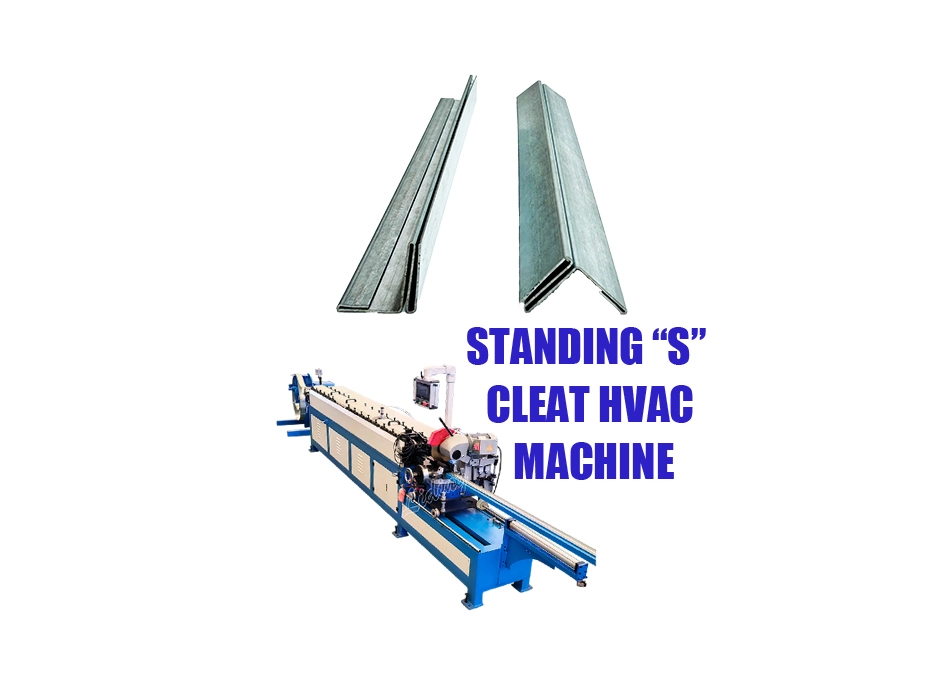

Plug-in flange forming machine For Air duct
Composition of the machine:
● Manual Decoiler,1 set
● Forming machine,1 set
● Mechanical circular saw cutting,1 set
● PLC control cabinet,1 set
Profile
Main features
Decoiler
● Bore diameter 460~520mm.
● Material width 200mm
● Load weight 1000kg
● Quantity: One.
● Manual Expansion
● Powerless drive, with brake
Forming machine
● Applicable materials: Galvanized sheet metal
● Material thickness: 0.7-1.2mm
● Main motor power: 3.7kw
● Molding speed: 6-8m/min
● Number of molding groups: 16 groups
● Shaft diameter and material: ¢ 42mm, 45# steel
● Great wall type plywood: plate thickness 25mm
● Transmission: Chain & gear transmission.
● Control system: PLC control
● Machine net weight: about 2.5 tons
● Voltage: 380V/ 3phase/ 50 Hz
● Dimensions of molding machine: approx. L*W*H 6m*0.7m*1.2m
● Forming roll material: Cr12MoV
● Punching die, cutting die material: Cr12MoV heat treatment HRC60-62℃.
Basic Configuration
Mechanical circular saw cutting off part
● Motor power 2.2 kW
● Mechanical circular saw with saw blade
● Mold material: CR12MOV
● Processing hardness HRC60 ° -62 °
● The encoder detects the online shutdown cut-off
Run out table
● Flat length 4 meters
● Flat table structure using square tube angle iron composition.
PLC computer control cabinet
● Voltage: 380 V, 50 Hz, 3Phase
● Panasonic PLC, human-machine interface control, domestic inverter speed control.
● Main electrical parts adopt Schneider and Shihlin products.
● The length is counted by internal encoder.
● The electric control box adopts fully sealed ventilation and cooling device.
● The power supply of control system adopts overload protection.
● Adopting shutdown cut-off method.
Workflow
Decoiling - Cold Roll Forming - Cutting - Unloading - Finishing
