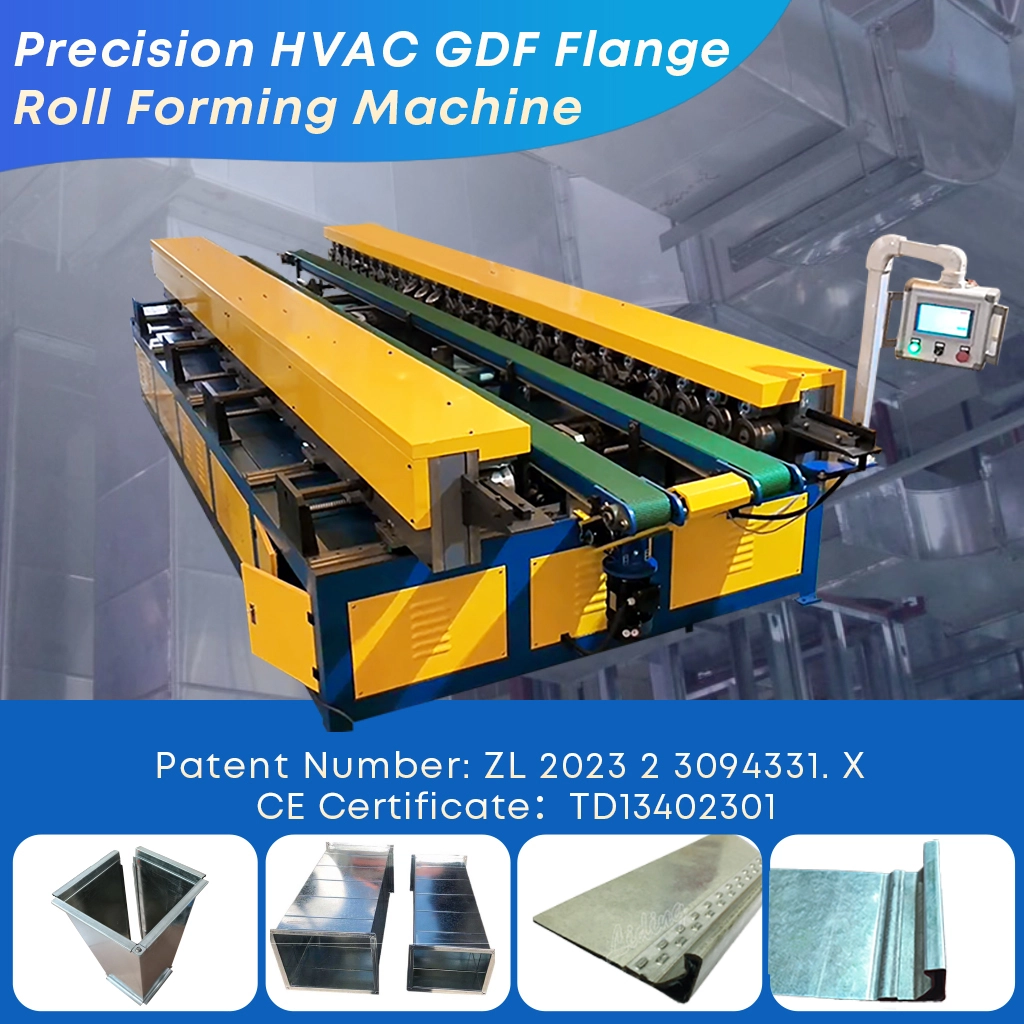

GDF / PDF Flange Duplex Roll Forming Machine - Liding Machine
Mainframe
① Rolling material: Galvanized sheet
② Rolling wheel: 26 sets
③ Rolling wheel material: GCr15 steel
④ Rolling wheel: heat treatment HRC55°~57°
⑤ Rolling wheel spindle diameter: 40mm, material 45# steel.
⑥ Rolling wheel bearing specifications: Harbin 6009
⑦ Thickness of plywood: 40㎜
⑧ Transmission method: Chain and vector wheel
⑨ Motor power :7.5 kW.
⑩ Forming speed: 10m/min.
⑪ Voltage:380V 50Hz
Main features
Product specification: GDF20
Product height: 20mm
① Material thickness GDF20 0.6-0.8mm
(The size is subject to customer requirements)
Application: For air duct.
Mainframe
① Rolling material: Galvanized sheet
② Rolling wheel: 26 sets
③ Rolling wheel material: GCr15 steel
④ Rolling wheel: heat treatment HRC55°~57°
⑤ Rolling wheel spindle diameter: 40mm, material 45# steel.
⑥ Rolling wheel bearing specifications: Harbin 6009
⑦ Thickness of plywood: 40㎜
⑧ Transmission method: Chain and vector wheel
⑨ Motor power :7.5 kW.
⑩ Forming speed: 10m/min.
⑪ Voltage:380V 50Hz
