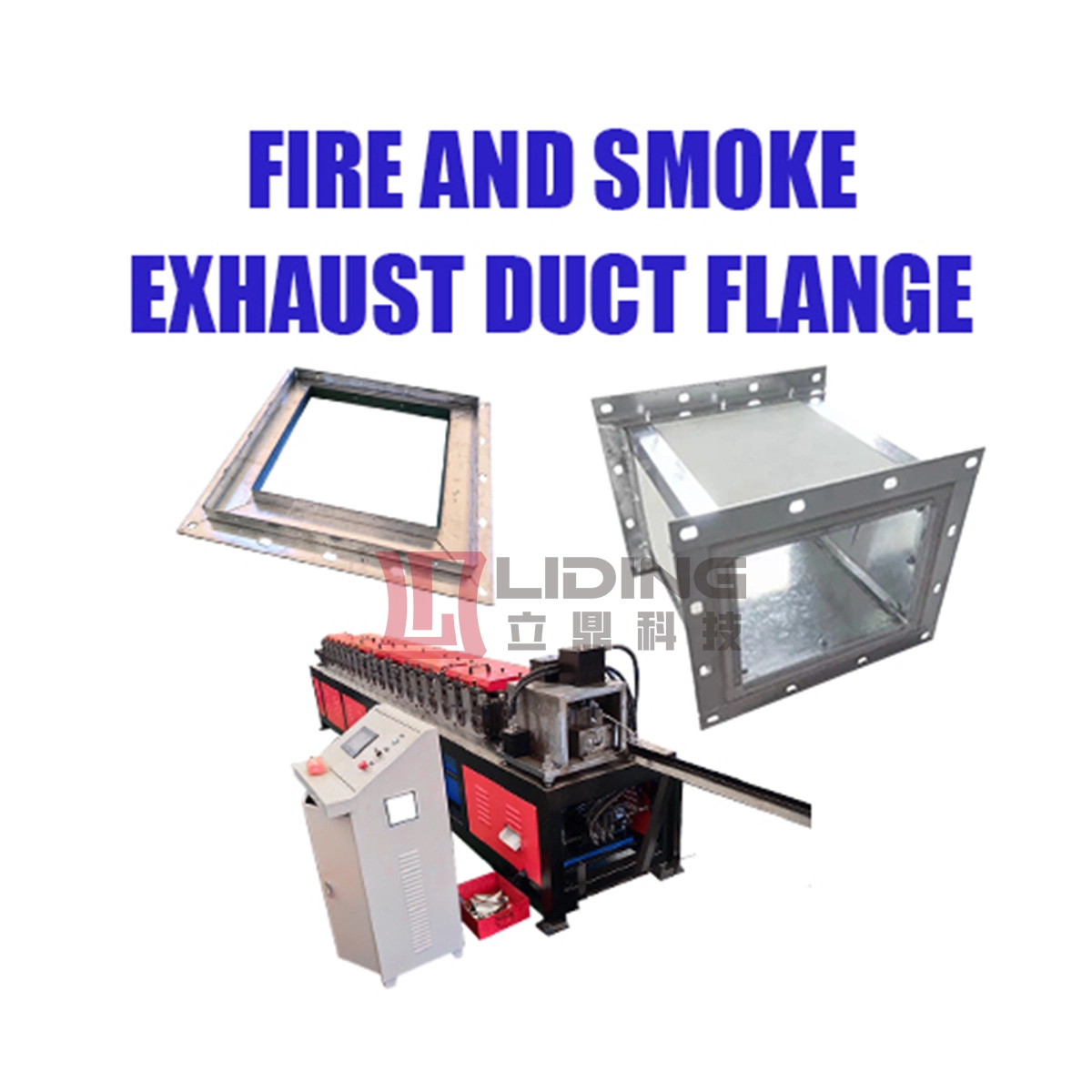

F50 Roll Forming Machine For Air duct
Electric Decoiler
● Bore diameter 460~520mm
● Material width 200mm
● Load weight 1000kg
● Quantity: One
● Manual Expansion
● No power transmission,with brakes.
Profile
Workflow
Decoiling - Cold Roll Forming - Cutting - Finishing
Composition of the machine
● Decoiler,1 ton
● Forming machine,18 groups
● Hydraulic cut-off mold,3 set
● Run out table,1 set
● PLC control cabinet,1 set
Basic Configuration
I. Electric Decoiler
● Bore diameter 460~520mm.
● Material width 200mm
● Load weight 1000kg
● Quantity: One.
● Manual Expansion
● No power transmission,with brakes.
II. Forming machine(5)
● Applicable materials:Galvanized sheet metal
● Material thickness: 1.5mm
● Main motor power: 11kw
● Molding speed: 1-3m/min
● Number of molding groups: 18 groups+5 groups straightening
● Shaft diameter and material: ¢ 48mm, 45# steel
● Great wall type plywood: plate thickness 30mm
● Transmission: Chain & gear transmission.
● Control system: PLC control
● Machine net weight: about 3 tons
● Voltage: 380V/ 3phase/ 50 Hz
● Dimensions of molding machine: approx. L*W*H 6m*0.8m*1.2m
● Forming roll material: Cr12MoV
● Punching die, cutting die material: Cr12MoV heat treatment HRC60-62℃.
Basic Configuration
V. Cutting off parts(1)
● With a set of hydraulic system device
● Hydraulic motor 7.5KW, one station oil cylinder
● With 1 set of flange hole molds, 2 sets of spigot hole molds, 1 set of 45-degree cut-off molds
● Mold material: CR12MOV
● Processing hardness HRC60°-62°.
● Adopt online encoder to detect the stopping and cutting.
VI. Run out table
● Flat length 1 meters
● Flat table structure using square tube angle iron composition.
Basic Configuration
VII. PLC computer control cabinet(3)
● Voltage: 380 V, 50 Hz, 3Phase
● Panasonic PLC, human-machine interface control, domestic inverter speed control.
● Main electrical parts adopt Schneider and Shihlin products.
● The length of the encoder using the internal control encoder counting method
● Electronic control box adopts fully sealed ventilation cooling device.
● Control system power supply using overload protection, electronic control frame using aviation plug connection
● Stopping cut-off mode
Product display
