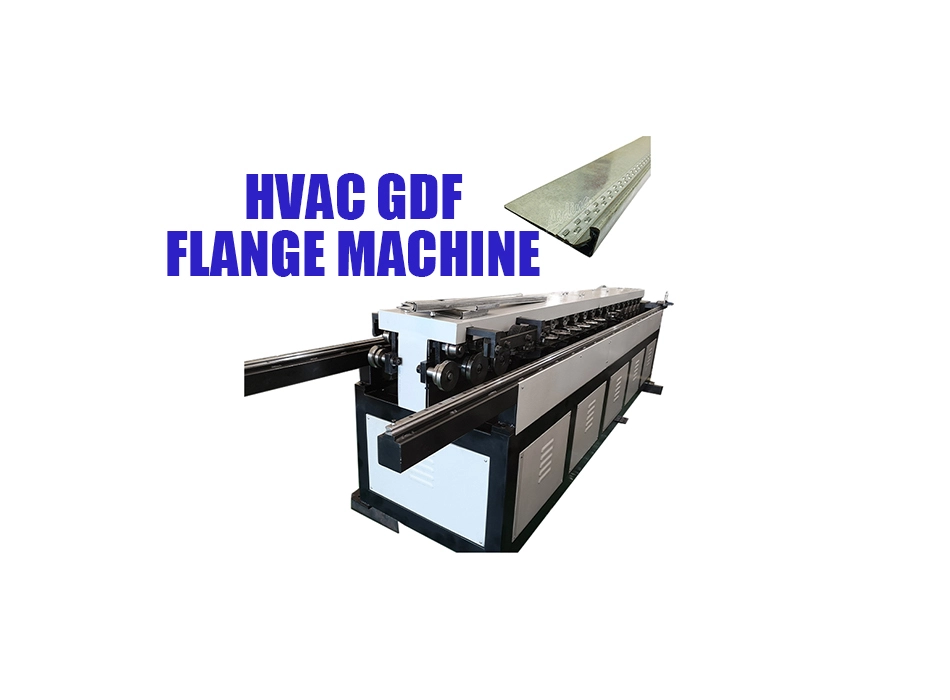

GDF20/30 Flange Roll Forming Machine
Application: For air duct
Product specification: GDF20/GDF30
Product height: 20mm,30mm
Material thickness GDF20 0.6-1.0mm
GDF30 0.8-1.2mm
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Main parameters
Mainframe
① Rolling material Galvanized sheet
② Rolling wheel 18 sets
③ Rolling wheel material GCr15 steel
④ Rolling wheel heat treatment HRC55°~57°
⑤ Rolling wheel spindle diameter 40mm, material 45# steel.
⑥ Rolling wheel bearing specification 45/35*20/6009
⑦ Thickness of plywood 40㎜
⑧ Transmission method Chain and Gear
⑨ Motor power 5.5 kW.
⑩ Forming speed 8m/min.
⑪ Voltage; 380V 50Hz
⑫Control party test: forward reverse stop
Material thickness GDF20 0.6-1.0mm
GDF30 0.8-1.2mm
Product specification: GDF20/GDF30
Product height: 20mm,30mm
Product display
1 拷贝 (2)
4 拷贝 (4)
2 拷贝 (2)
5 拷贝 (2)
3 拷贝 (4)
DSC_0810
