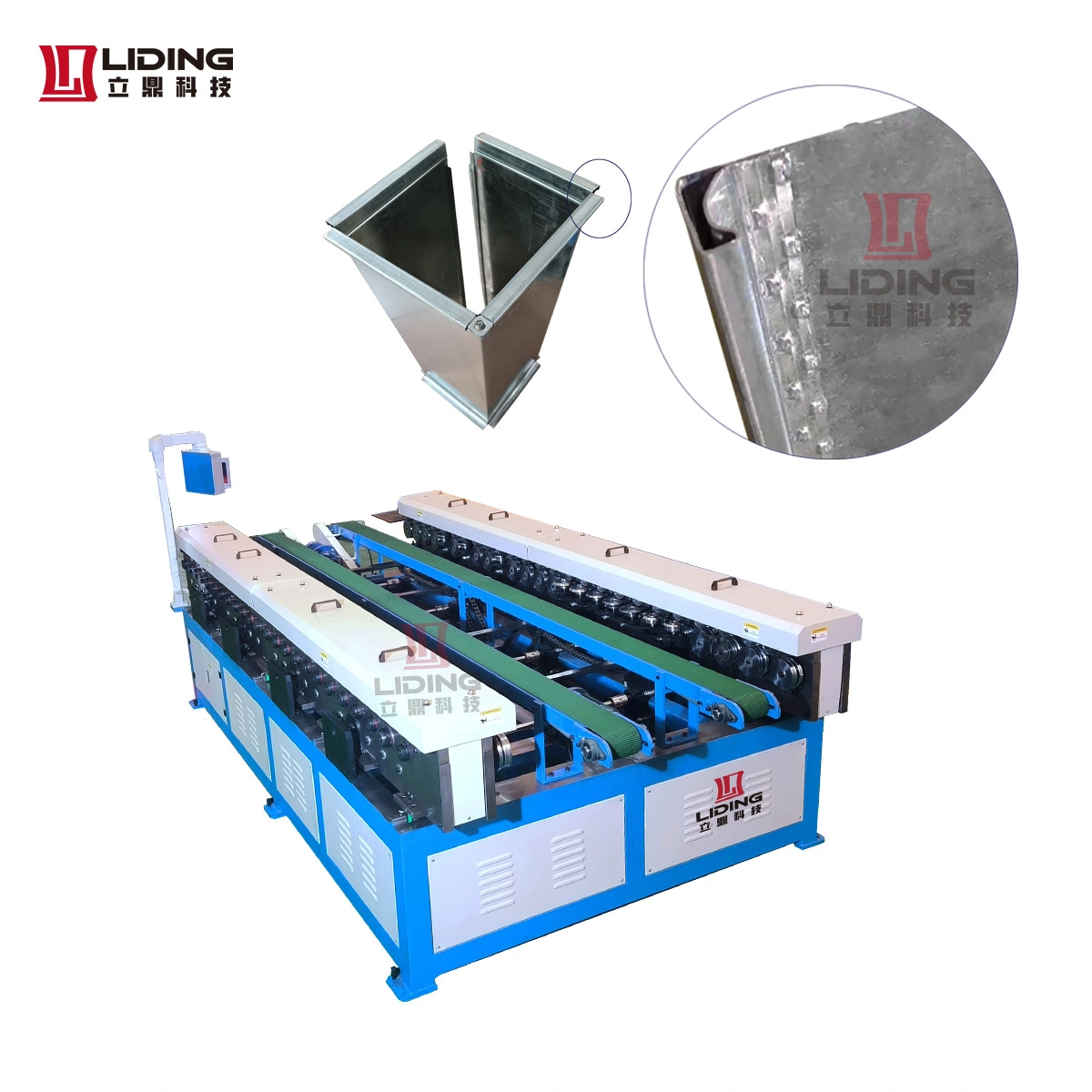

GDF/PDF Flange Duplex roll forming machine
Application: For air duct
Product specification: GDF20
Product height: 20mm
Material thickness GDF20 0.6-0.8mm
(The size is subject to customer requirements)
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Main parameters
Mainframe
① Rolling material: Galvanized sheet
② Rolling wheel: 26 sets
③ Rolling wheel material: GCr15 steel
④ Rolling wheel: heat treatment HRC55°~57°
⑤ Rolling wheel spindle diameter: 40mm, material 45# steel.
⑥ Rolling wheel bearing specifications: Harbin 6009
⑦ Thickness of plywood: 40㎜
⑧ Transmission method: Chain and vector wheel
⑨ Motor power :7.5 kW.
⑩ Forming speed: 10m/min.
⑪ Voltage:380V 50Hz
Material thickness GDF20 0.6-0.8mm
(The size is subject to customer requirements)
Product specification: GDF20
Product height: 20mm
Product display
未标题-1 (12)
微信图片_20250326165646
微信图片_20250326165711
微信图片_20250326165727
