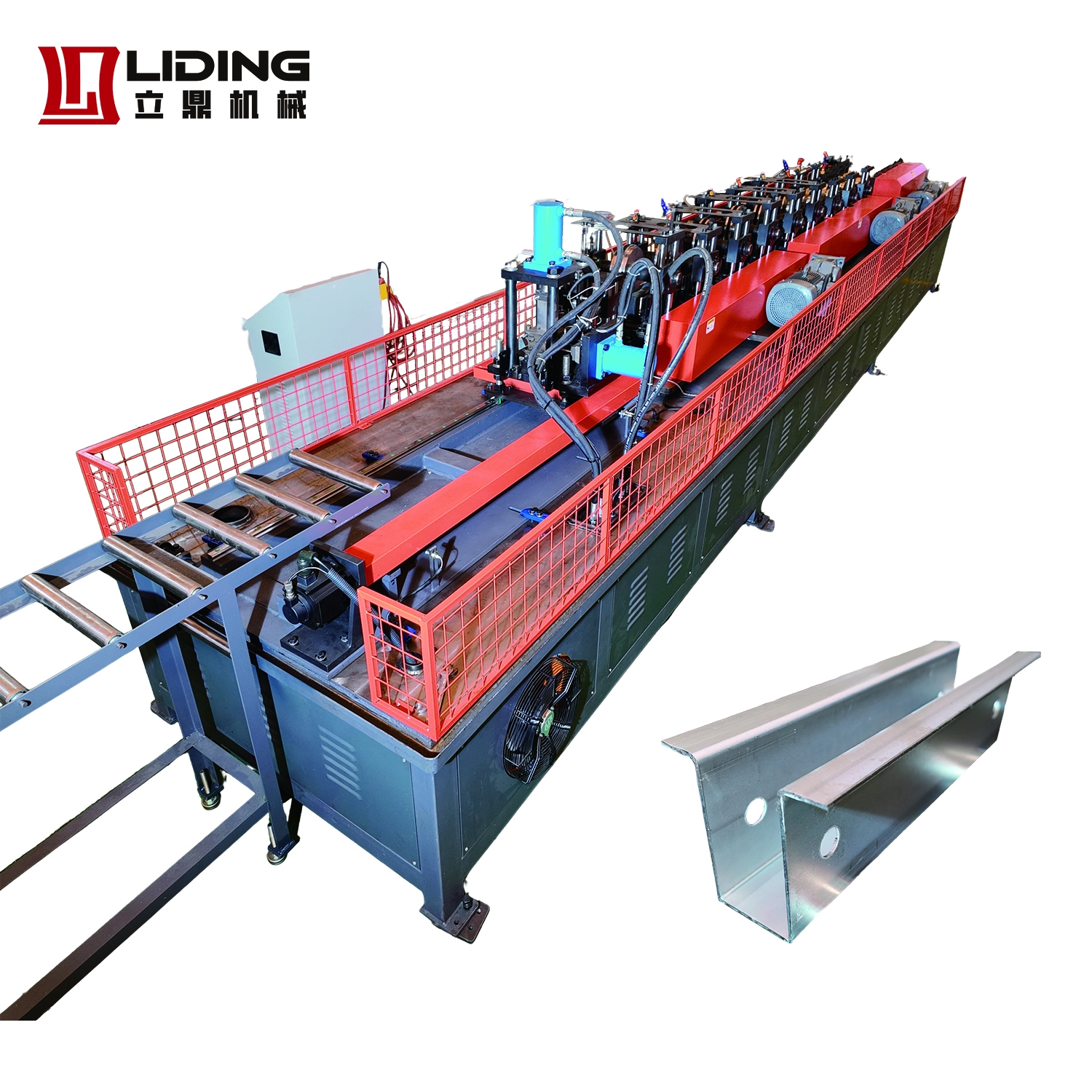

New Customized 2mm Galvanized Steel Hatω Roof Truss Channel Light Gauge Steel Roll Forming Machine
5.0
like
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(sets):80(days),2-2(sets):90(days),>2(sets):To be negotiated(days)
Brand Name:
Liding
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Power(W)
22kw
Work Pressure
16Mpa
Punching
High-speed punching
Application
Omega Roof Truss Channel Light Gauge
Weight
6000 kg
Warranty
1 Year
Voltage
380V 3phases 50HZ
Video outgoing-inspection
Provided
Selling point
High-accuracy
Profile design
custom
Product name
Omega Roof Truss Channel Light Gauge Steel Roll Forming Machine
Place of Origin
Guangdong China
Operation
Automatic
Material
Steel Galvanized Plate
Machinery Test Report
Provided
Keywords
purlin roll forming Making Machine
Key Selling Points
Easy To Operate
Electric Control system
Fully Automatic PLC(imported Brand),transducer, touch panel
Dimension(L*W*H)
About 7000mm*2000mm*1800mm
Core Components
PLC, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
After-sales Service Provided
Online support, Free spare parts, commissioning and training
Products Description
The hat-shaped keel features a "U"-shaped cross-section with outward flanges, delivering excellent bending and torsion resistance.
It can be directly used as roof purlins, paired with main steel structures, and is ideal for constructing large-span lightweight
roofs.
It can be directly used as roof purlins, paired with main steel structures, and is ideal for constructing large-span lightweight
roofs.
Product Specifications
Omega Bracket Roll Forming Machine for Panel Making with Changeable Dimensions details:
Roll forming machine details:
Feeding material: galvanized steel coil
Thickness of the plate:1-2 mm （as request）
Thickness of the plate:1-2 mm （as request）
Rolling stages:14 stations
Rolling Material : Cr12MoV
Productivity: 20m/min
Total power: 22 kw machine motor
Voltage:380V 50Hz 3phase
Side plate:30mm
Cutting blade: Cr12MoV with heat treatment
Productivity: 20m/min
Total power: 22 kw machine motor
Voltage:380V 50Hz 3phase
Side plate:30mm
Cutting blade: Cr12MoV with heat treatment
Transmission: gearbox transmission
No | Item | Data |
1 | Decoiler | Bearing 3 Ton |
4 | Roll Forming Machine | 7 Ton |
5 | Servo tracking Hydraulic cutting system | 1 set |
6 | Run Out Table | 4 m |
7 | PLC controling | PLC control system with touch screen |
Producing process
Decoiling →Roll forming&Straightening→ Servo tracking Punching & Cutting→Run-out table
Details Images
Decoiler
Original: Guangdong,China (mainland)，This is an uncoiler system，which can supply the coil for the flowing flow.
1. Feeding material: galvanized plate
2. Material thickness:1-2 mm
3.Change specifications
4. Forming speed: 20m/min.
PLC computer control box
1.Voltage: 380 V, 50 Hz, 3Phase 2. Punching automatic length measurement: servo motor 3. Automatic measurement: Encoder
3.Control panel: push button switch, touch screen
Hydraulic cutting system
Original: Guangdong, China (mainland)
1. with one set of hydraulic system device
2. Servo-driven tracking shearing, hydraulic punching and cutting with online encoder detection
3. Combination cutting dies for 5 profiles (30×35, 40×35, 50×35, 60×35, 70×35)
Company Profile
Foshan Liding Machinery Equipment Co., Ltd.
is established in 2014 and located in Foshan city which is the industrial center in Guangdong Province, China. Liding integrates scientific research, production and operation as one, specializing in the design and manufacture of cold-forming equipment automatic production lines, such as plug-in TDC flange machine, elliptical pipe machine,spiral duct machine, a variety of shaped cold-forming machinery, etc.
Liding provides the most professional and precise cold-forming machine machinery equipment,which has reliable quality and stable performance. A team of experienced engineers is working with PROE design software system and skilled technicians for machine production and inspection.
Liding customises stable, efficient roll forming machinery to satisfy customer requirements, aiming to developing business relations with customers from all over the world, strengthening mutual benefits and cooperation.
Company Advantages
Percentage of 100 technical service support
More than 10 professional R&D team
More than 10 professional R&D team
20 years of professional manufacturing experience in cold roll forming machines
Focus on quality and Quick response to clients
CUSTOMER VISIT
Operation-speed regulation-maintenance-type change. overseas trainer service package teachingspackage meeting 100% Welcome new and old customers to visit the factory and learn more.
Certifications
FAQ
1. who are we?
We are based in Guangdong, China, start from 2014,sell to Mid East(25.00%),Eastern Asia(20.00%),Eastern Europe(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fire damper production line,Storage Shelf roll forming machines,Flange Roll Forming machines,Shutter Door forming machine,HVAC Air Duct production line,ETC.
4. why should you buy from us not from other suppliers?
1.100 Percent technical service support 2.More than 10 professional R&D team 3.25 years of professional manufacturing experience in cold roll forming machines 4.Focus on quality and Quick response to clients
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2014,sell to Mid East(25.00%),Eastern Asia(20.00%),Eastern Europe(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fire damper production line,Storage Shelf roll forming machines,Flange Roll Forming machines,Shutter Door forming machine,HVAC Air Duct production line,ETC.
4. why should you buy from us not from other suppliers?
1.100 Percent technical service support 2.More than 10 professional R&D team 3.25 years of professional manufacturing experience in cold roll forming machines 4.Focus on quality and Quick response to clients
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
