For Factory Flange Forming Machine by Liding Machine
Product details of the flange forming machine
Quick Detail
The material waste of Liding Machine flange forming machine is reduced during production. This product meets the stringent quality standards of the global market. Over the years, 佛山市立鼎科技有限公司 has insisted on optimizing products structure.
Product Description
Foshan Liding Technology Co.,ltd pursues excellent quality and strives for perfection in every detail during the production.
Main parameters

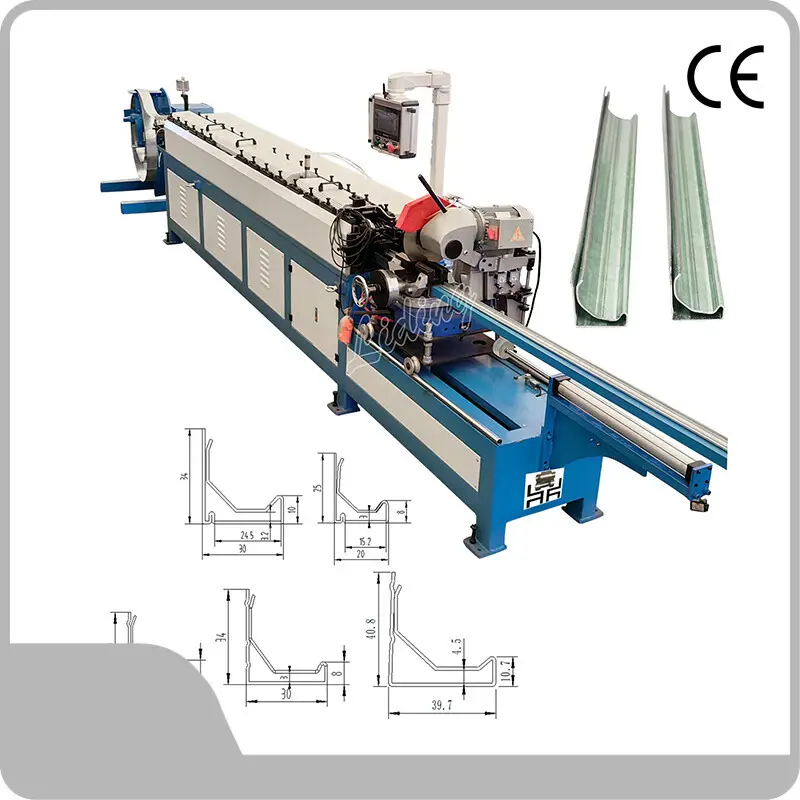

tdc flange forming machine details
① Feeding material: aluzinc/galvanized steel/colored steel coil or as customer request
② Feeding Thickness : 0.8-1.0mm
③ Productivity: 6-8m/min
④ hydraulic pump station power:2.2kw
⑤ Cutting blade: heat treatment hardness HRC60°-62°
⑥ Forming machine size: approx. L*W*H 7m*0.8m*1.2m
⑦ Machine net weight: approx. 2.5 tons
⑧ Machine table：welded with 100*80 square tube
⑨ Side plate thickness:25mm
⑩ Main motor power:4kw
⑪ Rolling stages:15stages+ 5 rollers for straightening
⑫ Shaft diameter : ￠42mm
⑬ Shaft material：45# steel，quenched and finely ground outer circle
⑭ main bearing material :6207
⑮ Roller material: GCr15 steel
⑯ Control systerm: PLC control system with touch screen
⑰ Roller driven type：Chain and gear transmission
⑱ Voltage: 380V/ 3phase/ 50 Hz
Producing process
Decoiling → Feeding → Roll forming →Circular steel sawing-off →Run-out table
Product display
