Professional Duct Making Machine Duct Making Machine Company
Main features
Product specification: GDF20
Product height: 20mm
① Material thickness GDF20 0.6-0.8mm
(The size is subject to customer requirements)
Application: For air duct.
Mainframe
① Rolling material: Galvanized sheet
② Rolling wheel: 26 sets
③ Rolling wheel material: GCr15 steel
④ Rolling wheel: heat treatment HRC55°~57°
⑤ Rolling wheel spindle diameter: 40mm, material 45# steel.
⑥ Rolling wheel bearing specifications: Harbin 6009
⑦ Thickness of plywood: 40㎜

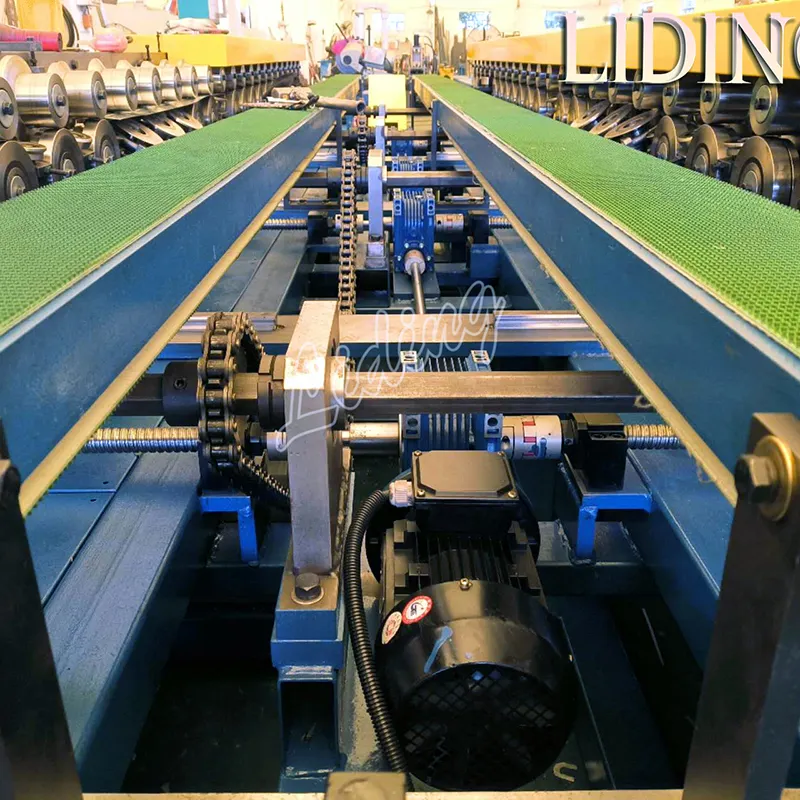

⑧ Transmission method: Chain and vector wheel
⑨ Motor power :7.5 kW.
⑩ Forming speed: 10m/min.
⑪ Voltage:380V 50Hz

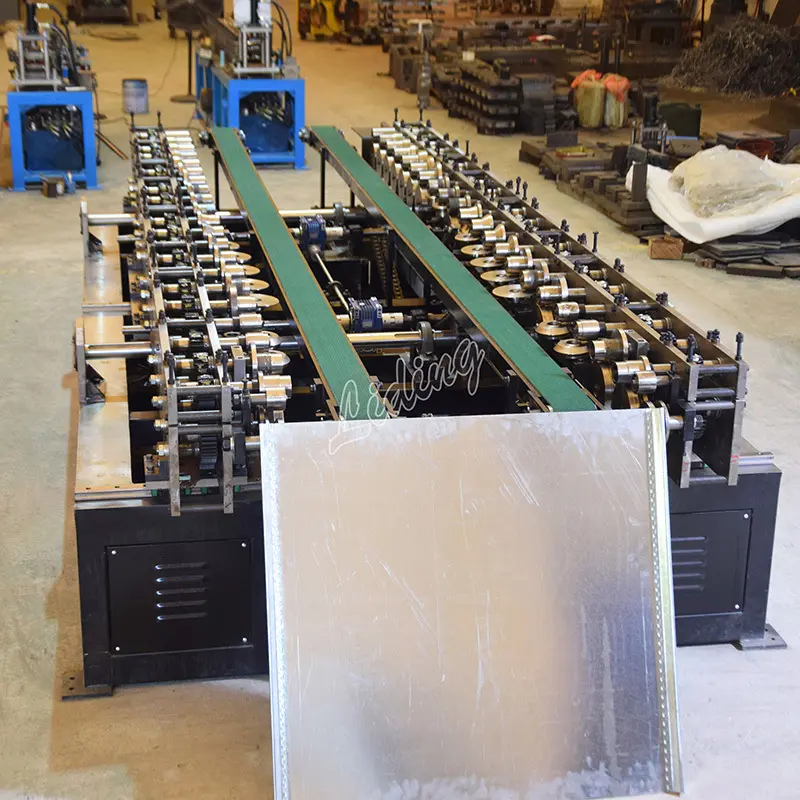

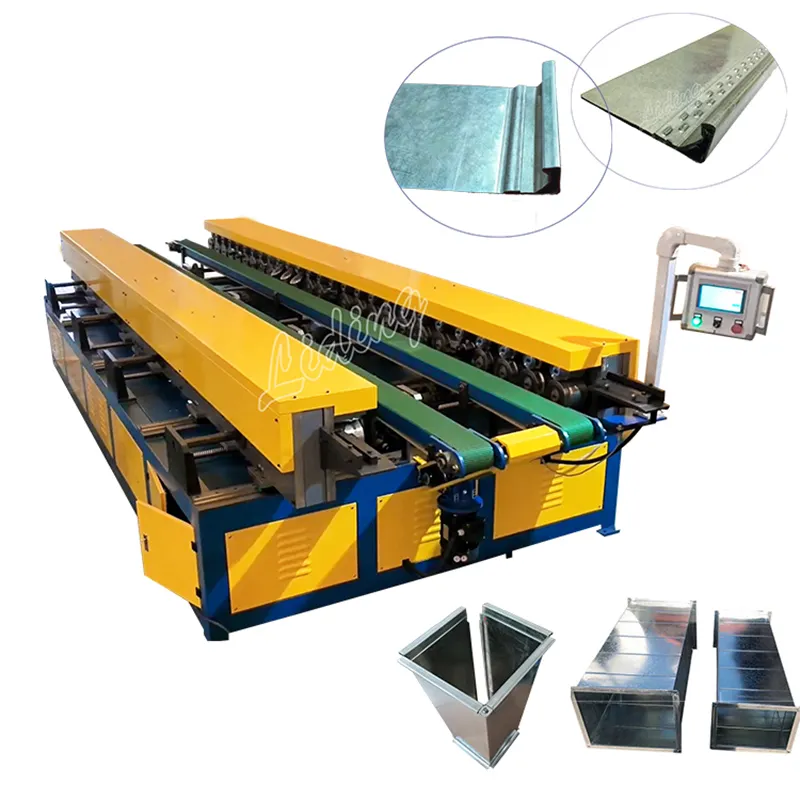

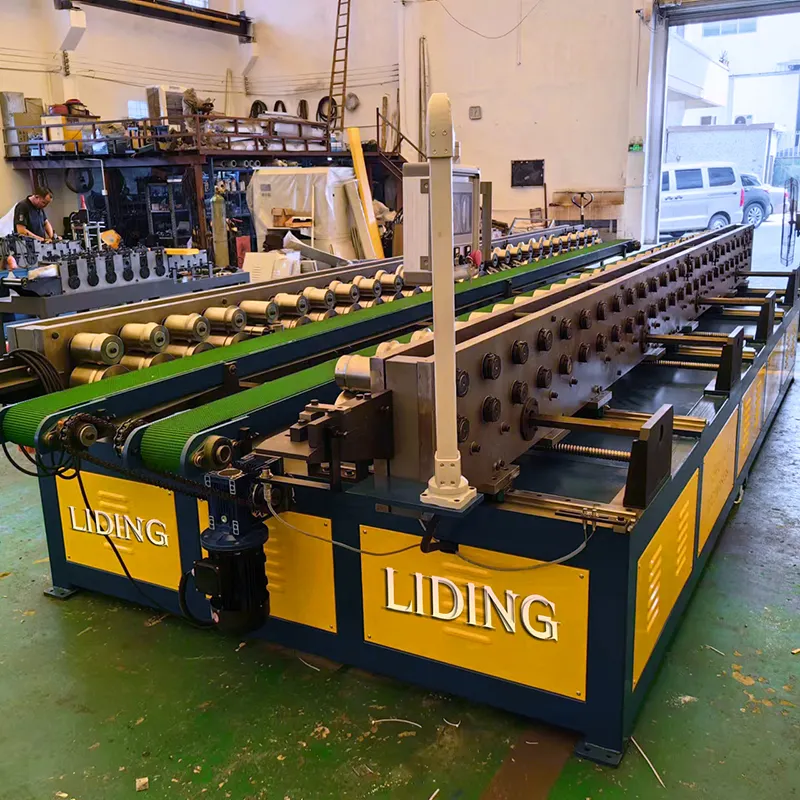

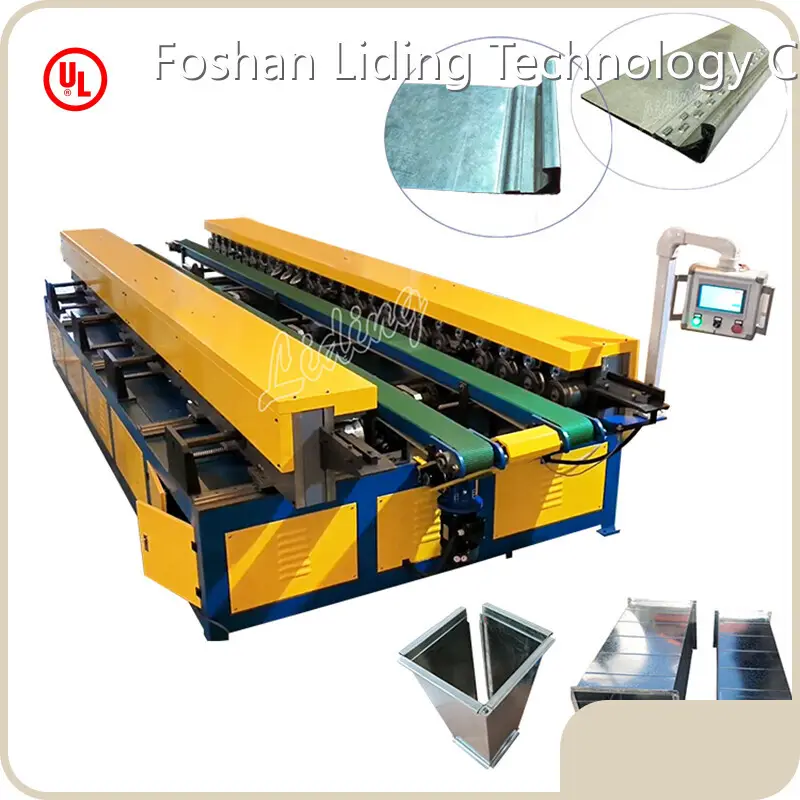

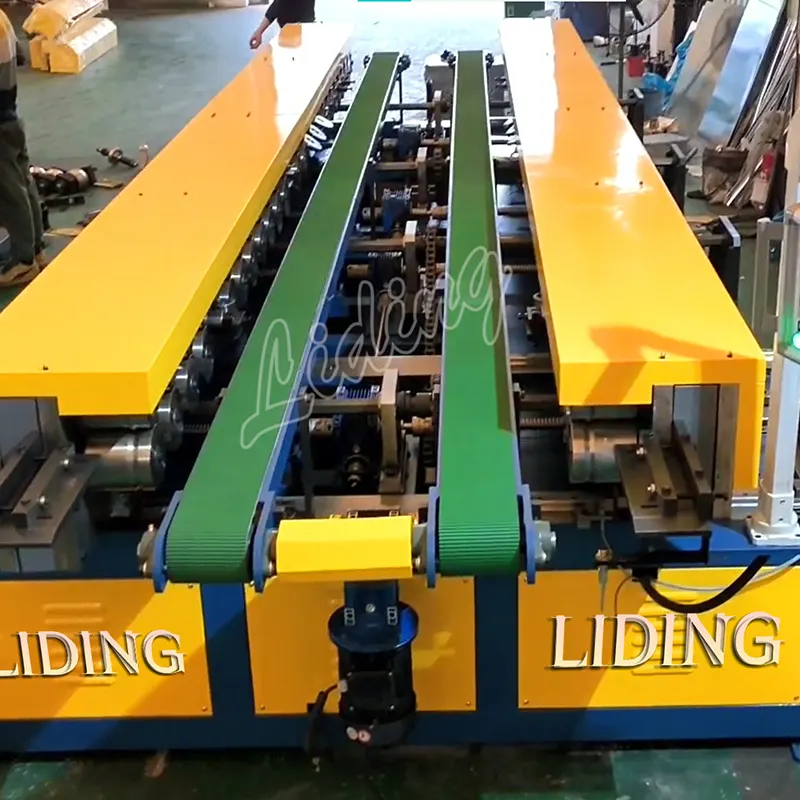

Product display
Company Advantages
· Entire range of this product offered by us is hugely demanded owing to these features.
· Thanks to the advanced technology, our duct making machine can be controlled intelligently.
· 佛山市立鼎科技有限公司 has established and kept good maintainance of its brand relationship.
Company Features
· 佛山市立鼎科技有限公司 is a trustworthy supplier of duct making machine. We develop and manufacture high quality duct making machine for a wide portfolio of global customers.
· 佛山市立鼎科技有限公司 has been centered on the development technology of duct making machine.
· 佛山市立鼎科技有限公司 adheres to the strategic tenet of green development.
Application of the Product
The duct making machine produced by our company is widely recognized by customers and widely used in field.
Foshan Liding Technology Co.,ltd insists on providing customers with Air Duct flange Roll forming machine,Fire damper production line,HAVC Air duct line,C/U/Z purlin forming machine,Storage Shelf roll forming machines of high quality and a one-stop solution that's comprehensive and efficient.
