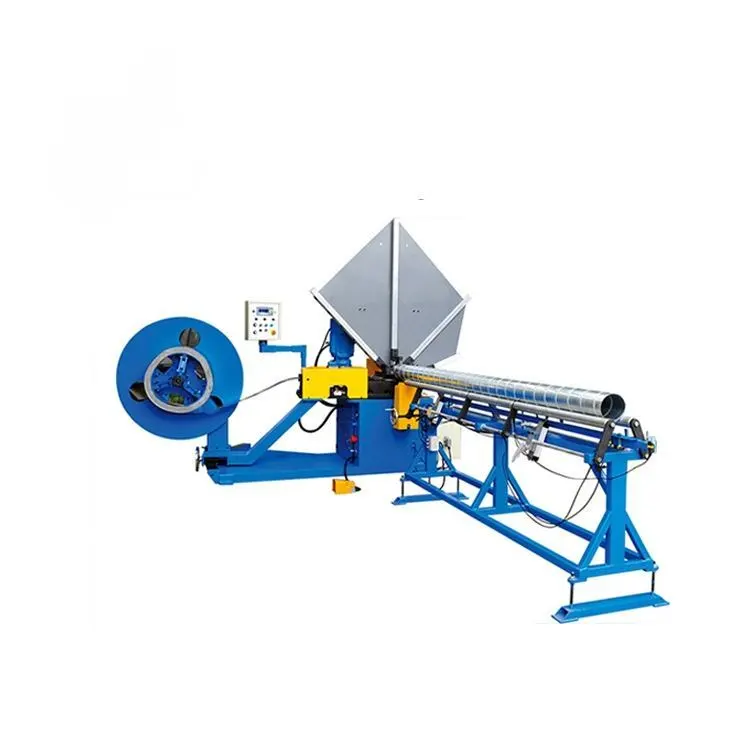

Spiral Duct Making Machine,Air Tube Spiral Ducting Machine Round Duct Former Machine
5.0
like
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-3(sets):20(days),>3(sets):To be negotiated(days)
Brand Name:
Liding
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Power(W)
16kw
Weight
2000 kg
Warranty
1 Year
Video outgoing-inspection
Provided
Place of Origin
China
Machinery Test Report
Provided
Key Selling Points
Easy To Operate
Dimension(L*W*H)
2700x1700x2300mm
Core Components
PLC, Engine, Bearing, Motor
Liding hotsale spiral duct machine
Performance Features
Spiral duct making machine, is the production of spiral duct machine. Spiral duct is made of metal strip material spiral wound into thin-walled tube, circular, no welding, no leakage, no leakage, and more for air supply and bulk material transport, instead of the traditional white iron pipe (that is, hand Bite seam iron pipe). Is a kind of duct, full-mechanism straight tube withouthand tapping.
Spiral duct making machine, is the production of spiral duct machine. Spiral duct is made of metal strip material spiral wound into thin-walled tube, circular, no welding, no leakage, no leakage, and more for air supply and bulk material transport, instead of the traditional white iron pipe (that is, hand Bite seam iron pipe). Is a kind of duct, full-mechanism straight tube withouthand tapping.
Performance Features
1, patented mold, easy to adjust, and has its own patent, replace the mold more trouble and save the province of materials
2, high-speed synchronous cutting system
3, PLC control
4, can be on-site construction
5, can be adjusted
6, high-quality products, high-quality services
7, the system can handle galvanized sheet, aluminum
8, automatic roll out of equipment
9, can produce a variety of different diameter spiral tube Machine
2, high-speed synchronous cutting system
3, PLC control
4, can be on-site construction
5, can be adjusted
6, high-quality products, high-quality services
7, the system can handle galvanized sheet, aluminum
8, automatic roll out of equipment
9, can produce a variety of different diameter spiral tube Machine
|
Diameter range
|
Φ100-Φ1500mm
|
|
Thickness range
|
Galvanized plate:0.5-1.0mm
|
|
Material width
|
137-140mm
|
|
Tube length
|
800-1200mm
|
|
Feeding speed
|
0-35m/min,adjustable
|
|
Cutter
|
Sawblade for cutting
|
|
Locking
|
Pipe outer surface
|
|
Total weight
|
1800kg
|
|
Equipment sizes
|
2700*1700*2300mm
|
|
Main motor power
|
5.5kw
|
|
Power supply
|
380V/50HZ/3ph(other power supply optional)
|
|
Control console
|
Touchscreen
|
