Product details of the roll forming machine supplier
Product Overview
The offered roll forming machine supplier is manufactured using premium quality materials and sophisticated technology. Our excellent R&D team has greatly improved the quality and performance of our products. The roll forming machine supplier produced by Foshan Liding Technology Co.,ltd is widely used in many industry sectors. Liding Machine not only appreciates the roll forming machine supplier but also a service commitment.
Product Introduction
Compared with other same kind of products in the market, Foshan Liding Technology Co.,ltd's roll forming machine supplier is equipped with the following outstanding advantages.
Main features
Forming machine
● Applicable materials: Cold or galvanized sheet metal
● Material thickness:Blade1.0mm；Blade type 1\2\3 0.5mm
● The forming rolls of the two products are installed side by side on the same frame to produce two specifications of profiles respectively.
● Blade type 1\2\3 is notched before forming.
● The frame is welded with 100*80 pipe.
● Rolling roller 10 sets
● Rolling roller material GCr15 steel
● Rolling roller heat treatment HRC55°~57°.
● Rolling wheel bearing diameter 42mm, material 45# steel.
● Rolling roller bearing specification 6207
● Plywood thickness 25㎜
● Transmission method Chain and gear wheel
● Motor power 3 kW, K77
● Forming speed 6 m/min
Composition of the machine
● Manual Decoiler ,1 set
● Forming main machines (Internal and external )，1 set
● Hydraulic system Mold,1 set
● Electric control device (touch screen, inverter, PLC, etc.)

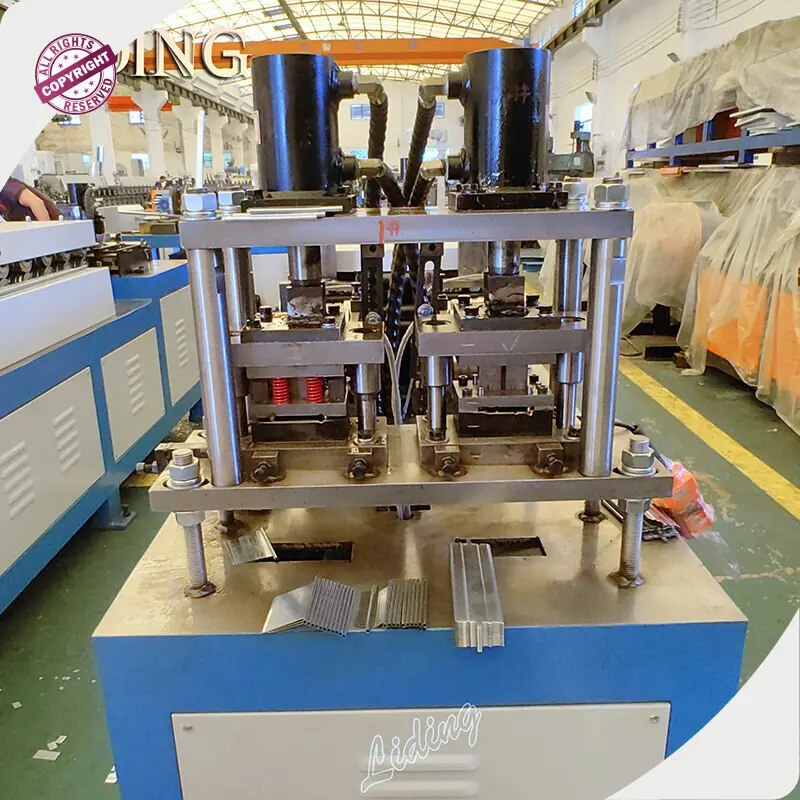

Cutting off parts
● With a set of hydraulic system device
● With Blade cut off mold 1 set, Blade type 1\2\3 cut off mold, 2 sets (replacement)
● Motor power 2.2kw
● Adopt cylinder control cutting method
● Cutting off by stopping the machine
Run out table
● Flat length 1 meters
● Flat table structure using square tube angle iron composition.
PLC computer control cabinet
● Voltage: 380 V, 50 Hz, 3Phase
● Adopt Panasonic PLC, human-machine interface control and domestic inverter for speed regulation.
● Main electrical parts adopt Schneider and Shihlin products.
● The length of the encoder using the internal control encoder counting length of the way
● Electronic control box adopts fully sealed ventilation and cooling device.
● Control box using fully sealed ventilation cooling device
● Control system power supply using overload protection, electronic control frame using aviation plug connection
● Stopping cut-off mode
Workflow
Decoiling -Punching- Cold Roll Forming - Cutting - Unloading - Finishing
