Oem & Odm for Sale Factory Price for Sale
Product details of the for sale
Product Overview
for sale's structure adopts the unique technology to guarantee the high performance. Its quality is taken into account strictly by our professional QC team. The for sale developed by Foshan Liding Technology Co.,ltd is widely used in industry. It is said that the product has good economic benefits and has broad market prospects.
Product Description
More detailed information about for sale will be shown below for you.
Technical Parameters
|
Item |
Parameters |
|
Material |
Galvanized Plate |
|
Material Thickness |
1.8 - 2.0 MM (or 1.2 - 1.5 MM) |
|
Width of Coil |
According to Customer's Requirement |
|
Weight of Coil |
≤ 2000 KGS |
|
Blade Size |
150 – 205 MM |
|
Center Distance between Left and Right Grooves |
102 MM, Round Groove |
|
Formed Blade Width |
≤ 205 MM (If ﹥205 MM, Blade Flatness cannot be Guaranteed) |
|
Punching or Punch Blade Coverplate Hole |
According to Customer's Requirement |
|
Motor Power |
5.5 KW / 4 KW |
|
Forming Speed |
1 – 10M/Min, Adjustable |
|
Control Mode |
PLC Control |
|
Main Power Supply |
380 V, 50 HZ, 3 Phase |
|
Hydraulic System Pressure |
25 MPa, Working Pressure: 8 – 12 MPa |
|
External Dimensions of Line |
Approx. 5000 MM × 700 MM × 1200 MM (L × W × H) |
Main features

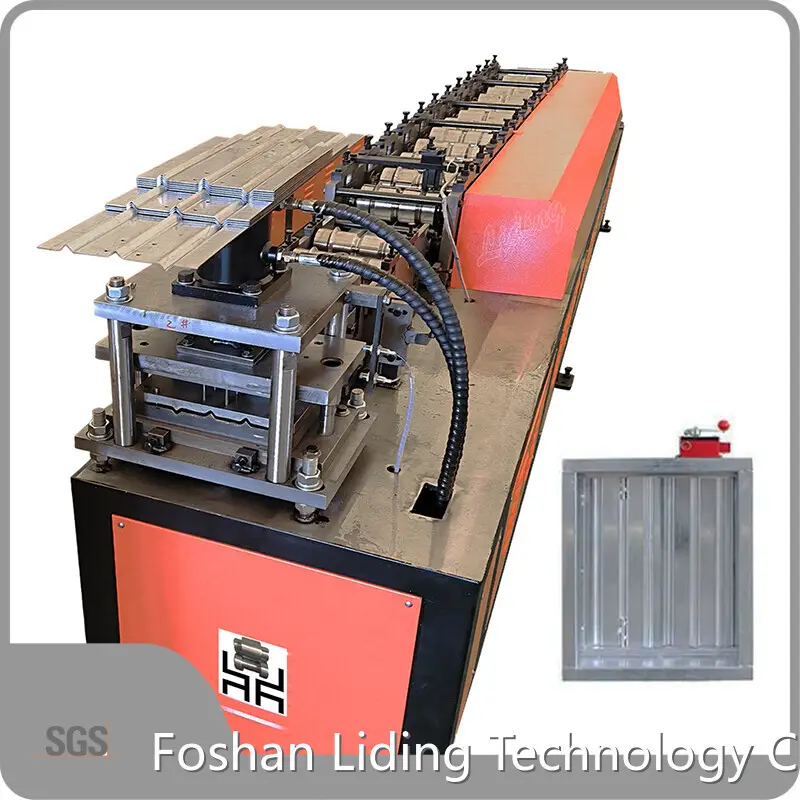

Fire Damper Blade Forming Machine is mainly composed of manual decoiler, forming machine, cutting & punching tools, electrical control system and hydraulic control system, widely used for the mass production of fire damper blade.
The whole line is controlled by Japanese Panasonic PLC, operator can set to run the line automatically and monitor the control process.
Workflow
Fire Damper Blade Machine Production Process:
Decoiling → Roll Forming → Straightening, Reshaping → Cutting To Length (Punching) → Manual Discharging.
Technical Parameters
|
Item |
Quantity |
|
Manual Decoiler |
1 Unit |
|
Forming Machine |
1 Unit |
|
Cutting, Punching Tools |
1 Set |
|
Electrical Control System |
1 Set |
|
Hydraulic Control System |
1 Set |
Product display
