New Cold Roll Forming Machine Cold Roll Forming Machine Company
Product details of the cold roll forming machine
Quick Overview
The production of Liding Machine cold roll forming machine conforms to the industrial standards. The functionality of the product is more comprehensive and complete. It has more advantages compared to other competing products.
Product Description
Our cold roll forming machine has the following advantages over similar products.
Main parameters
Electric Decoiler
● Bore diameter 460~520mm.
● Material width 200mm
● Load weight 1000kg
● Quantity: One.
● Manual Expansion
● Powerless transmission,with brake.

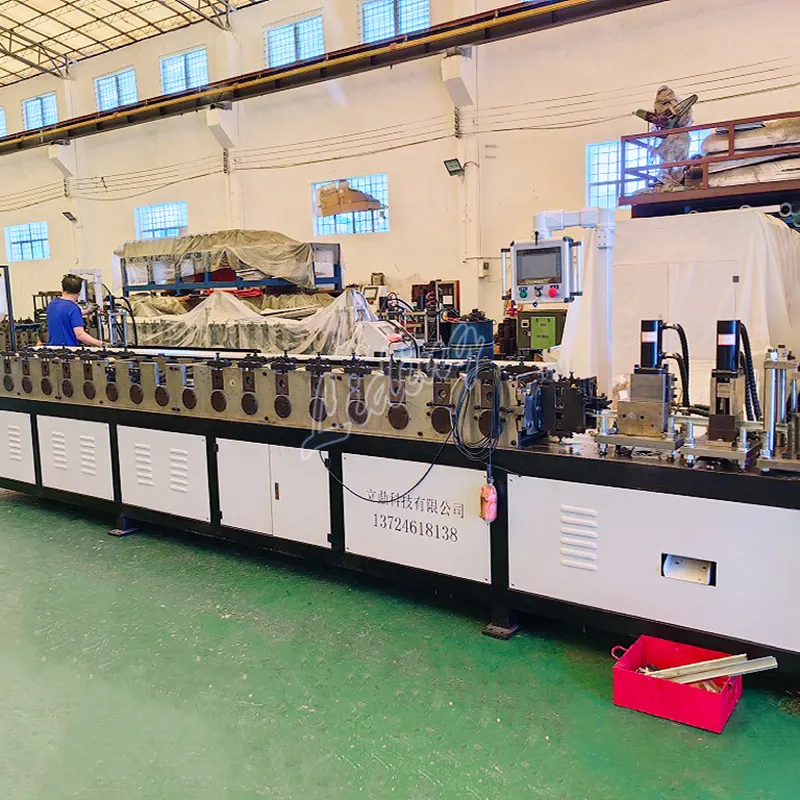

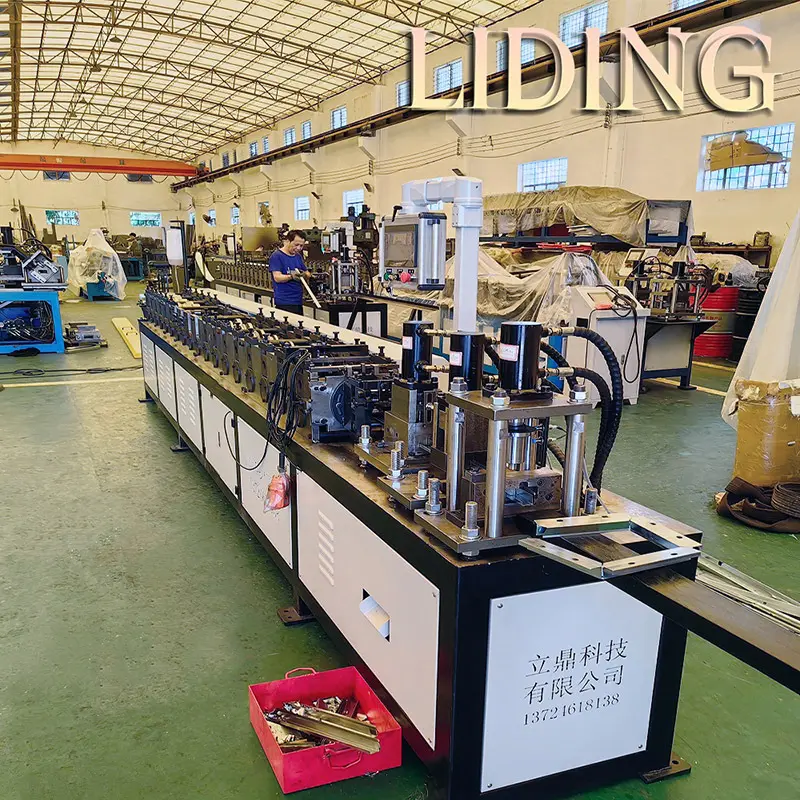

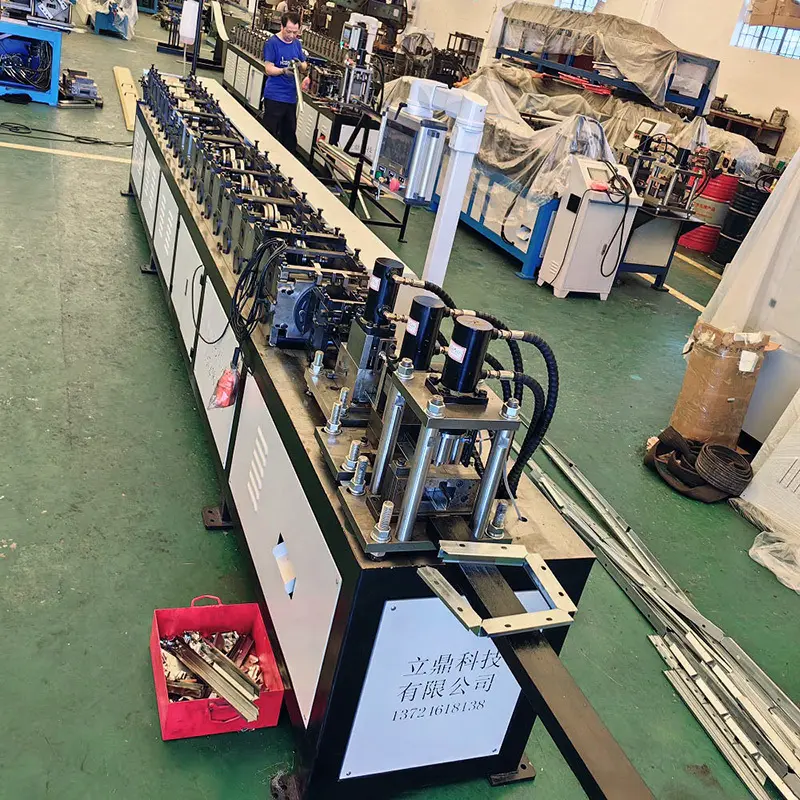

Forming machine
● Applicable materials: Cold or galvanized sheet metal
● Material thickness: 0.4-0.6mm
● Main motor power: 4kw(servo motor)
● Molding speed: 3-6m/min
● Number of molding groups: 18 groups+5 groups for straightening
● Shaft diameter and material: ¢ 42mm, 45# steel
● Great wall type plywood: plate thickness 35mm
● Transmission: Chain & gear transmission.
● Control system: PLC control
● Machine net weight: about 4 tons
● Voltage: 380V/ 3phase/ 50 Hz
● Dimensions of molding machine: approx. L*W*H 6m*0.8m*1.2m
● Forming roll material: Cr12MoV
● Punching die, cutting die material: Cr12MoV heat treatment HRC60-62℃.
Basic Configuration
Cutting off parts
● Hydraulic system, hydraulic motor 2.2KW, three stations cylinder
● 1 set of punching molds, 1 set of 90 degree angle cutting molds, 1 set of waste cut-off molds
● Mold material: CR12MOV
● Processing hardness HRC60°-62°.
● Adopting online encoder to detect the stopping and cutting.
Run out table
● Flat length 4 meters
● Flat table structure using square tube angle iron composition.
PLC computer control cabinet
● Voltage: 380 V, 50 Hz, 3Phase
● Panasonic PLC, human-machine interface control, domestic inverter speed control.
● Main electrical parts adopt Schneider and Shihlin products.
● The length of the encoder using the internal control encoder counting length way
● Electronic control box adopts fully sealed ventilation cooling device.
● Control system power supply adopts overload protection.
● Adopt shutdown cut-off mode
Workflow
Decoiling - Roll Forming - Punching round holes - 90 degree notch - cut off - finish

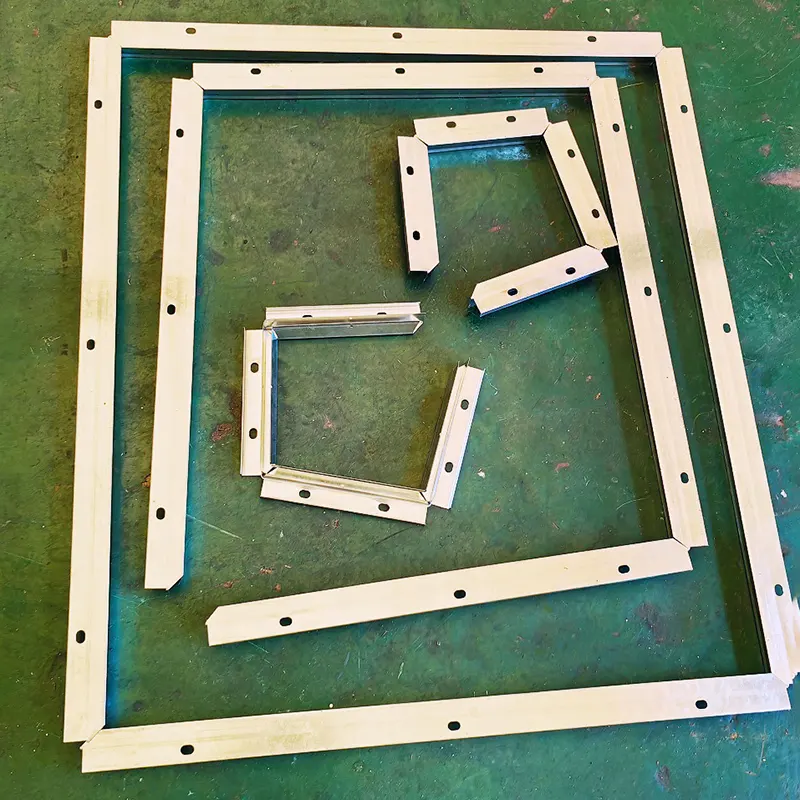

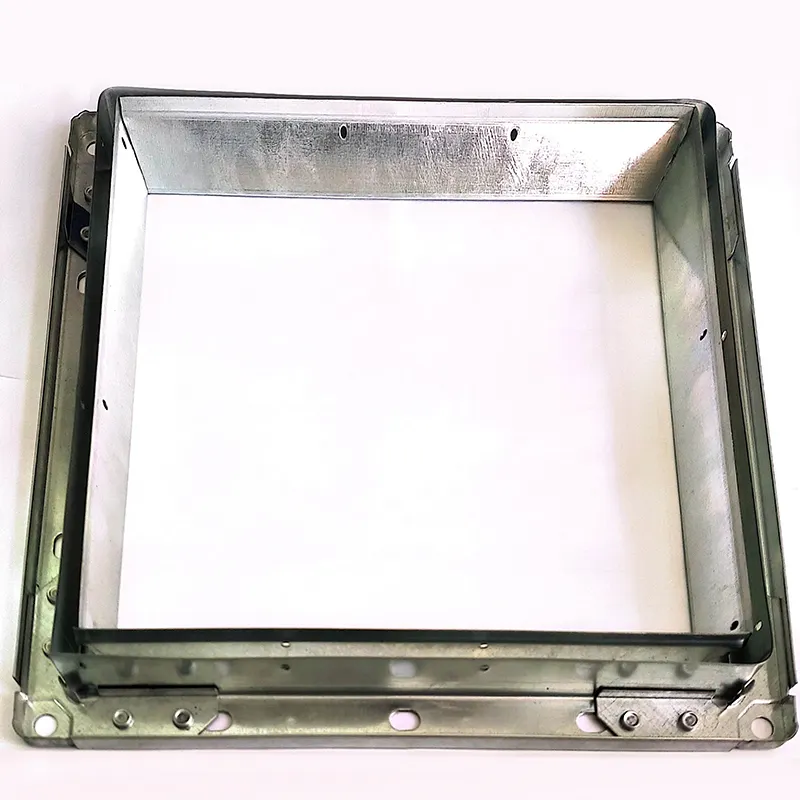

Product display
Company Advantages
佛山市立鼎科技有限公司 is a competitive manufacturer of cold roll forming machine in China. Our experience and expertise make us stand out in the market. We have a large fully equipped manufacturing plant. It has an extensive list of manufacturing machine, making us a qualified manufacturing partner. The service provided by Liding Machine is highly reputable in the market. Get more info!
Look forward to working with you to create a better future.
