Liding Machine Roll Forming Machine Supplier / In many styles
Product details of the roll forming machine supplier
Quick Overview
Liding Machine roll forming machine supplier is produced in fast and accurate flexibility of production methods. Liding Machine has built a strict quality control system to ensure its quality. Seeing from the growing sales, the product has a rather promising application potential.
Product Introduction
Our roll forming machine supplier has a certain share in the market because of the following characteristics.
Main features
Forming machine
● Applicable materials: Cold or galvanized sheet metal
● Material thickness:Blade1.0mm；Blade type 1\2\3 0.5mm
● The forming rolls of the two products are installed side by side on the same frame to produce two specifications of profiles respectively.
● Blade type 1\2\3 is notched before forming.
● The frame is welded with 100*80 pipe.
● Rolling roller 10 sets
● Rolling roller material GCr15 steel
● Rolling roller heat treatment HRC55°~57°.
● Rolling wheel bearing diameter 42mm, material 45# steel.
● Rolling roller bearing specification 6207
● Plywood thickness 25㎜
● Transmission method Chain and gear wheel
● Motor power 3 kW, K77
● Forming speed 6 m/min
Composition of the machine
● Manual Decoiler ,1 set
● Forming main machines (Internal and external )，1 set
● Hydraulic system Mold,1 set
● Electric control device (touch screen, inverter, PLC, etc.)
Cutting off parts
● With a set of hydraulic system device
● With Blade cut off mold 1 set, Blade type 1\2\3 cut off mold, 2 sets (replacement)
● Motor power 2.2kw
● Adopt cylinder control cutting method
● Cutting off by stopping the machine
Run out table
● Flat length 1 meters
● Flat table structure using square tube angle iron composition.
PLC computer control cabinet
● Voltage: 380 V, 50 Hz, 3Phase
● Adopt Panasonic PLC, human-machine interface control and domestic inverter for speed regulation.
● Main electrical parts adopt Schneider and Shihlin products.
● The length of the encoder using the internal control encoder counting length of the way
● Electronic control box adopts fully sealed ventilation and cooling device.
● Control box using fully sealed ventilation cooling device
● Control system power supply using overload protection, electronic control frame using aviation plug connection
● Stopping cut-off mode
Workflow
Decoiling -Punching- Cold Roll Forming - Cutting - Unloading - Finishing

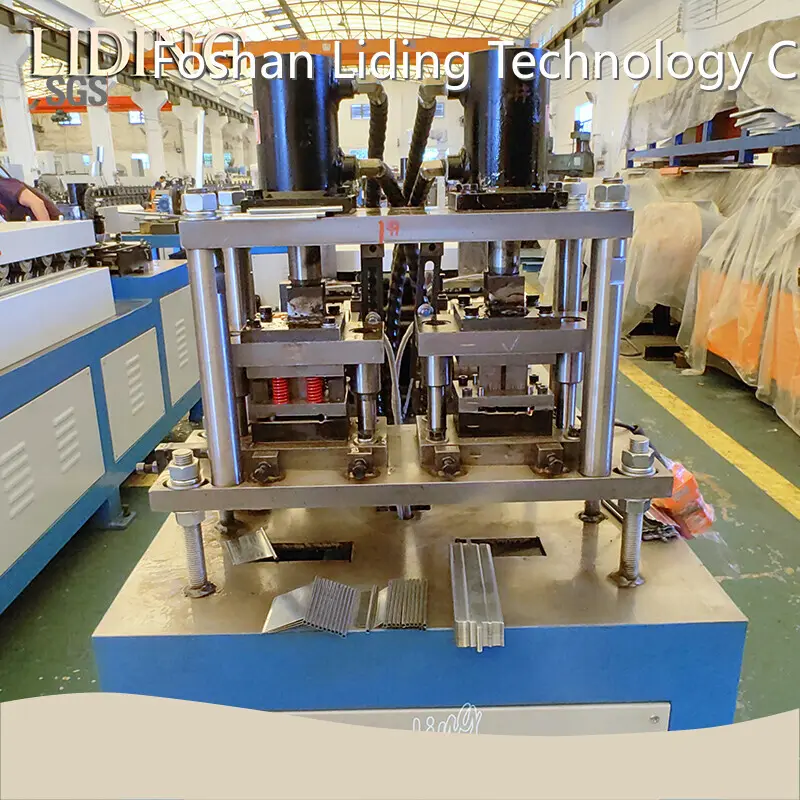

Product display
Company Introduction
佛山市立鼎科技有限公司 is located in fo shan, and the main business product is Air Duct flange Roll forming machine,Fire damper production line,HAVC Air duct line,C/U/Z purlin forming machine,Storage Shelf roll forming machines. Foshan Liding Technology Co.,ltd attaches great importance to quality and sincere service. We provide one-stop services covering from pre-sales to in-sales and after sales. If you would like to purchase our products, please contact us as soon as possible.
