Quick Overview
Customized for sale is offered by Liding Machine. The implementation of the complete quality management system greatly guarantee that the product is manufactured according to the international quality standards. The product is utilized in various applications and has received lots of appreciation from our customers.
Product Description
Our for sale is more competitive than similar products, as shown in the following aspects.
Profile
Workflow
Decoiling - Cold Roll Forming - Cutting - Finishing
Composition of the machine
● Decoiler,1 ton
● Forming machine,18 groups
● Hydraulic cut-off mold,3 set
● Run out table,1 set
● PLC control cabinet,1 set
Basic Configuration
I. Electric Decoiler
● Bore diameter 460~520mm.
● Material width 200mm
● Load weight 1000kg
● Quantity: One.
● Manual Expansion
● No power transmission,with brakes.

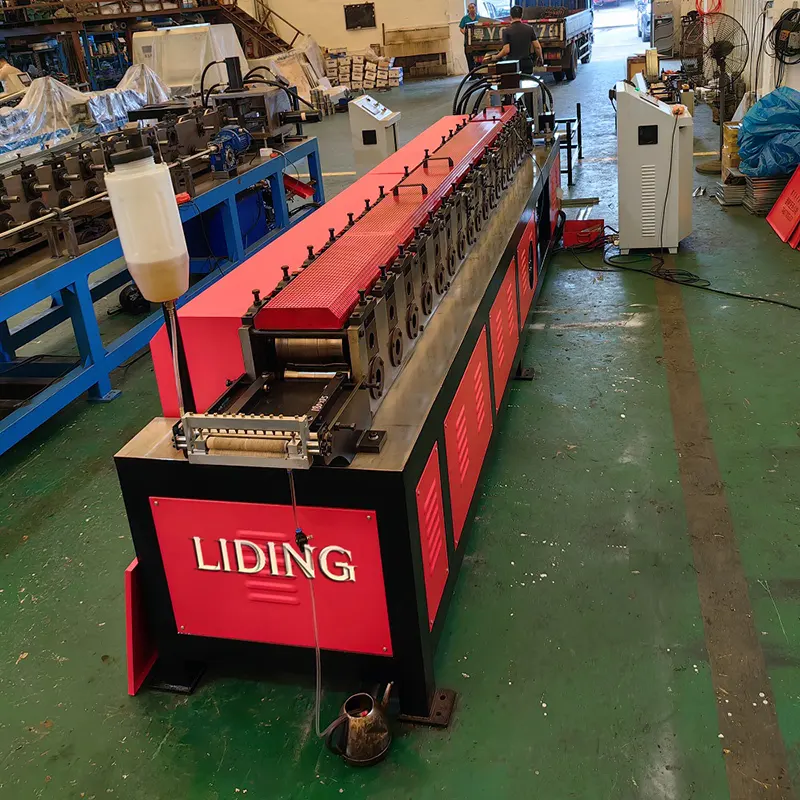

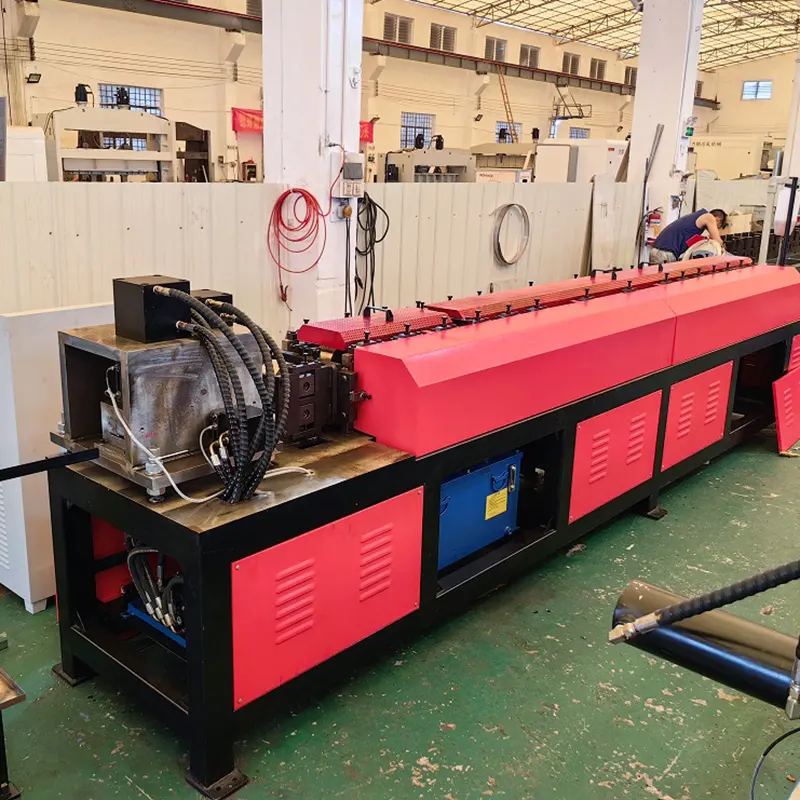

II. Forming machine(5)
● Applicable materials:Galvanized sheet metal
● Material thickness: 1.5mm
● Main motor power: 11kw
● Molding speed: 1-3m/min
● Number of molding groups: 18 groups+5 groups straightening
● Shaft diameter and material: ¢ 48mm, 45# steel
● Great wall type plywood: plate thickness 30mm
● Transmission: Chain & gear transmission.
● Control system: PLC control
● Machine net weight: about 3 tons
● Voltage: 380V/ 3phase/ 50 Hz
● Dimensions of molding machine: approx. L*W*H 6m*0.8m*1.2m
● Forming roll material: Cr12MoV
● Punching die, cutting die material: Cr12MoV heat treatment HRC60-62℃.
Basic Configuration

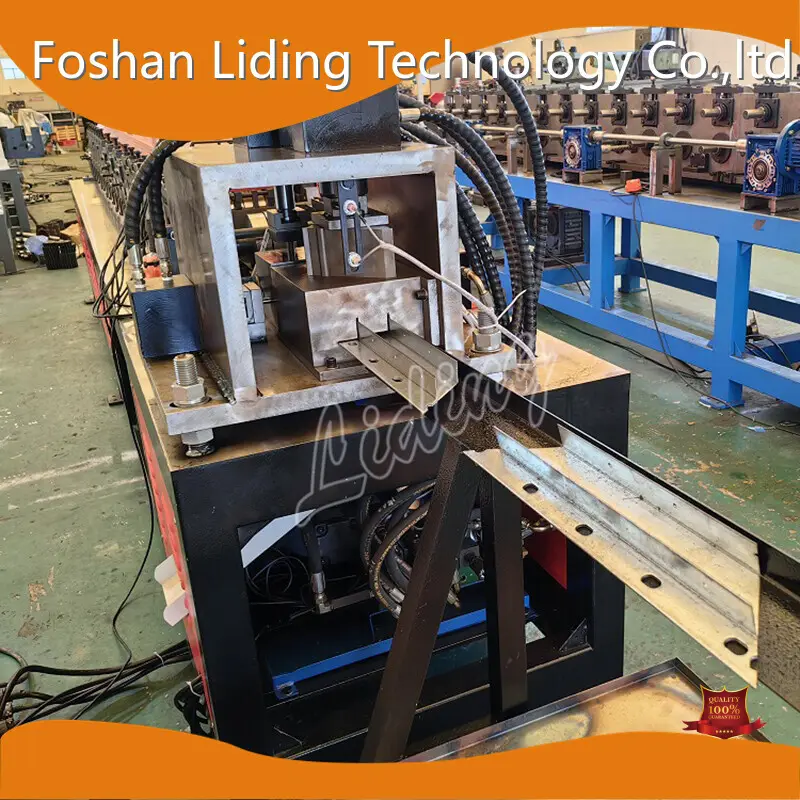

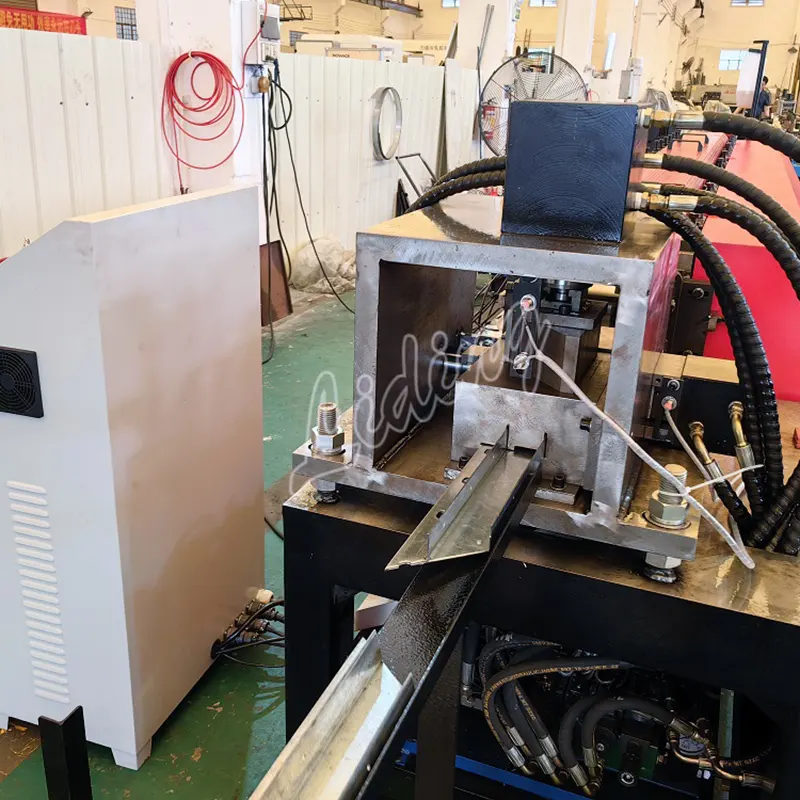

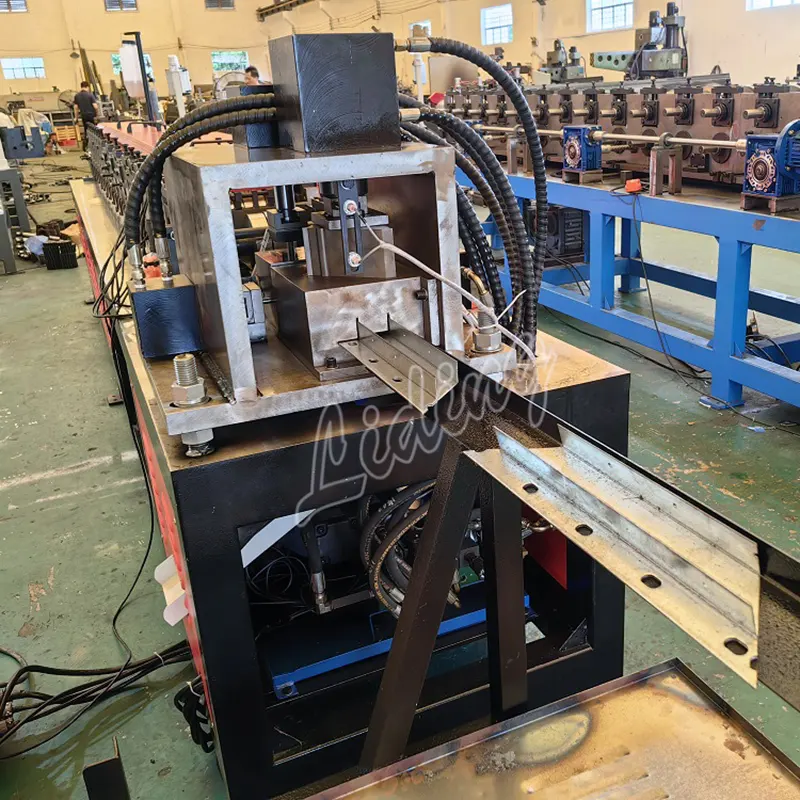

V. Cutting off parts(1)
● With a set of hydraulic system device
● Hydraulic motor 7.5KW, one station oil cylinder

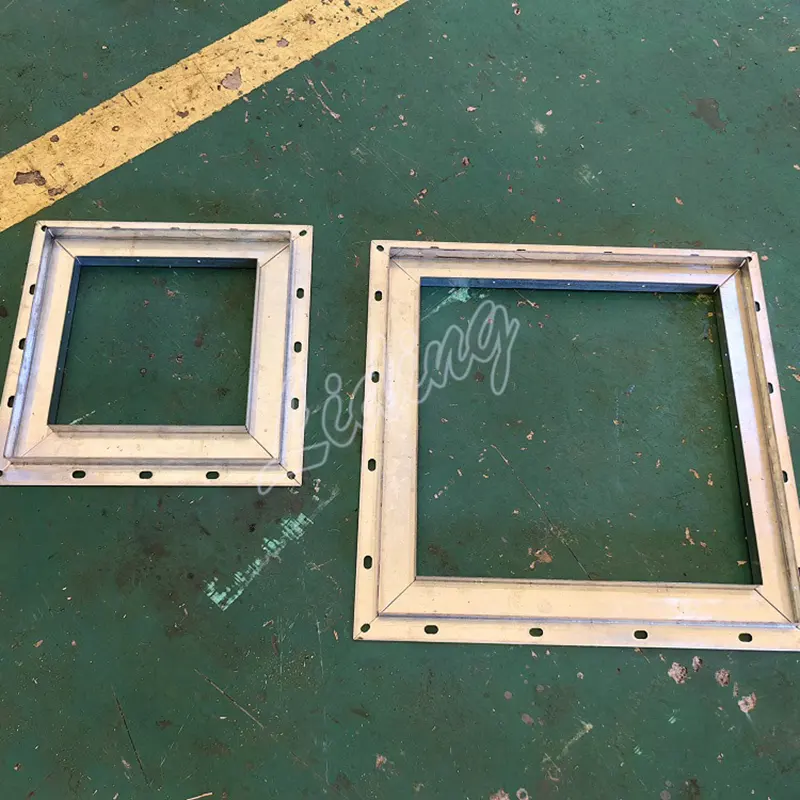

● With 1 set of flange hole molds, 2 sets of spigot hole molds, 1 set of 45-degree cut-off molds
● Mold material: CR12MOV
● Processing hardness HRC60°-62°.
● Adopt online encoder to detect the stopping and cutting.
VI. Run out table
● Flat length 1 meters
● Flat table structure using square tube angle iron composition.
Basic Configuration
VII. PLC computer control cabinet(3)
● Voltage: 380 V, 50 Hz, 3Phase
● Panasonic PLC, human-machine interface control, domestic inverter speed control.
● Main electrical parts adopt Schneider and Shihlin products.
● The length of the encoder using the internal control encoder counting method
● Electronic control box adopts fully sealed ventilation cooling device.
● Control system power supply using overload protection, electronic control frame using aviation plug connection
● Stopping cut-off mode
Product display
