Hvac Duct Making Machine Bulk Buy Liding Machine
Main parameters

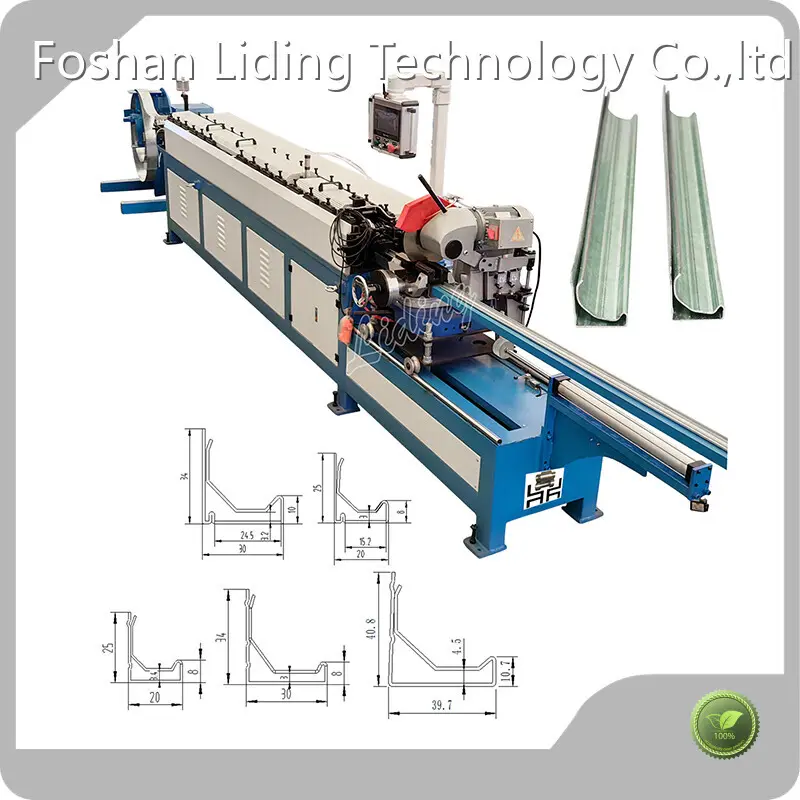

tdc flange forming machine details
① Feeding material: aluzinc/galvanized steel/colored steel coil or as customer request
② Feeding Thickness : 0.8-1.0mm
③ Productivity: 6-8m/min
④ hydraulic pump station power:2.2kw
⑤ Cutting blade: heat treatment hardness HRC60°-62°
⑥ Forming machine size: approx. L*W*H 7m*0.8m*1.2m
⑦ Machine net weight: approx. 2.5 tons
⑧ Machine table：welded with 100*80 square tube
⑨ Side plate thickness:25mm
⑩ Main motor power:4kw
⑪ Rolling stages:15stages+ 5 rollers for straightening
⑫ Shaft diameter : ￠42mm
⑬ Shaft material：45# steel，quenched and finely ground outer circle
⑭ main bearing material :6207
⑮ Roller material: GCr15 steel
⑯ Control systerm: PLC control system with touch screen
⑰ Roller driven type：Chain and gear transmission
⑱ Voltage: 380V/ 3phase/ 50 Hz
Producing process
Decoiling → Feeding → Roll forming →Circular steel sawing-off →Run-out table
Product display
Company Advantages
· Our strong supplier relationships allow us to source the highest quality materials to manufacture Liding Machine hvac duct making machine.
· Our experienced quality inspectors have carefully tested the product in all respects, such as its performance, durability, and so on, in accordance with the international standards.
· 佛山市立鼎科技有限公司 has formulated a strict quality control system and the operation flow.
Company Features
· As an outstanding representative of the domestic hvac duct making machine industry, 佛山市立鼎科技有限公司 has served customers for decades of years.
· The technical capability of 佛山市立鼎科技有限公司 is highly recognized by hvac duct making machine industry.
· Our mission is to reduce the impact of our activities on the environment. We take steps to reduce CO2 emissions, waste and improve the recycling rate.
Application of the Product
hvac duct making machine can be applied to different industries, fields and scenarios.
Foshan Liding Technology Co.,ltd always adheres to the service concept of 'meeting customer needs'. And we are committed to providing customers with a one-stop solution that is timely, efficient and economical.
