Product details of the rolling shutter roll forming machine
Product Specification
Condition: New
Electric Control system: Fully Automatic PLC(imported Brand),transducer, touch panel
Product name: hydraulic rolling shutter forming machine
Machinery Test Report: Provided
Product Description
Liding Machine rolling shutter roll forming machine is well developed using modern machinery and production technology. The product is durable and functions very well during its long service life. 佛山市立鼎科技有限公司 is proud of its longstanding leadership in innovation and quality.
Products Description

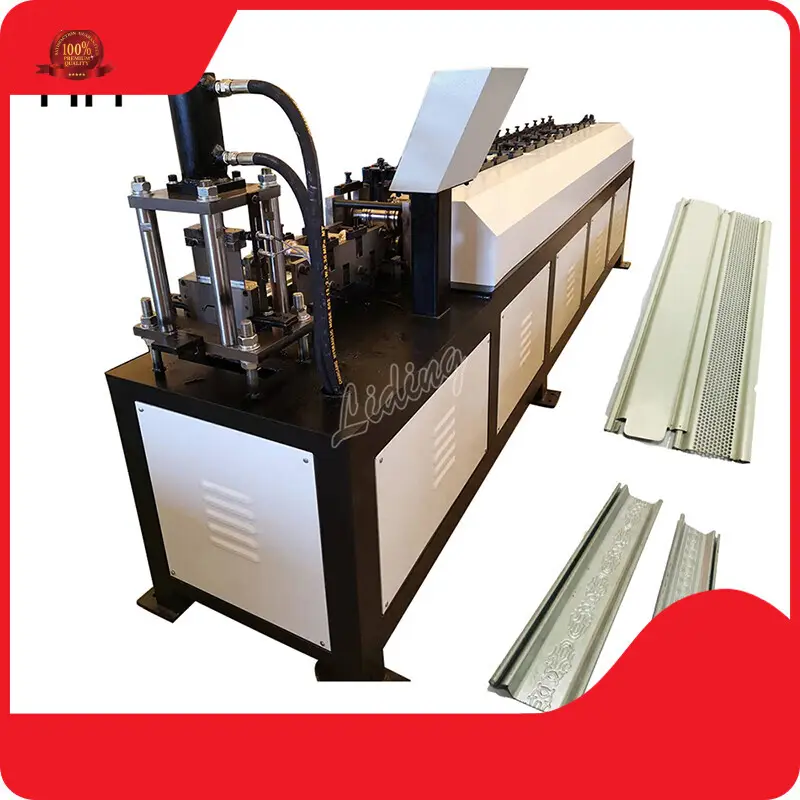

Automatic shutter profile roll forming machine/shutter door tiles forming machinery
The finished product of High Quality Roller Shutter Door Roll Forming Machine, Door Roll Forming Machine Rolling Slats is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
Main Features:
High quality, fashionable styles, durable use, reasonable and realistic price and can roll more kinds of other shutter door patterns.
Product Specifications
Automatic shutter profile roll forming machine details:
● Feeding material: galvanized steel/colored steel coil/or as customer request
● Feeding Thickness :0.5-0.8mm
● Rolling stages:15stages
● Productivity: 6-10m/min
● Total power: 6 kw machine motor
● Cutting blade: Cr12 with heat treatment
● Main motor power:4kw
● Hydraulic pump station power:2.2kw
● Side plate thickness:25mm
● Roller material: GCr15 steel
● Control systerm:Panasonic PLC control system with touch screen
● Roller driven type：Geared transmission
● Power supply:380v,3phase,50hz
|
No
|
Item
|
Data
|
|
1
|
Decoiler
|
1000kgs
|
|
2
|
Roll Forming Machine
|
15stages
|
|
3
|
Hydraulic cutting
|
Cr12
|
|
4
|
Run Out Table
|
4 m
|
|
5
|
PLC controling
|
Panasonic PLC control system with touch screen
|
Producing process
Decoiling → Feeding &Roll forming&Straightening →Hydraulic cutting-off →Run-out table
Other shutter profile
There are many kinds of forming machines for doors and windows, which are widely used in the production of rolling gate, garage door, guide rail, window rail, guide Groove, etc. . feeding, forming, and shearing is all at once.
Product display
Company Advantage
• Our company has a strong customer service team to offer customers pre-sales, on-purchase and after-sales services.
• We have our own team of professionals who use the industry experience accumulated over the years to guide the practice process and provide a guarantee for the production of high quality products.
• Since the establishment in our company has been focusing on product development and technological innovation. After years of hard work, we enjoy high brand reputation and influence within the industry.
• Our products have been exported to many foreign countries. They have occupied a certain proportion of the local market.
Foshan Liding Technology Co.,ltd has promotion within a limit time. We provide more discounts for larger-quantity orders!
