Products Description

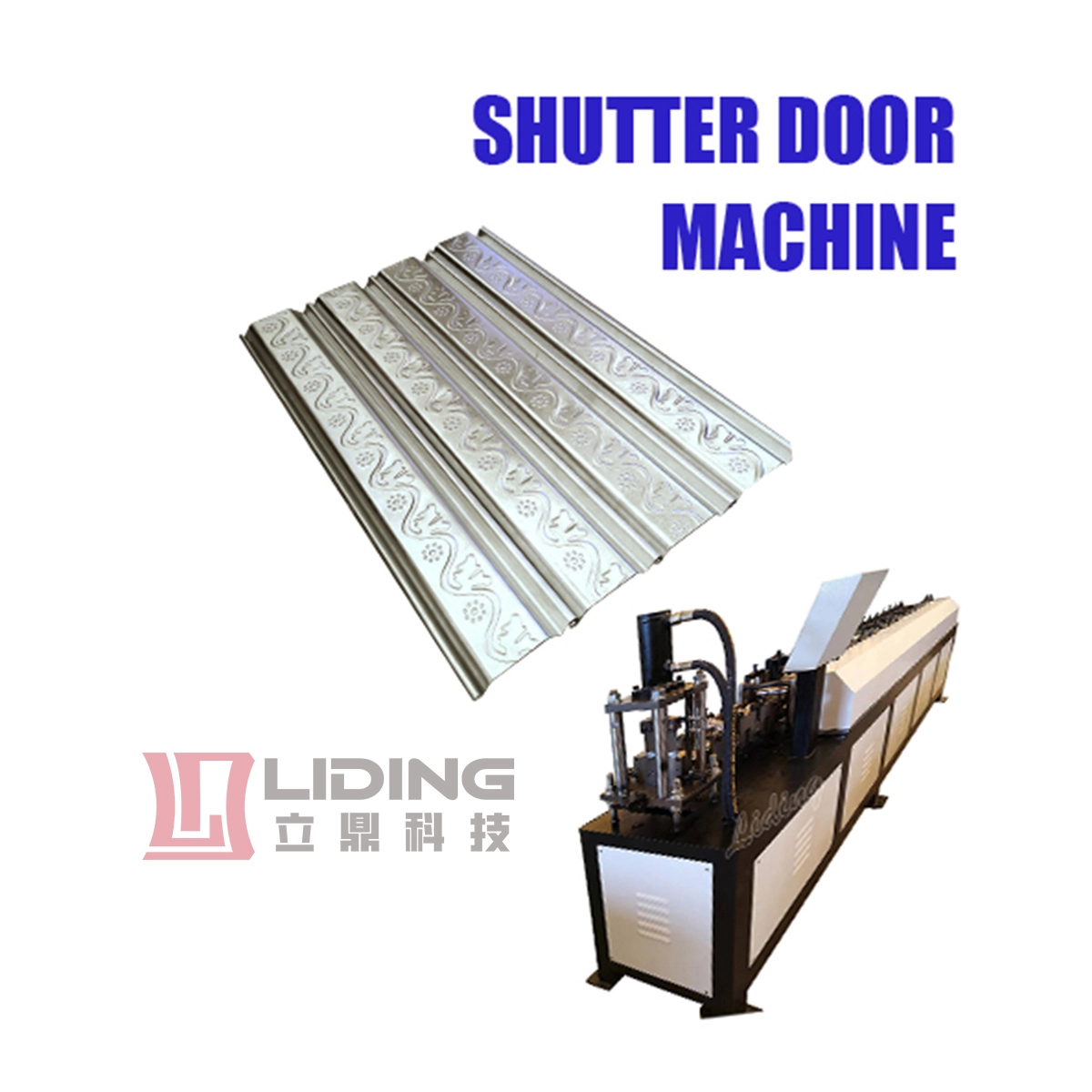

Automatic shutter profile roll forming machine/shutter door tiles forming machinery
The finished product of High Quality Roller Shutter Door Roll Forming Machine, Door Roll Forming Machine Rolling Slats is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
Main Features:
High quality, fashionable styles, durable use, reasonable and realistic price and can roll more kinds of other shutter door patterns.
Product Specifications
Automatic shutter profile roll forming machine details:
● Feeding material: galvanized steel/colored steel coil/or as customer request
● Feeding Thickness :0.5-0.8mm
● Rolling stages:15stages
● Productivity: 6-10m/min
● Total power: 6 kw machine motor
● Cutting blade: Cr12 with heat treatment
● Main motor power:4kw
● Hydraulic pump station power:2.2kw
● Side plate thickness:25mm
● Roller material: GCr15 steel
● Control systerm:Panasonic PLC control system with touch screen
● Roller driven type：Geared transmission
● Power supply:380v,3phase,50hz
|
No
|
Item
|
Data
|
|
1
|
Decoiler
|
1000kgs
|
|
2
|
Roll Forming Machine
|
15stages
|
|
3
|
Hydraulic cutting
|
Cr12
|
|
4
|
Run Out Table
|
4 m
|
|
5
|
PLC controling
|
Panasonic PLC control system with touch screen
|
Producing process
Decoiling → Feeding &Roll forming&Straightening →Hydraulic cutting-off →Run-out table
Other shutter profile
There are many kinds of forming machines for doors and windows, which are widely used in the production of rolling gate, garage door, guide rail, window rail, guide Groove, etc. . feeding, forming, and shearing is all at once.
Product display
