High End Roll Forming Machine for Sale Quality Assurance for Factory
Product details of the roll forming machine for sale
Product Introduction
Liding Machine roll forming machine for sale adopts a number of techniques to satisfy production requirements. The product has survived the rigorous quality and durability testings. roll forming machine for sale's export has brought the rich profit repayment for the company.

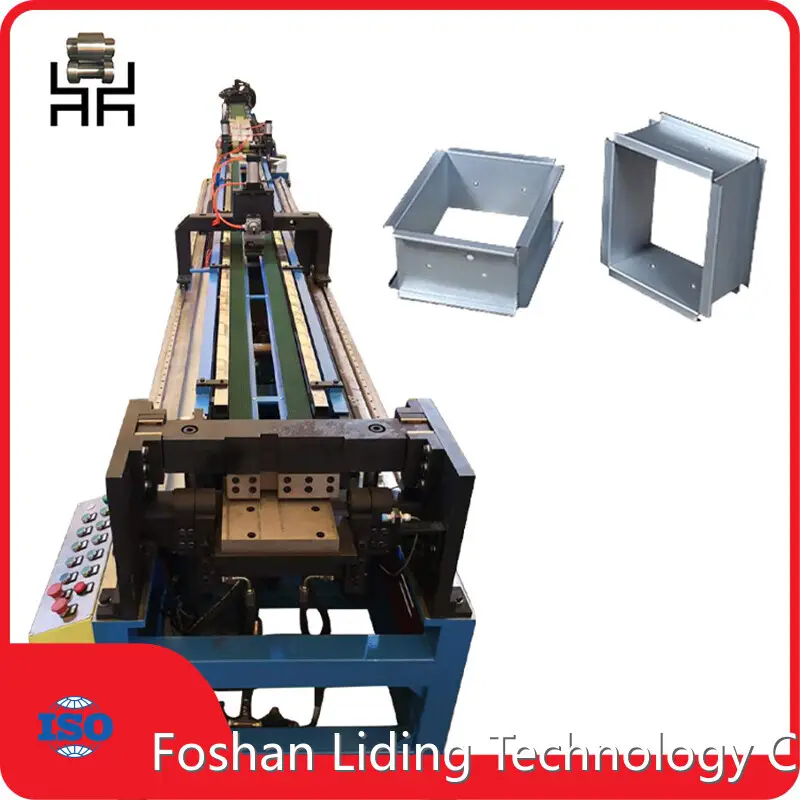

Fire Damper Frame Production Line Main Technical Parameters
|
Item |
Parameters |
|
Material |
Galvanized Sheet |
|
Material Thickness |
1.5 - 2.0 MM |
|
Width of Coil |
According to Customer's Requirement |
|
Weight of Coil |
≤ 3000 KGS |
|
Forming Speed |
1 – 15 M/Min, Adjustable |
|
Plate Length Error |
± 0.3 MM / 1000 MM |
|
Punching Hole Distance Error |
± 0.3 MM / 1000 MM |
|
Bending Error of Frame |
± 1.0 MM / 1000 MM |
|
Processing Flange |
TDF 35 MM |
|
Processing Mode |
Decoiling / Single Piece / Mouth Type / L Type / U Type |
|
Control Mode |
PLC Control |
|
Main Power Supply |
380 V, 50 HZ, 3 Phase |
|
Hydraulic System Pressure |
25 MPa, Working Pressure: 8 – 12 MPa |
|
External Dimensions of Line |
About 15000 * 1000 * 1200 MM (L*W*H) |
|
Total Power of Line |
About 26 KW |
|
Line Weight |
13800 KGS |
|
Production Efficiency |
350 - 400 Frames / 8 Hours |
Main features
Fire Damper Frame Roll Forming Machine Main Features:
1. Fast speed: save labor, can produce 300 – 400 frame 8 hours per shift by only 1-2 people.
2. High precision: hole distance error ± 0.3 mm, length error ± 0.3 mm, diagonal error ± 1 mm.
3. Save material: the process design of cutting first and then forming ensures the whole process from debugging to production without waste.
4. High efficiency: continuous order mode, customers can input multiple order data at one time for continuous production.
5. Good forming effect: specially designed rollers to ensure less abrasion to zinc layer after galvanized sheet is formed.
6. Small bending R: specially designed bending tool as well as pre-punching indentation at the small edge, two processes to ensure that the bending angle is small.
7. Good stability: electrical components adopt international and domestic top brands, the main mechanical parts through careful design and fatigue test, to ensure the stable production of production line in high-intensity and high-load working environment.
8. Simple operation: the whole line is automatic, assembly line production, computer controlled and easy to learn.
9. Cover a small area: the total length of the line is only 15 meters.
Workflow
Automatic Fire Damper Frame Roll Forming Machine Production Process:
Decoiling → Material Guiding → Leveling → Edges Punching → Spindle Hole Punching (∅ 16 mm) → Temperature-Sensing Hole Punching (∅ 20 mm) → Hydraulic Cutting Off → Conveying → TDF Roll Forming → Hydraulic Automatic Bending → Manual Discharging.
Damper outer frame roll forming Machine Compositions
|
Item |
Quantity |
|
Manual Decoiler |
1 Unit |
|
Leveling – Punching – Cutting Machine |
1 Unit |
|
Conveyor |
1 Unit |
|
TDF Roll Forming Machine |
1 Unit |
|
Hydraulic Bending System |
1 Set |
|
PLC Control System |
1 Set |
|
Hydraulic System |
2 Sets |
Product display
