for Sale for Industrial Gearfactory
Product details of the for sale
Product Specification
Core Components: PLC, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
After-sales Service Provided: Engineers available to service machinery overseas
Showroom Location: None
Profile design: custom
Electric Control system: Fully Automatic PLC(imported Brand),transducer, touch panel
Product Information
Liding Machine for sale is guaranteed for safety by a team of professionals. For better durability and endurance, our professional engineers successfully developed for sale with high quality. 佛山市立鼎科技有限公司 extensively implements the quality control system.
Products Description
Fireproof Metal Steel shelf Door Frame Making Machine cold roll forming machine：The biggest advantage of the door frame forming machine lies in continuous non-stop operation, high-speedproduction, and unified product standards, because the plate type of the door frame is more complex, the traditionabending machine processing is time-consuming and laborious, more dependent on manual, resulting in higproduction cost. Cold forming machine solves this problem, making the door frame processing become simple, hasbeen recognized by a number of well-known enterprises in the market.
Product Specifications
Upright Window Metal Steel shelf Door Frame Making Machine cold roll forming machine details:
● Feeding material: aluzinc/galvanized steel/colored steel coil/or as customer request
● Material thickness: 0-1.2mm
● Main motor power: 5kw
● Number of molding groups: 22 groups+ 5 groups Straighten
● Cutting blade: Cr12MoV with heat treatment
● Main frame:steel plate welding
● Side plate thickness:30mm
● Shaft diameter and material: ￠48mm, 45# steel with quenched and finely ground
● Control systerm: PLC control system with touch screen
● Roller driven type：Chain & gear transmission
Producing process
Decoiling → Roll forming →Punching & Cutting→Run-out table
|
No
|
Item
|
Date
|
|
1
|
Manual Decoiler
|
2 ton
|
|
2
|
Roll Forming Machine
|
1 set
|
|
3
|
Right Punching Mold
|
1 Set
|
|
4
|
Left Punching Mold
|
1 set
|
|
5
|
Straight Cutting Mold
|
1 set
|
|
6
|
Run Out Table
|
2 m
|
|
7
|
PLC controller
|
PLC control system with touch screen
|
Details Images
25 years of production experience to provide customers with solutions

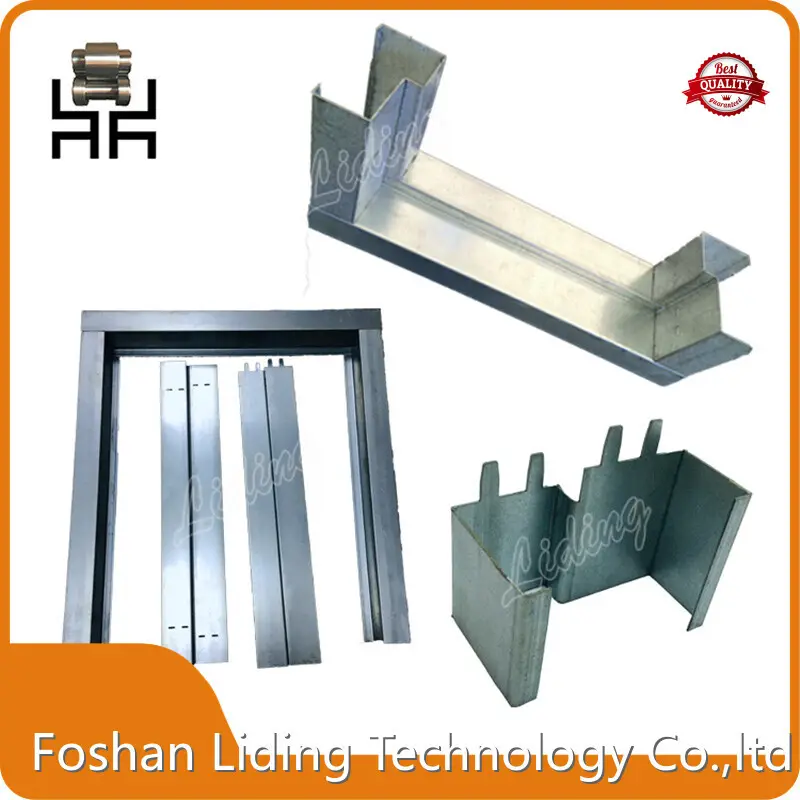

Product display
Company Feature
• Foshan Liding Technology Co.,ltd runs an excellent, complete and effective sales and technical system. We strive to provide efficient services covering from pre-sales, in-sales, and after-sales, so as to meet customers' needs.
• Founded in Foshan Liding Technology Co.,ltd has developed into a leading model enterprise in the industry after years of hard work and innovation.
• Our company has a high-quality management team, excellent R & D team, intimate service team, and also set up a professional distribution team. All this provides a good guarantee for our product development, sales services, transportation and distribution.
• The natural resources around Foshan Liding Technology Co.,ltd are abundant. The geographical condition is excellent which brings developed information and traffic convenience.
If you would like to partner with Foshan Liding Technology Co.,ltd, please leave your contact information. We will get back to you as soon as possible!
