Product details of the cold roll forming machine
Product Introduction
Every material that is used in the production of Liding Machine cold roll forming machine is non-toxic, completely safe. Third-party test data of the product reflects its eligibility. 'To provide quality services to merchants' is the purpose of Liding Machine.
Fire Damper Frame Production Line Main Technical Parameters
|
Item |
Parameters |
|
Material |
Galvanized Sheet |
|
Material Thickness |
1.5 - 2.0 MM |
|
Width of Coil |
According to Customer's Requirement |
|
Weight of Coil |
≤ 3000 KGS |
|
Forming Speed |
1 – 15 M/Min, Adjustable |
|
Plate Length Error |
± 0.3 MM / 1000 MM |
|
Punching Hole Distance Error |
± 0.3 MM / 1000 MM |
|
Bending Error of Frame |
± 1.0 MM / 1000 MM |
|
Processing Flange |
TDF 35 MM |
|
Processing Mode |
Decoiling / Single Piece / Mouth Type / L Type / U Type |
|
Control Mode |
PLC Control |
|
Main Power Supply |
380 V, 50 HZ, 3 Phase |
|
Hydraulic System Pressure |
25 MPa, Working Pressure: 8 – 12 MPa |
|
External Dimensions of Line |
About 15000 * 1000 * 1200 MM (L*W*H) |
|
Total Power of Line |
About 26 KW |
|
Line Weight |
13800 KGS |
|
Production Efficiency |
350 - 400 Frames / 8 Hours |
Main features
Fire Damper Frame Roll Forming Machine Main Features:
1. Fast speed: save labor, can produce 300 – 400 frame 8 hours per shift by only 1-2 people.
2. High precision: hole distance error ± 0.3 mm, length error ± 0.3 mm, diagonal error ± 1 mm.
3. Save material: the process design of cutting first and then forming ensures the whole process from debugging to production without waste.
4. High efficiency: continuous order mode, customers can input multiple order data at one time for continuous production.
5. Good forming effect: specially designed rollers to ensure less abrasion to zinc layer after galvanized sheet is formed.
6. Small bending R: specially designed bending tool as well as pre-punching indentation at the small edge, two processes to ensure that the bending angle is small.
7. Good stability: electrical components adopt international and domestic top brands, the main mechanical parts through careful design and fatigue test, to ensure the stable production of production line in high-intensity and high-load working environment.
8. Simple operation: the whole line is automatic, assembly line production, computer controlled and easy to learn.
9. Cover a small area: the total length of the line is only 15 meters.
Workflow
Automatic Fire Damper Frame Roll Forming Machine Production Process:
Decoiling → Material Guiding → Leveling → Edges Punching → Spindle Hole Punching (∅ 16 mm) → Temperature-Sensing Hole Punching (∅ 20 mm) → Hydraulic Cutting Off → Conveying → TDF Roll Forming → Hydraulic Automatic Bending → Manual Discharging.
Damper outer frame roll forming Machine Compositions
|
Item |
Quantity |
|
Manual Decoiler |
1 Unit |
|
Leveling – Punching – Cutting Machine |
1 Unit |
|
Conveyor |
1 Unit |
|
TDF Roll Forming Machine |
1 Unit |
|
Hydraulic Bending System |
1 Set |
|
PLC Control System |
1 Set |
|
Hydraulic System |
2 Sets |

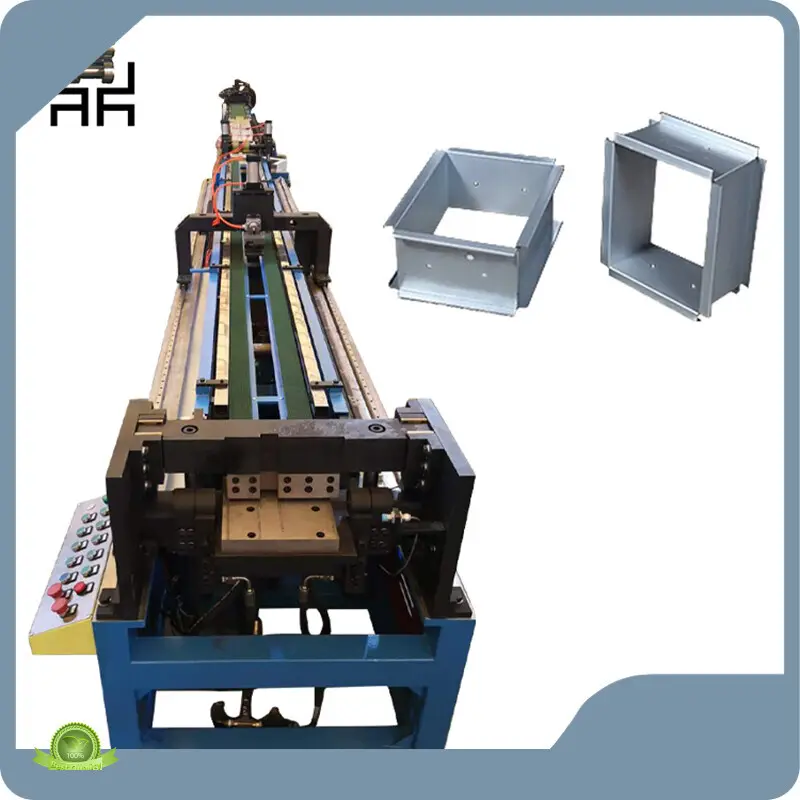

Product display
