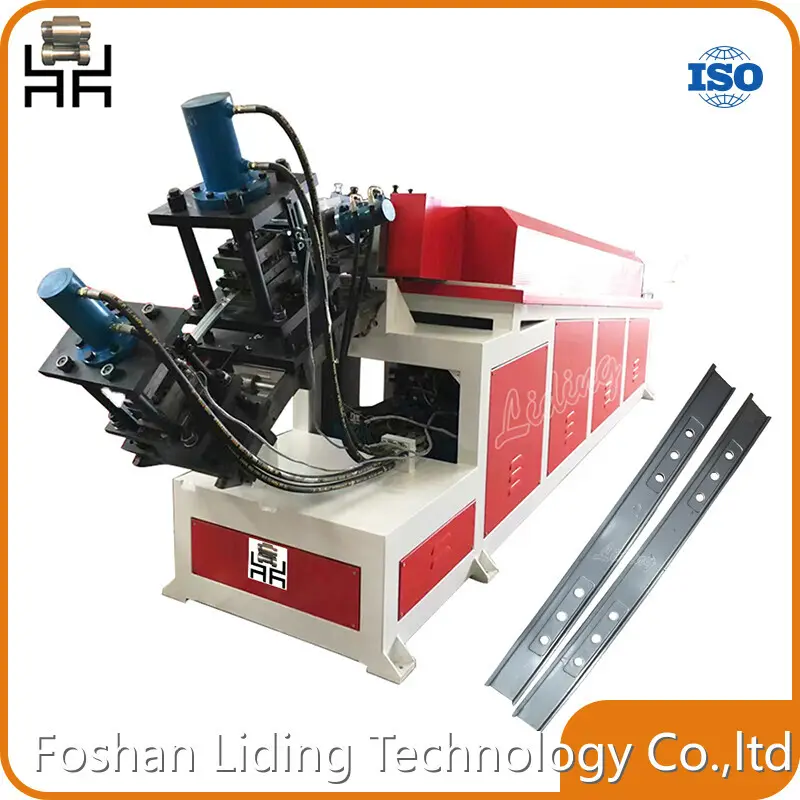

Product details of the z purlin machine
Product Description
Stressing the importance of design of z purlin machine turns out to be a right way. The product not only has passed the domestic quality standards but also has been approved by many international certificates. 佛山市立鼎科技有限公司 can help you solve the problems with our accomplished technical resources and advanced equipment.
Composition of the machine
|
Configure |
Technical Parameters |
|
|
Electrical Decoiler |
Load capacity 1 ton |
|
|
Roll forming machine |
Main Machine frame |
Side board is made of 45#40mm steel plate |
|
Forming section |
14 groups rollers,Cr12mov steel, HRC up to 58~60º. |
|
|
Full Forming Section |
4 sets of main forming rolls for precision shaping |
|
|
Transmission section |
Reduction gearbox and gear transmission |
|
|
Punching and cutting section |
Composed of platform mold, stretching and cutting composite mold, three-cylinder hydraulic press and length measuring device. Punch material :DC53 |
|
|
Finished product collection box |
Used to take over the processed productions. |
|
|
Cooling circulation system |
The medium is emulsified oil |
|
|
Electric control system Security part |
Protection net, warning signs, manual emergency stop button,etc. |
|
Profile
Application
Workflow
Decoiling →Cold Roll Forming →Hydraulic punching→cutting at fixed length→collecting material
Composition of the machine
|
Item |
|
Technical Parameters |
|
Forming materials |
Material |
Cold Plate Material |
|
Material thickness |
1.0±0.02㎜ |
|
|
Inner diameter of the coil |
Ф460-Ф520 |
|
|
Processing capacity |
Main machine forming speed |
6pcs/min |
|
Processing length |
200-1000mm |
|
|
Processing Quality |
Dimensional accuracy |
±0.2㎜ when L≤500mm; |
|
Straightness; Disturbance; |
L≤500mm, curvature not more than ±0.2㎜; |
|
|
Dimensional requirements of forming section |
According to the drawing |
|
|
Surface quality |
No obvious wrinkles, unevenness, surface galvanizing layer abrasion and other defects |
