Wholesale Elbow Cold Forming Machine Liding Machine Manufacture
Product details of the elbow cold forming machine
Product Information
The development of Liding Machine elbow cold forming machine is considered from the perspective of green design. This product is superior to other products because of its excellent performance, durability and other characteristics. The product has a potential prospect and keeps track with the market development.
Main parameters
Mainframe
① Rolling material Galvanized sheet
② Rolling wheel 18 sets
③ Rolling wheel material GCr15 steel
④ Rolling wheel heat treatment HRC55°~57°
⑤ Rolling wheel spindle diameter 40mm, material 45# steel.
⑥ Rolling wheel bearing specification 45/35*20/6009
⑦ Thickness of plywood 40㎜
⑧ Transmission method Chain and Gear
⑨ Motor power 5.5 kW.
⑩ Forming speed 8m/min.
⑪ Voltage; 380V 50Hz
⑫Control party test: forward reverse stop
Material thickness GDF20 0.6-1.0mm
GDF30 0.8-1.2mm
Product specification: GDF20/GDF30
Product height: 20mm,30mm

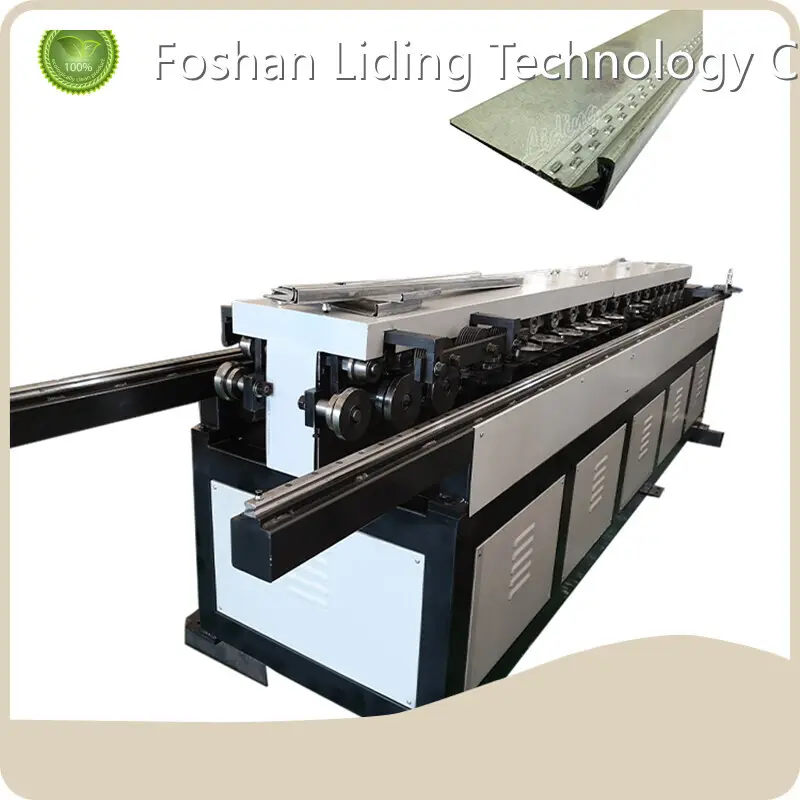

Product display
