Top Tdf Duct Machine for Industrial
Product details of the tdf duct machine
Product Introduction
The structure of Liding Machine tdf duct machine is more compact so as to effectively reduce labor intensity and shorten operating time. The product has been carefully tested to ensure it works properly. Compared with other products, this product has a higher potential value.
Main features
Product specification: GDF20
Product height: 20mm
① Material thickness GDF20 0.6-0.8mm
(The size is subject to customer requirements)
Application: For air duct.
Mainframe
① Rolling material: Galvanized sheet
② Rolling wheel: 26 sets
③ Rolling wheel material: GCr15 steel
④ Rolling wheel: heat treatment HRC55°~57°
⑤ Rolling wheel spindle diameter: 40mm, material 45# steel.
⑥ Rolling wheel bearing specifications: Harbin 6009
⑦ Thickness of plywood: 40㎜
⑧ Transmission method: Chain and vector wheel
⑨ Motor power :7.5 kW.
⑩ Forming speed: 10m/min.
⑪ Voltage:380V 50Hz

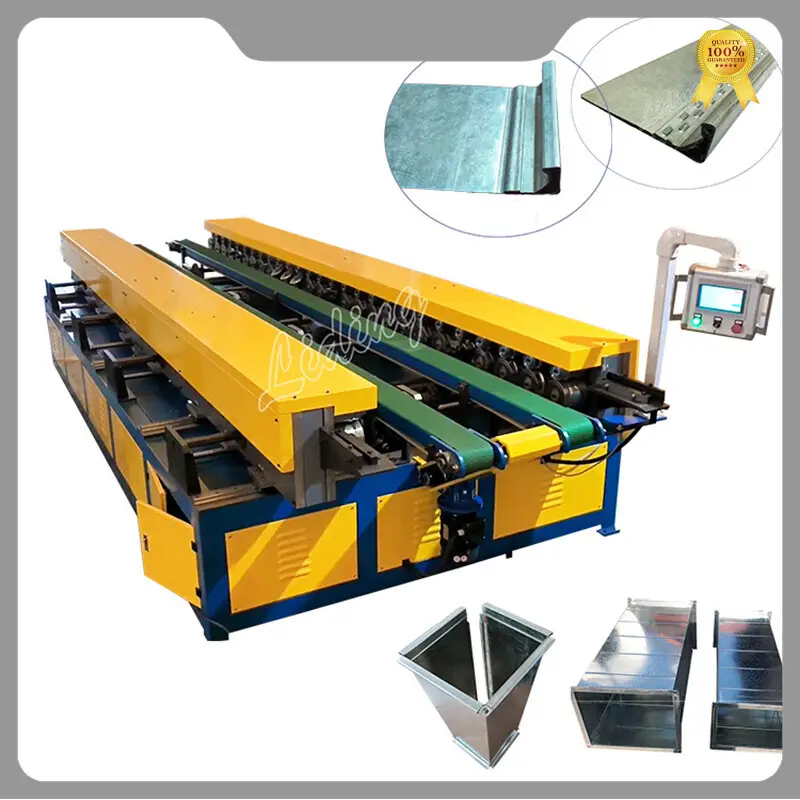

Product display
Company Feature
• Our company has our own scientific research team and technical personnel. They can surely guarantee for our product quality.
• Good location advantages and developed transportation and infrastructure are conducive to long-term development.
• It has already been years since Foshan Liding Technology Co.,ltd was established. During these years, our company has realized the leap-forward development.
• Foshan Liding Technology Co.,ltd's products occupy a certain market share in the country. They are also exported to many foreign countries.
Foshan Liding Technology Co.,ltd's Air Duct flange Roll forming machine,Fire damper production line,HAVC Air duct line,C/U/Z purlin forming machine,Storage Shelf roll forming machines are directly produced and supplied from the factory. They are of favorable price and reliable quality. If you have any needs, you can directly contact us. We sincerely look forward to your call, presence and cooperation.
