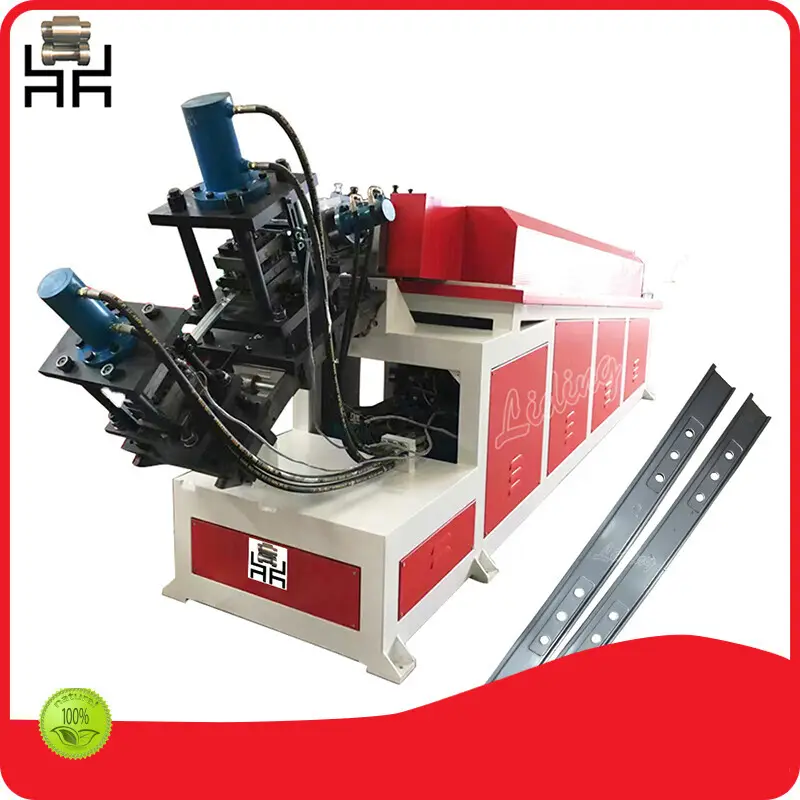

Product details of the elbow cold forming machine
Product Introduction
Liding Machine elbow cold forming machine delivers a stable performance with guaranteed quality. The product is carefully tested by professional QC staff in all respects, including durability, performance, etc. Liding Machine has customers and partners in many countries around the world.
Composition of the machine
|
Configure |
Technical Parameters |
|
|
Electrical Decoiler |
Load capacity 1 ton |
|
|
Roll forming machine |
Main Machine frame |
Side board is made of 45#40mm steel plate |
|
Forming section |
14 groups rollers,Cr12mov steel, HRC up to 58~60º. |
|
|
Full Forming Section |
4 sets of main forming rolls for precision shaping |
|
|
Transmission section |
Reduction gearbox and gear transmission |
|
|
Punching and cutting section |
Composed of platform mold, stretching and cutting composite mold, three-cylinder hydraulic press and length measuring device. Punch material :DC53 |
|
|
Finished product collection box |
Used to take over the processed productions. |
|
|
Cooling circulation system |
The medium is emulsified oil |
|
|
Electric control system Security part |
Protection net, warning signs, manual emergency stop button,etc. |
|
Profile
Application
Workflow
Decoiling →Cold Roll Forming →Hydraulic punching→cutting at fixed length→collecting material
Composition of the machine
|
Item |
|
Technical Parameters |
|
Forming materials |
Material |
Cold Plate Material |
|
Material thickness |
1.0±0.02㎜ |
|
|
Inner diameter of the coil |
Ф460-Ф520 |
|
|
Processing capacity |
Main machine forming speed |
6pcs/min |
|
Processing length |
200-1000mm |
|
|
Processing Quality |
Dimensional accuracy |
±0.2㎜ when L≤500mm; |
|
Straightness; Disturbance; |
L≤500mm, curvature not more than ±0.2㎜; |
|
|
Dimensional requirements of forming section |
According to the drawing |
|
|
Surface quality |
No obvious wrinkles, unevenness, surface galvanizing layer abrasion and other defects |
Product display
