Top Double Layer Roll Forming Machine Price List
Main features
Volume control damper frame Roll Forming Machine Main Features:
1. Fast speed: forming speed of 0-6m/min,can produce 300–400 frame 8 hours per shift by only 1-2 people.
2. High precision: hole distance error ± 0.25 mm, length error ± 0.5 mm, diagonal error ± 0.8 mm.
3. High efficiency: continuous order mode, customers can input multiple order data at one time for continuous production.
4. Good forming effect: specially designed rollers to ensure less abrasion to zinc layer after galvanized sheet is formed.
5. Small bending R: specially designed bending tool as well as pre-punching indentation at the small edge, two processes to ensure that the bending angle is small.
6. Good stability: electrical components adopt international and domestic top brands, the main mechanical parts through careful design and fatigue test, to ensure the stable production of production line in high-intensity and high-load working environment.
7. Simple operation: Computer controlled and easy to learn.
Damper outer frame roll forming Machine Main Technical Parameters
|
Technical parameters and specifications |
|
|
Coil material |
Galvanized Sheet |
|
Material thickness |
1.0-1.6mm |
|
Inner/Outer diameter of coil |
Ф460-Ф520mm/1500mm |
|
Forming speed |
0-6m/min |
|
8, Sheet length error range |
± 0.5mm |
|
Valve body bending error range |
±0.5mm |
|
Control system |
Full computer numerical control |
|
Main power supply |
380V 50Hz 3-phase |
|
Hydraulic pressure Working pressure |
8-12 MPa |
|
system pressure |
16MPa |
|
Pneumatic pressure |
0.6-0.8MPa |
|
Total length of the production line |
About 20 meters |
|
Machine width |
Approx. 1 m |
|
Total power |
About 25KW |
|
Total weight of machinery |
about 8 tons |
Workflow
Damper outer frame forming Producing process:
Decoiling →Servo Feeding& Punching&Cutting → Roll forming →Punching & Cutting→Run-out table

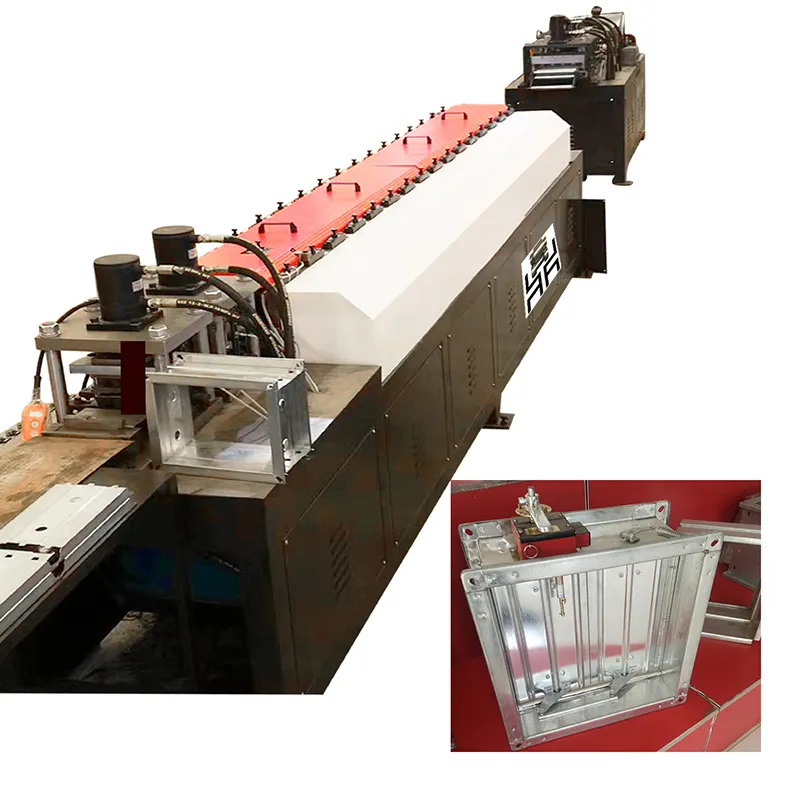

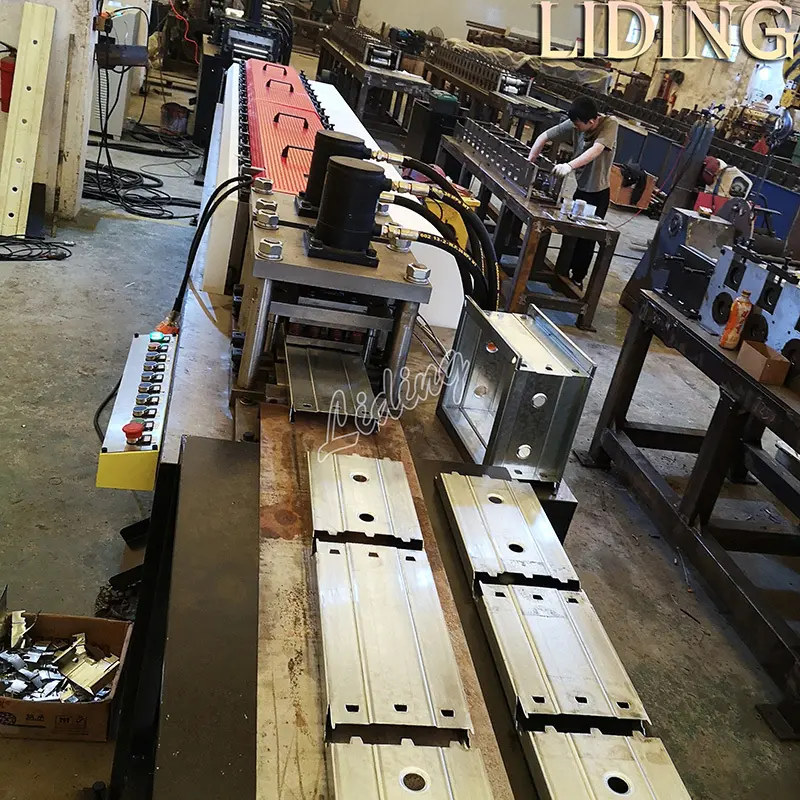

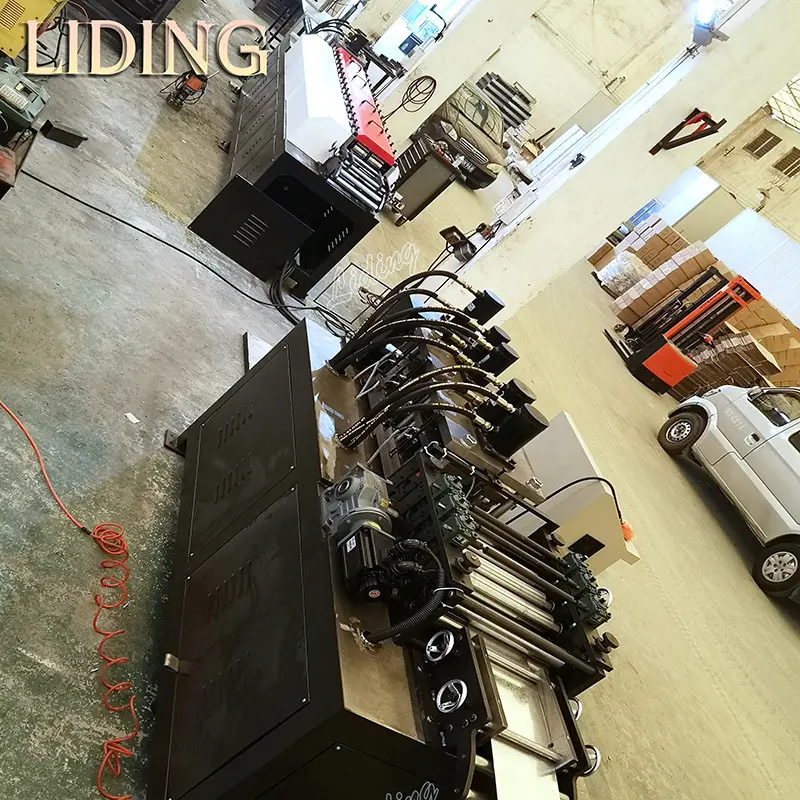

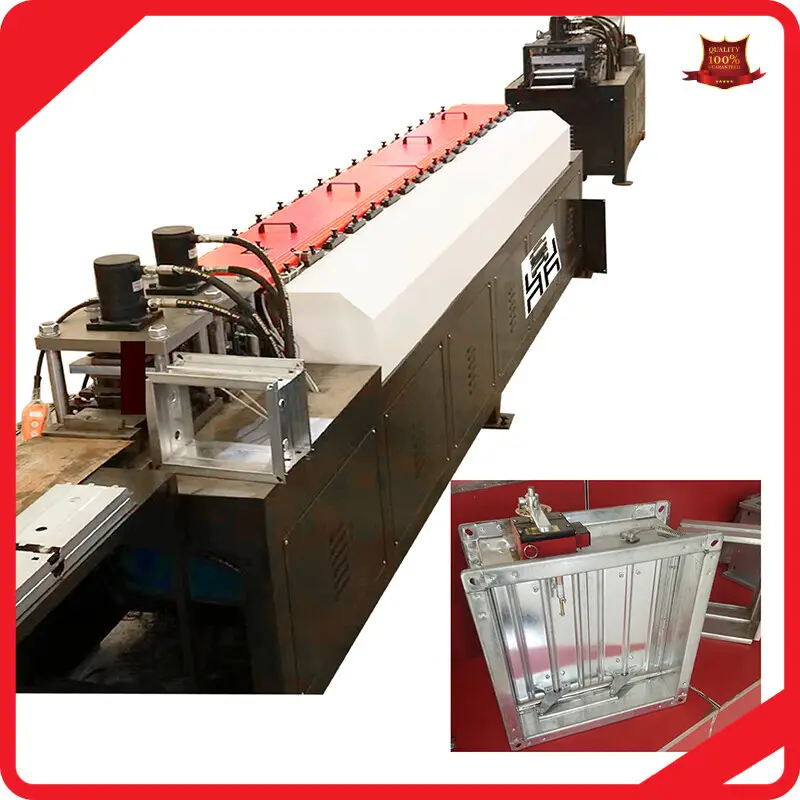

Damper outer frame roll forming Machine Compositions
|
Item |
Date |
|
Decoiler and leveling two-in-one machine |
Load weight 3000kg |
|
NC precision electronic numerical control roller feeding machine |
2KW servo motor |
|
Hydraulic punch&Cutting Modular (3 Stations,with 3 mold) |
Round hole punching molds 1 sets Punching square hole mold 1 set Cutting molds 1 set |
|
Roll Forming Machine |
16 stations, 7.5KW servo motor |
|
Hydraulic punch modular after forming |
2 Stations,with 2 mold |
|
Cutting Modular after forming |
1 Station,with 1 mold |
|
Run Out Table |
4 m |
|
PLC control cabinet |
Famous brand with touch screen |
|
Hydraulic system |
2 set (5.5kw) |

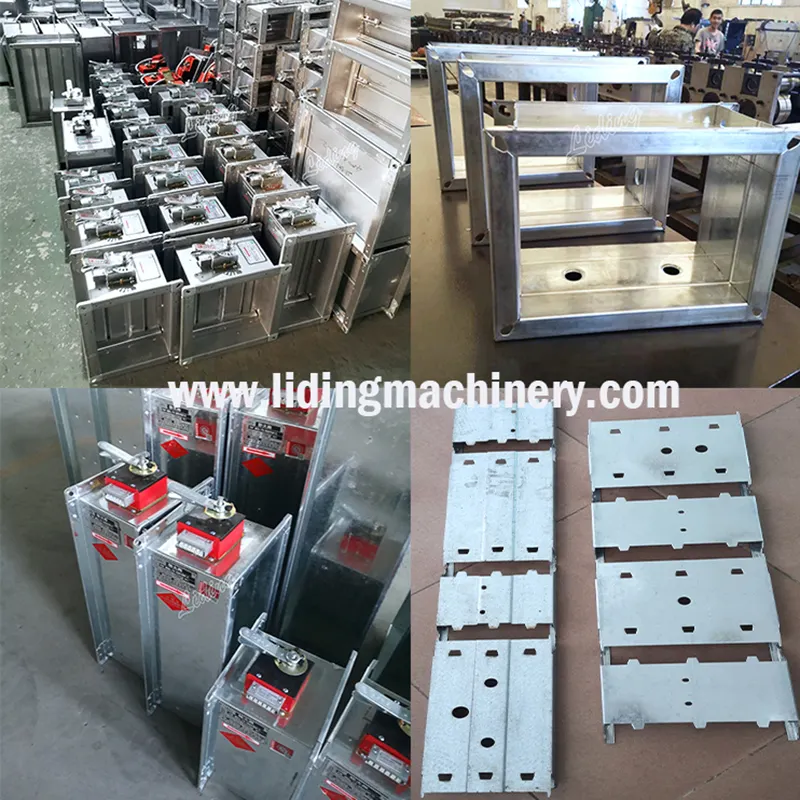

Product display
Company Advantages
· We use double layer roll forming machine material imported from abroad.
· We always pay attention to the industry quality standards, product quality is guaranteed.
· The product is well-received in the global market and enjoys a bright market prospect.
Company Features
· 佛山市立鼎科技有限公司 is a creative enterprise with design, research and development and brand operation as the core.
· Our double layer roll forming machine is easily operated and need no additional tools.
· We advance sustainable manufacturing practices for environmental, manufacturing, and economic benefit. We yield net energy and production waste reductions.
Application of the Product
The double layer roll forming machine developed by Foshan Liding Technology Co.,ltd is widely used in various fields.
We have a professional team and can provide customers with the most appropriate solutions to help customers achieve their goals quickly and effectively.
