Square Pipe Roll Forming Machine Supplier for Sale
Company Advantages
· square pipe roll forming machine's performance is popularly accepted in the country and abroad.
· Strict quality tests are conducted to ensure longevity and cost effectiveness of this offered product.
· 佛山市立鼎科技有限公司 will continue to upgrade its management system and accelerate the process of building the Liding Machine brand.
Main features
Forming machine
● Applicable materials: Cold or galvanized sheet metal
● Material thickness:Blade1.0mm；Blade type 1\2\3 0.5mm
● The forming rolls of the two products are installed side by side on the same frame to produce two specifications of profiles respectively.
● Blade type 1\2\3 is notched before forming.
● The frame is welded with 100*80 pipe.
● Rolling roller 10 sets
● Rolling roller material GCr15 steel
● Rolling roller heat treatment HRC55°~57°.
● Rolling wheel bearing diameter 42mm, material 45# steel.
● Rolling roller bearing specification 6207
● Plywood thickness 25㎜
● Transmission method Chain and gear wheel
● Motor power 3 kW, K77
● Forming speed 6 m/min
Composition of the machine
● Manual Decoiler ,1 set
● Forming main machines (Internal and external )，1 set
● Hydraulic system Mold,1 set
● Electric control device (touch screen, inverter, PLC, etc.)

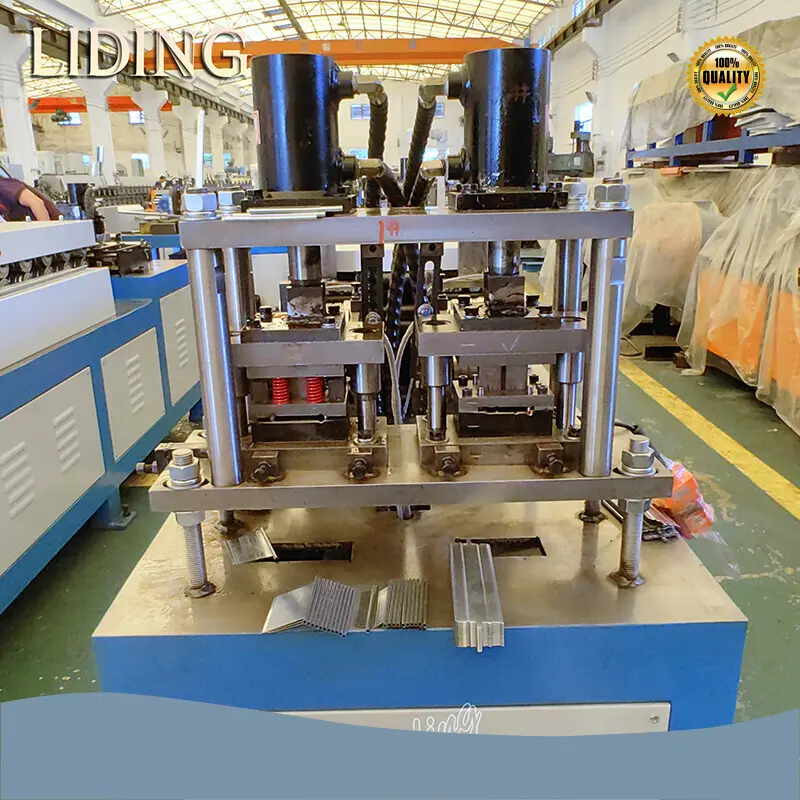

Cutting off parts
● With a set of hydraulic system device
● With Blade cut off mold 1 set, Blade type 1\2\3 cut off mold, 2 sets (replacement)
● Motor power 2.2kw
● Adopt cylinder control cutting method
● Cutting off by stopping the machine
Run out table
● Flat length 1 meters
● Flat table structure using square tube angle iron composition.
PLC computer control cabinet
● Voltage: 380 V, 50 Hz, 3Phase
● Adopt Panasonic PLC, human-machine interface control and domestic inverter for speed regulation.
● Main electrical parts adopt Schneider and Shihlin products.
● The length of the encoder using the internal control encoder counting length of the way
● Electronic control box adopts fully sealed ventilation and cooling device.
● Control box using fully sealed ventilation cooling device
● Control system power supply using overload protection, electronic control frame using aviation plug connection
● Stopping cut-off mode
Workflow
Decoiling -Punching- Cold Roll Forming - Cutting - Unloading - Finishing
Product display
Company Features
· With rich experience in providing square pipe roll forming machine, 佛山市立鼎科技有限公司 is unanimously acknowledged by industry people and customers.
· We have a group of experienced technical personnel and management personnel. Their abundant experience and knowledge in the square pipe roll forming machine industry enable them to give the characteristics of customers' requirements into products. The R&D technicians and designers are notable in the square pipe roll forming machine industry. They help clients customize products to very satisfactory. Over the years, their professionalism has been recognized by customers.
· 佛山市立鼎科技有限公司 wants to be a reliable long-term supplier of square pipe roll forming machine.
Product Details
Foshan Liding Technology Co.,ltd will show you product's specific details below.
