Rack Roll Forming Machine Factory Price
Product details of the rack roll forming machine
Quick Detail
Liding Machine rack roll forming machine is fabricated from optimum raw material supplied from top-grade vendors. The QC team carries out a strict test at every stage to ensure its quality. Foshan Liding Technology Co.,ltd's rack roll forming machine can be widely used in various fields. 佛山市立鼎科技有限公司 has established an excellent enterprise sample in rack roll forming machine field with pain-sticking efforts.
Product Information
Foshan Liding Technology Co.,ltd's rack roll forming machine is perfect in every detail.
Composition of the machine
● Electric Decoiler,1 set
● Leveling Machine,1 set
● Feeding punching machine,1 set
● Roll rolling machine&Cutting mold,1 set
● Transition belt line,1 set
● Front and rear end bending machine,1 set
● Pneumatic system,1 set
● Electric control system,1 set
Basic Configuration

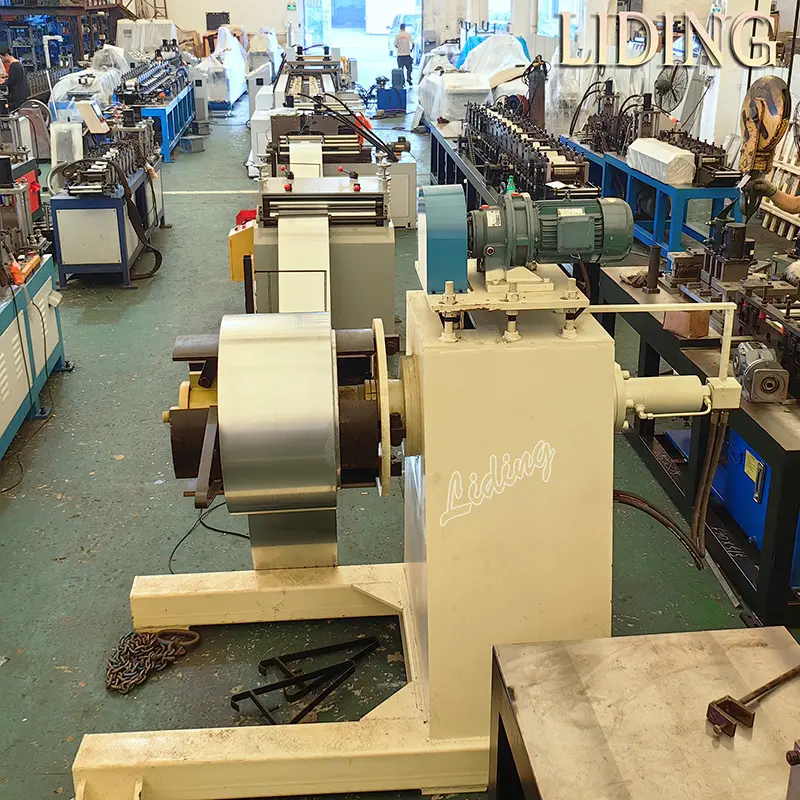

Electric Decoiler
● Max. width 600mm
● Motor power:3kw
● Maximum load capacity 5 tons
● Inner hole diameter 450*520mm
● Max. diameter 1300mm

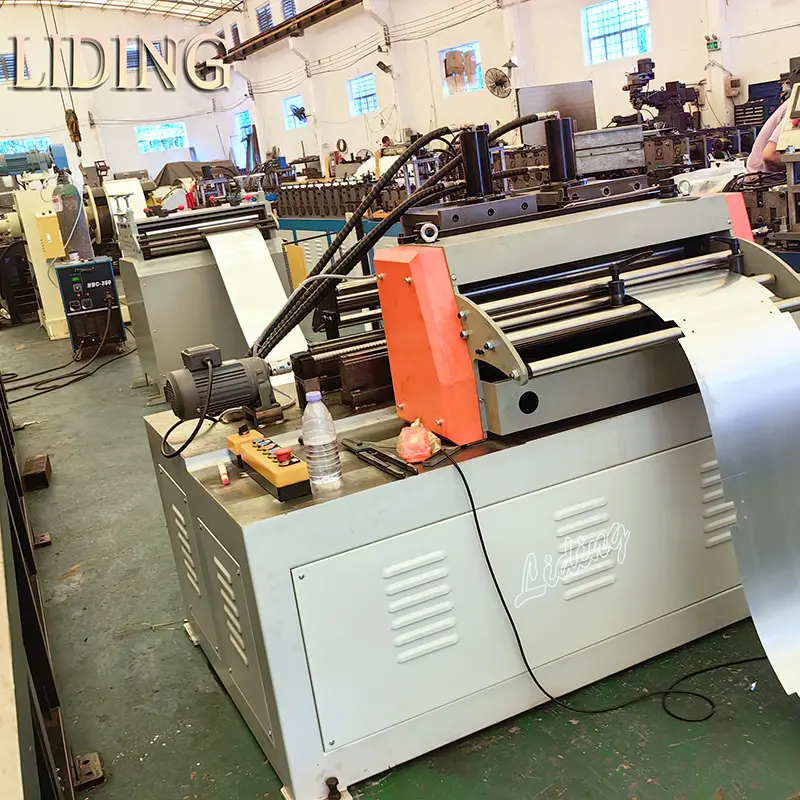

Leveling machine
● Host structure: overall profile 100*80 steel plate welding
● Servo drive motor: 1.5KW servo motor
● Motor speed control: servo drive control
Feeding punching machine
● Length measurement control: closed loop feedback
● Roll material: 45# steel quenched, finely ground, chrome plated
● Roll diameter :φ75mmΧ600mm
● Die material: Cr12MOV
● Number of dies: 2 sets (2 sets of punching round holes and square ports)
● Number of cylinders: 2 7. Punching angle device type: hydraulic control
Basic Configuration

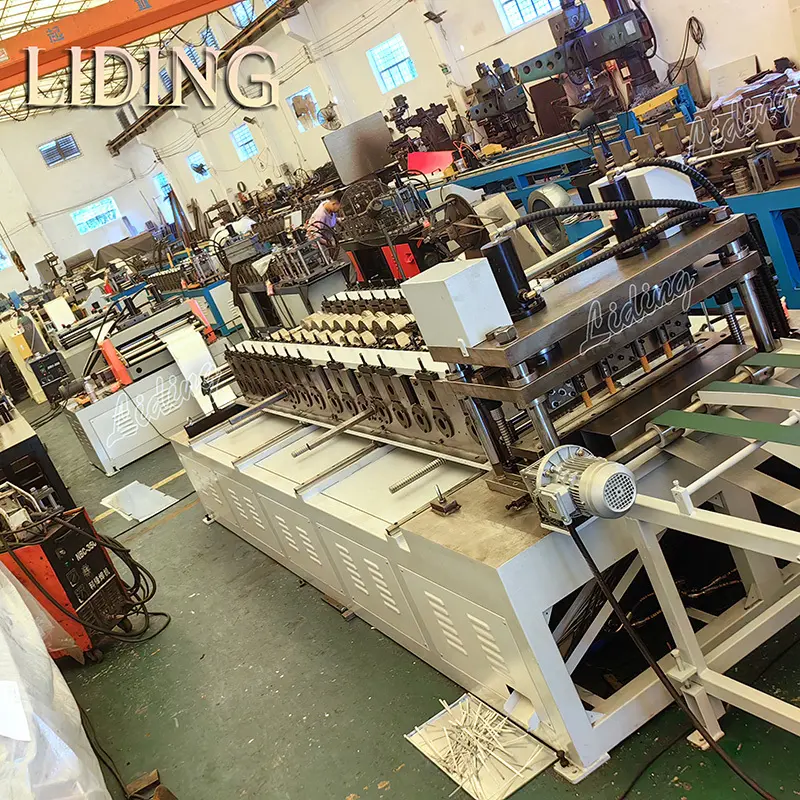

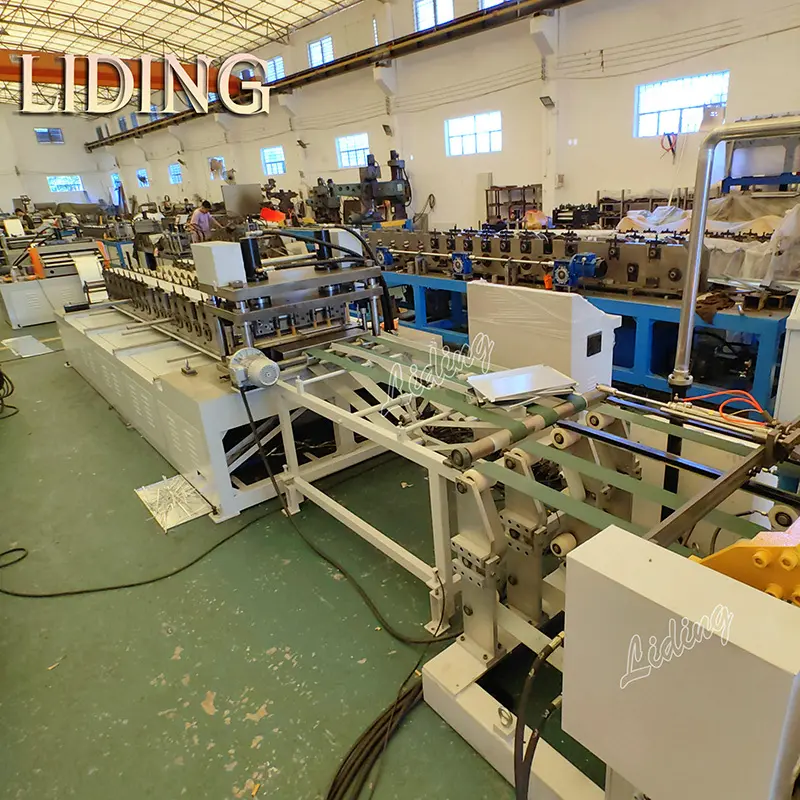

Forming machine
● Number of roller groups: 16 pairs of forming wheels
● Width is automatically adjusted by servo system
● Rolling wheel using GCr15 quenching up to HRC58-60

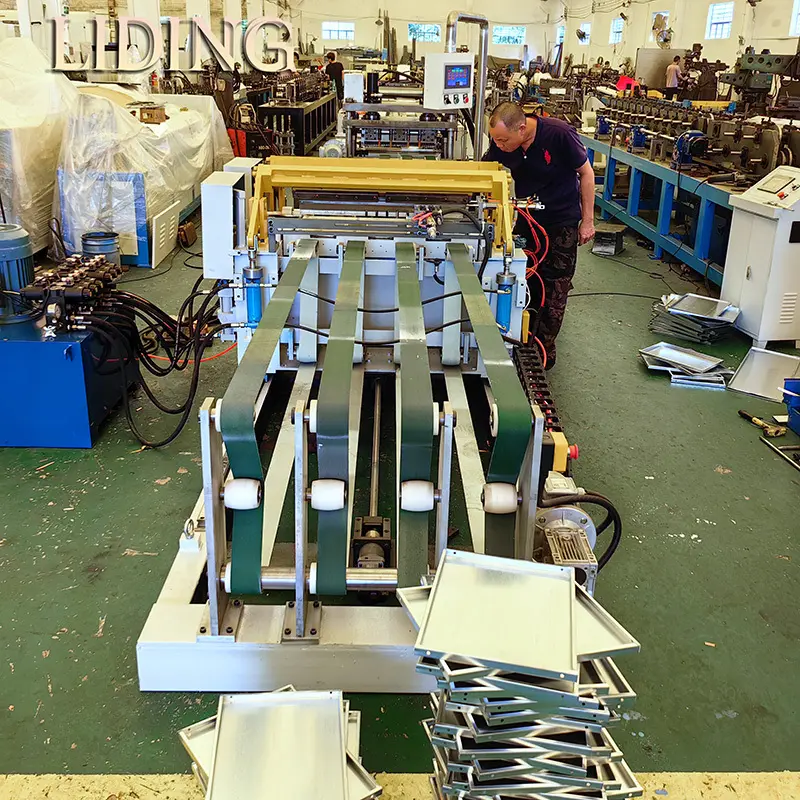

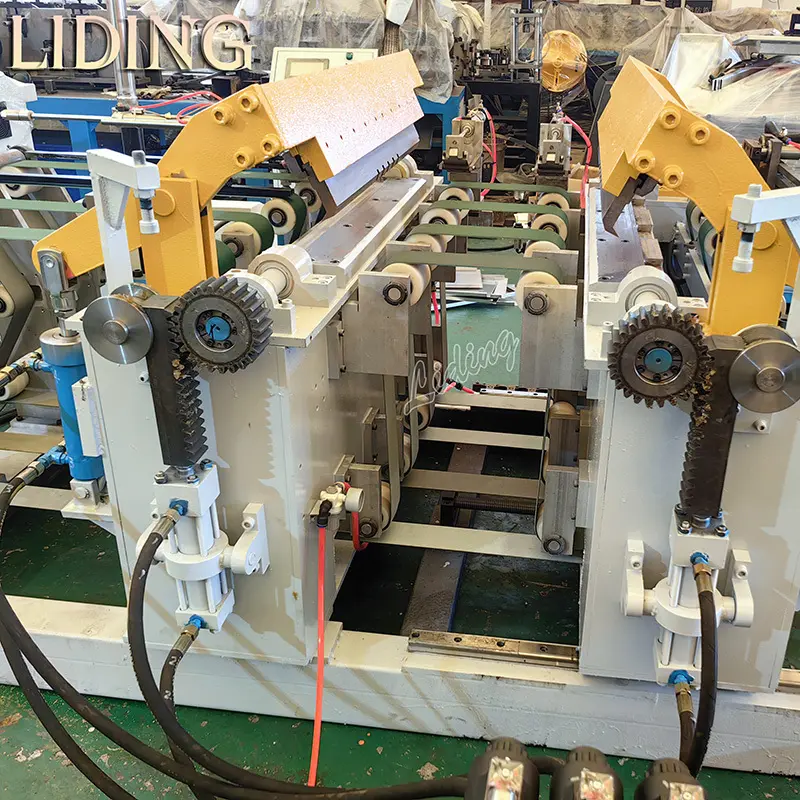

The front and rear end bending machine
● Machine consists of front and rear bending units, hydraulic system, conveying system, top material system, positioning system and machine body.
● Belt movement is driven by motor reducer
● Positioning system includes end positioning and side positioning and other parts.
Workflow
Decoiling → leveling and feeding→punching & servo feeding→Limit→Roll forming→Cut-off flanging→Front-end bending→Back-end bending
Profile

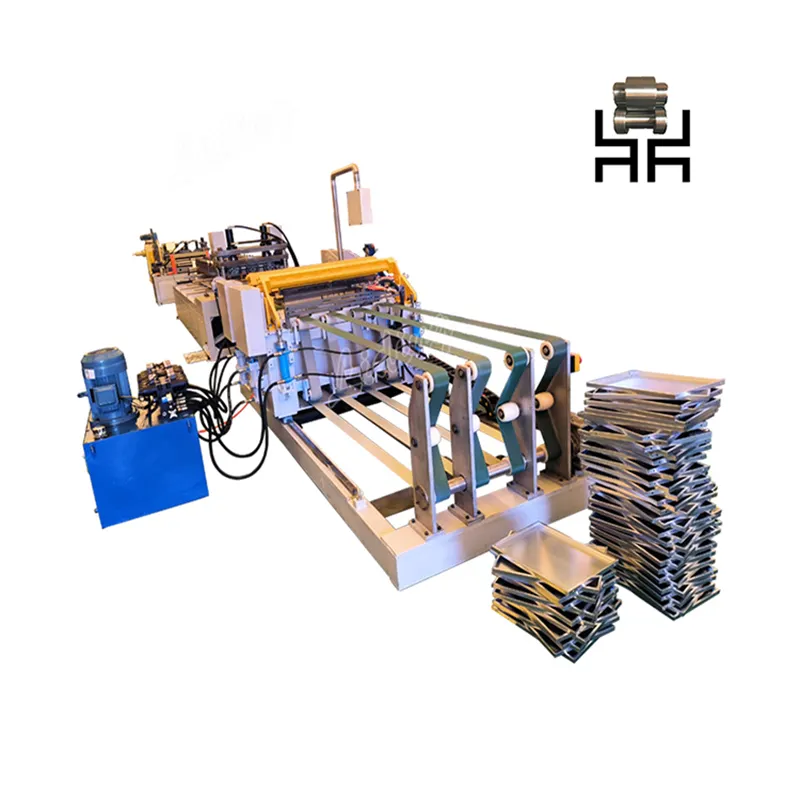

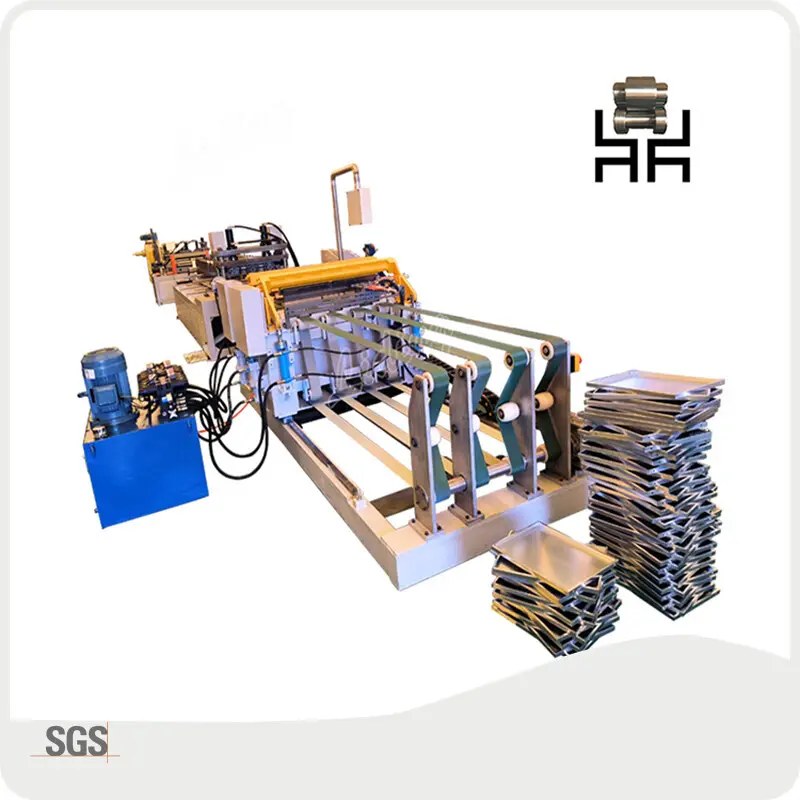

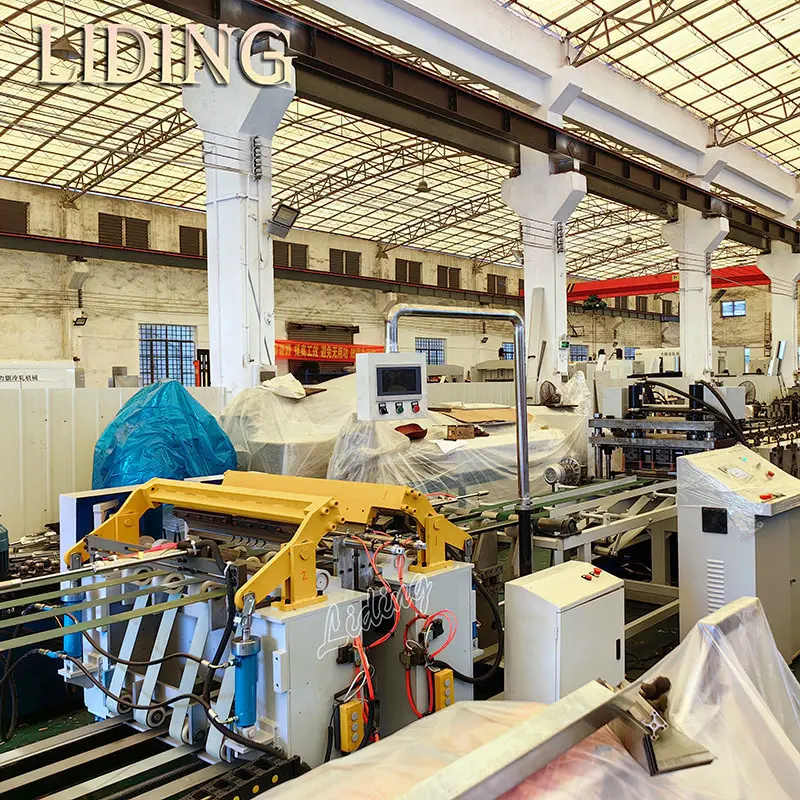

Product display
