Purlin Machine Manufacturer Factory Direct Supply
Profile
Application
Workflow
Electric decoiling and leveling feed - servo feed - punching and punching teeth - cold roller forming - hydraulic cutting - unloading - finish
Composition of the machine
the whole line is about 24 meters long
● Electric leveling Decoiler(2T),1 set
● Servo feeder,1 set
● Hydraulic punching machine,1 set
● Punching molds (41*21, 41*41),2 sets
● Forming machine,1 set
● Hydraulic cut-off mold ,1 set
● Run-out table,1 set
● PLC control cabinet 1 set
Basic Configuration
Electric leveling Decoiler
● Bore diameter 460~520mm.
● Material width 300mm.
● Load weight 2000kg.
● Manual core expansion is used.
● With power transmission .
● Automatic control function.
NC precision electronic numerical control roller feeding machine
● Material width: 200mm.
● Material thickness: 3.0mm.
● Servo motor:AC1.8KW.
● Feeding speed: 10 meters/min.
Hydraulic punching machine 1 set, punching mold 2 sets
● Hydraulic working pressure:16MPA
● Hydraulic motor:7.5KW
● Material width 102-142mm.
● Material thickness 1.5-3.0mm.
● Mold material Cr12MoV.
Basic Configuration

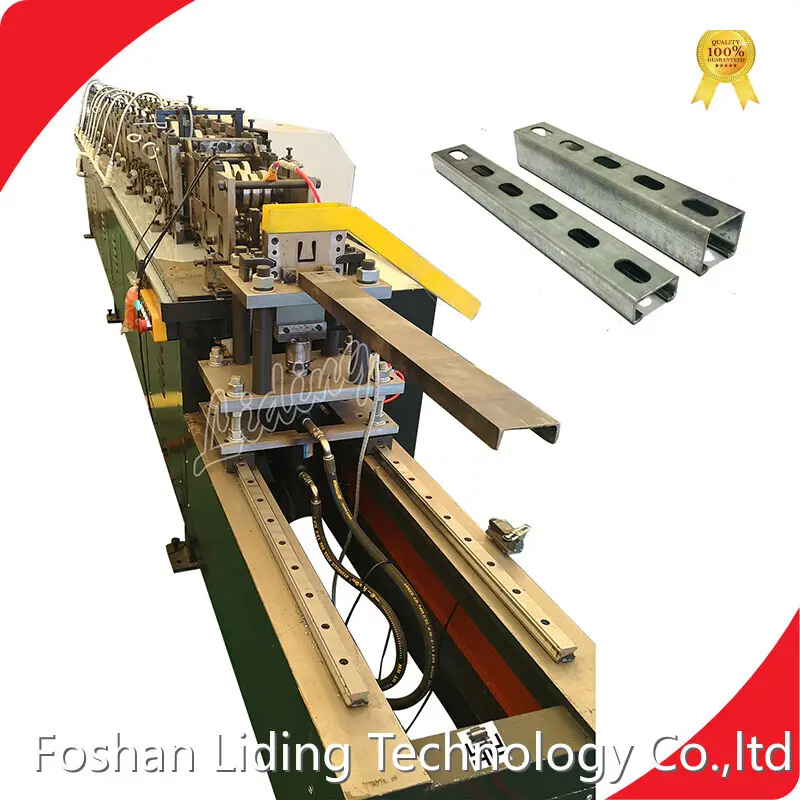

Molding machine
● Applicable materials: Cold or galvanized sheet metal
● Material thickness:1.5-3.0mm.
● Machine can produce 41*21, 41*41 two specifications, lifting forming module replacement specifications
● Main motor power: 22kw (two motors total 22kw).
● Forming speed: 0-6m/min.
● Bearing: NJ210E Bearing
● Number of forming groups: 21 groups (14 groups for replacement specifications)
● Shaft diameter and material: ¢58mm, 45# steel.
● Tolerance of cut length: 3m+-1.5mm, (cut between hole and hole).
● Transmission: Chain, gearbox steering transmission. (Main drive reduction gearbox: BWD4).
● Control system: PLC control.
● Machine net weight: about 8 tons .
● Voltage: 380V/ 3phase/ 50 Hz.
● Dimensions of forming machine: Approx. L*W*H 7m*1m*1.4m (Frame welded with steel pipe)
● Forming roll material: Cr12MoV.
● Cutting mold material: Cr12MoV Heat treatment HRC60-62℃.
Basic Configuration
Cutting off parts
● Equipped with a set of hydraulic system unit.
● With two sets of mold cut-off.
● Motor power 4 kW.
● Adopt cylinder control cut-off method.
● Adoption of non-stop cylinder jack cut-off method
Unloading
● Flat length 4 meters
● Flat table structure using square tube angle iron composition.
● Pneumatic automatic unloading is adopted.
PLC computer control box
● Voltage: 380 V, 50 Hz, 3Phase
● Automatic length measurement of punched holes: servo motor
● Automatic measurement: encoder
● Control the length and quantity with PLC. The machine automatically cuts the length and stops when the required quantity is reached.
● Length can be modified
● Control panel: push-button switches, touch screen
Product display
