Oem & Odm Elbow Cold Forming Machine for Sale
Products Description

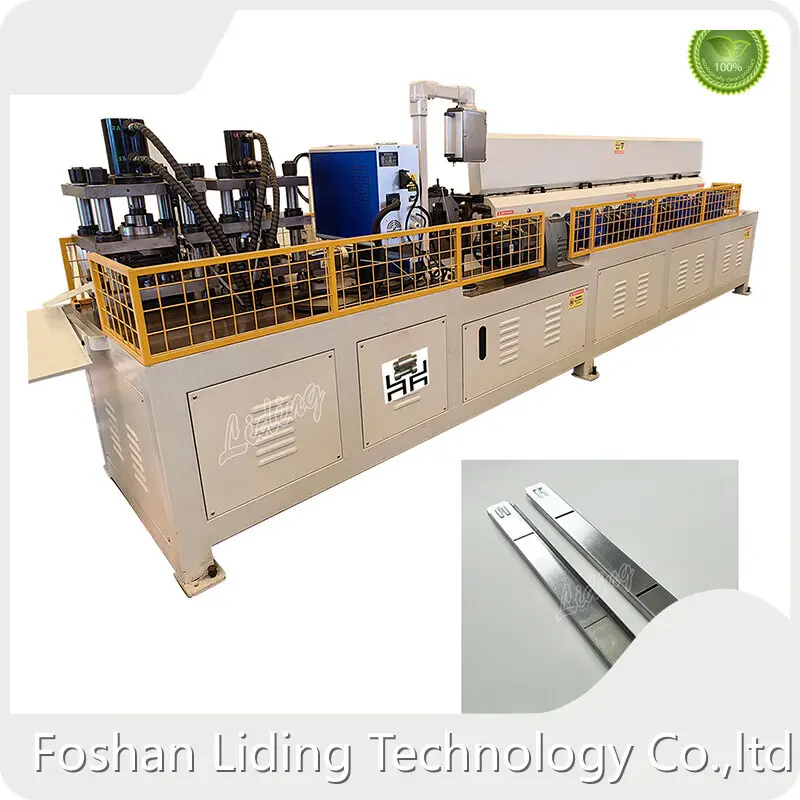

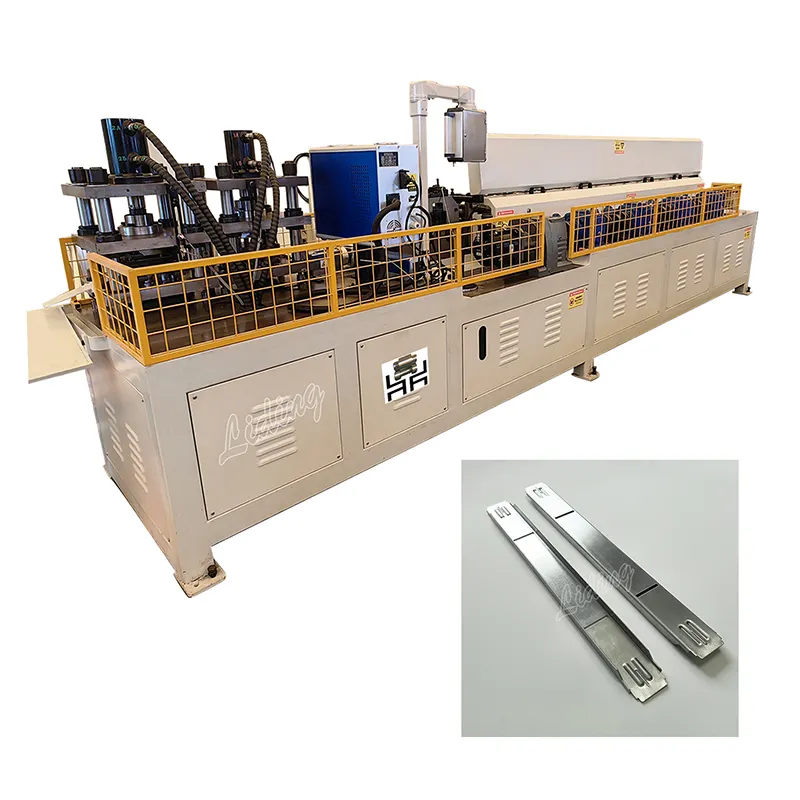

Aluminumc u profile section channel roll forming machine
Customers can choose the appropriate equipment according to their own and market demand.
Application:Filter
Aluminumc u profile section channel roll forming machine details:
Feeding material: Aluminum coil
Thickness of the plate:1.0mm
Diameter of the axle:Φ48mm
Bearing Material：6208
Rolling stages:14 stages
Rolling Material : Cr12MoV
Productivity: 12m/min
Voltage:380V 50Hz 3phase
Side board:30mm
Cutting blade: Cr12MoV with heat treatment
Transmission: gearbox steering transmission
Producing process
Decoiling & Leveling → Roll forming&Straightening →Laser Marking →Crimping→punching&Cutting→Run-out table
|
No
|
Item
|
Data
|
|
1
|
Double-headed Decoiler MT-200
|
1 Ton
|
|
2
|
Roll Forming Machine
|
14 stages+5 groups straightening
|
|
3
|
Crimping mold
|
1 set
|
|
4
|
Hydraulic cutting and punching modular
|
Beijing Huade Brand
|
|
5
|
Run Out Table
|
1 m
|
|
6
|
PLC controling
|
Panasonic Japan
|
|
7
|

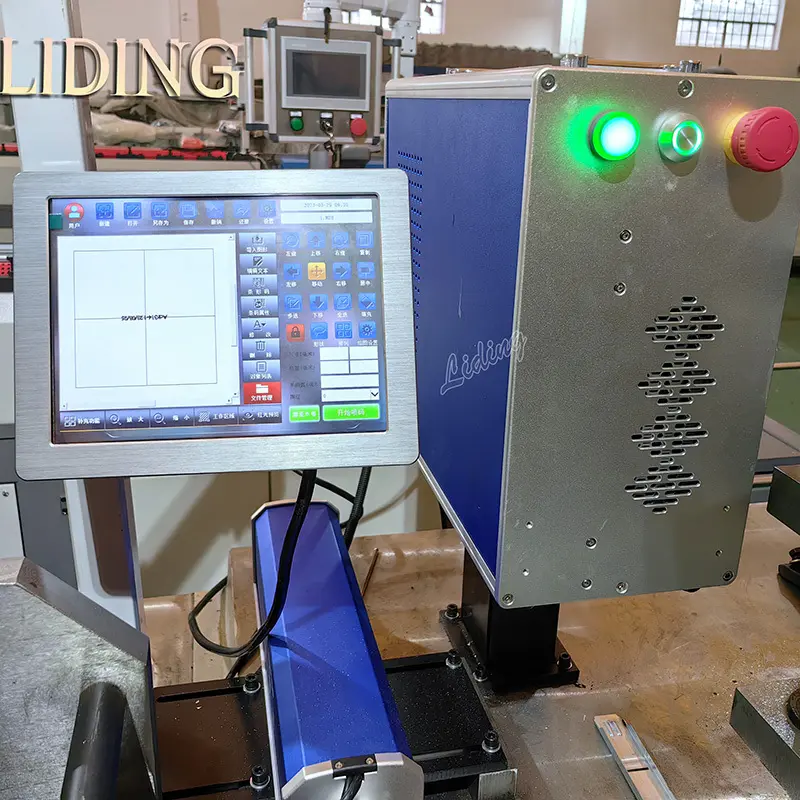

30W Laser Marking Machine
|
1 set
|
Details Images
30 years of production experience to provide customers with solutions
Non-powered double-headed decoiler MS-200
1) Applicable material roll width: 30-150mm
2)Thickness of applicable material roll: 0.3mm-1.0mm
3)Roll material load capacity: 500KG (single side)
4)Inner diameter of roll material: φ470mm-φ530mm
5)Coil outer diameter: φ1500mm

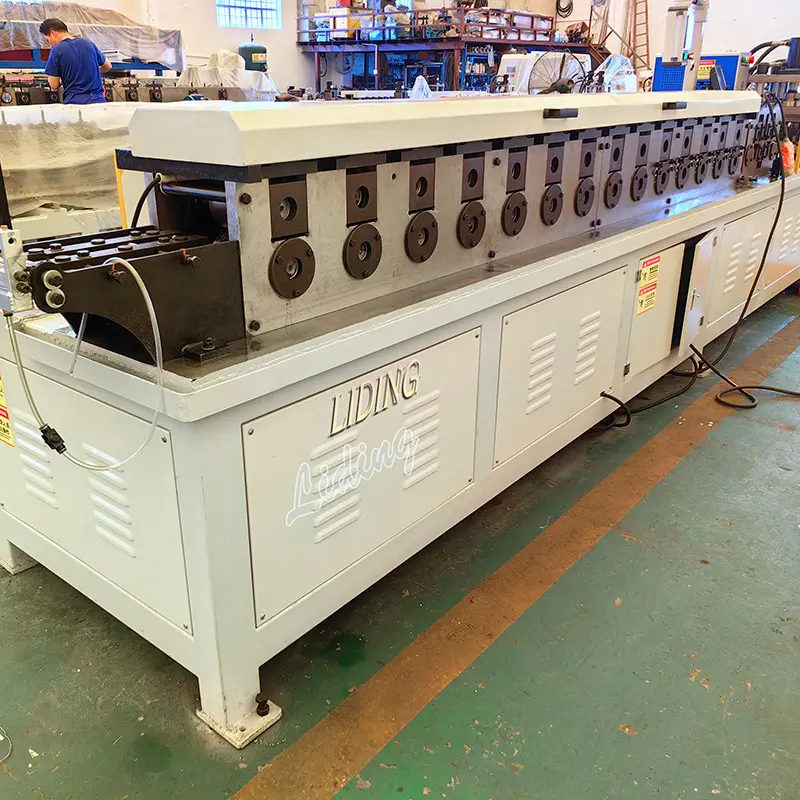

Roll forming part Mold shaft diameter：φ48mm
Shaft end bearing：6208
roll forming groups：14 groups
straightening groups：5 groups
Thickness of side plate：30mm
Feeding speed：1～12m/min Speed servo adjustment. (The overall production speed changes with the length of the product)
Electrical control system

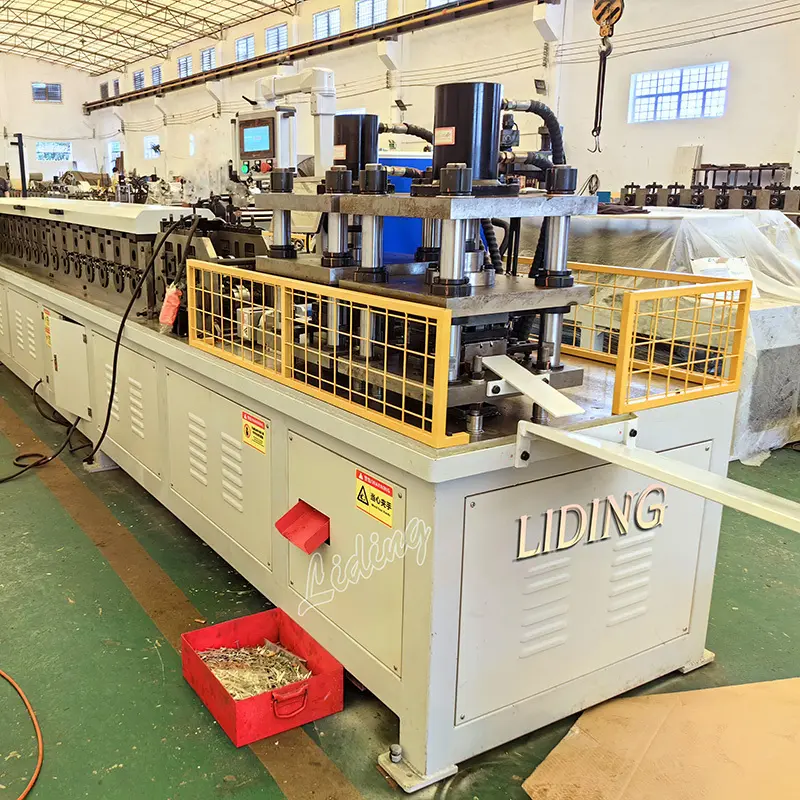

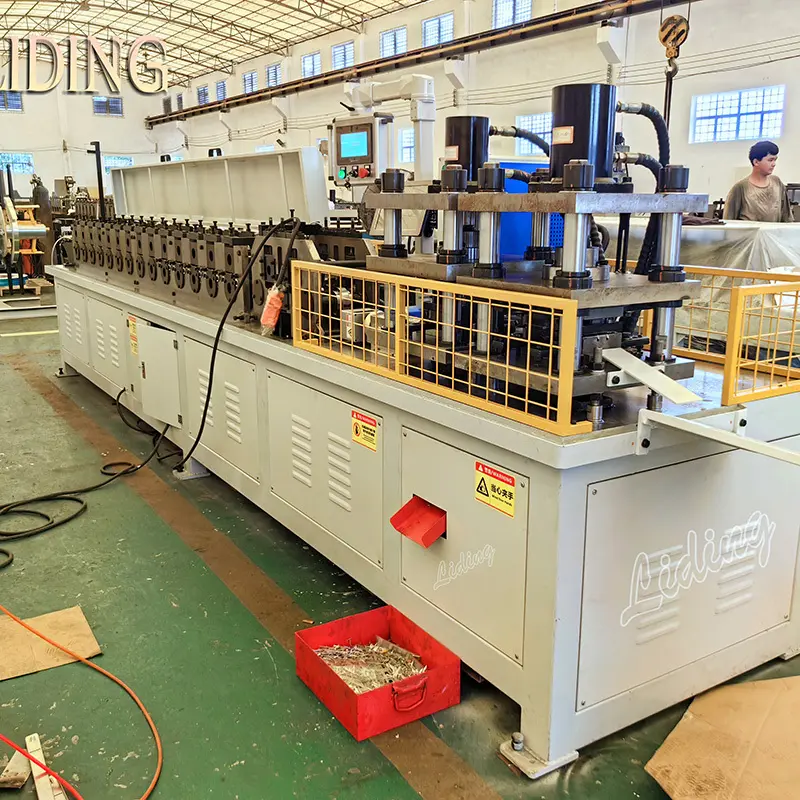

Crimping bar mold: for stretching bar and 3x24 bar hole. Hydraulic cutting section:
(1)The components adopt Beijing Huade products and ensure the accuracy and timeliness of action execution.
(2)Punching off the mold material is excellent, long service life, easy to replace.
(3)The cross section of the product after punching is smooth and flat.
Product display
Company Advantages
· Liding Machine elbow cold forming machine is manufactured at a quick rate due to the high efficiency of production equipment.
· The performance of this product is stable, which is ensured our skilled workers.
· With the help of professionals, it is provided in diverse specifications.
Company Features
· 佛山市立鼎科技有限公司 has been a reliable partner for our clients and suppliers, specializing in the manufacture of elbow cold forming machine.
· The technologies we apply are at the forefront of the elbow cold forming machine industry, laying a solid foundation for the our future development.
· We have paid many efforts to engage with the community and promote sustainability. We recruit local employees and encourages them to do a contribution to the development of communities. Check now!
Application of the Product
Foshan Liding Technology Co.,ltd's elbow cold forming machine is widely applicable in the industry.
Guided by the actual needs of customers, Foshan Liding Technology Co.,ltd provides comprehensive, perfect and quality solutions based on the benefit of customers.
