Product details of the cold roll forming machinery
Quick Detail
One of the core competitiveness of Liding Machine cold roll forming machinery lies in its unique design. What distinguishes the product from others is the reliable quality, stable performance, and long service life. The cold roll forming machinery produced by Foshan Liding Technology Co.,ltd is of high quality. And it is one of the products widely used in the industry. 佛山市立鼎科技有限公司 aims to provide clients with competitively priced cold roll forming machinery.
Product Description
Foshan Liding Technology Co.,ltd will present you the details of cold roll forming machinery in the following section.

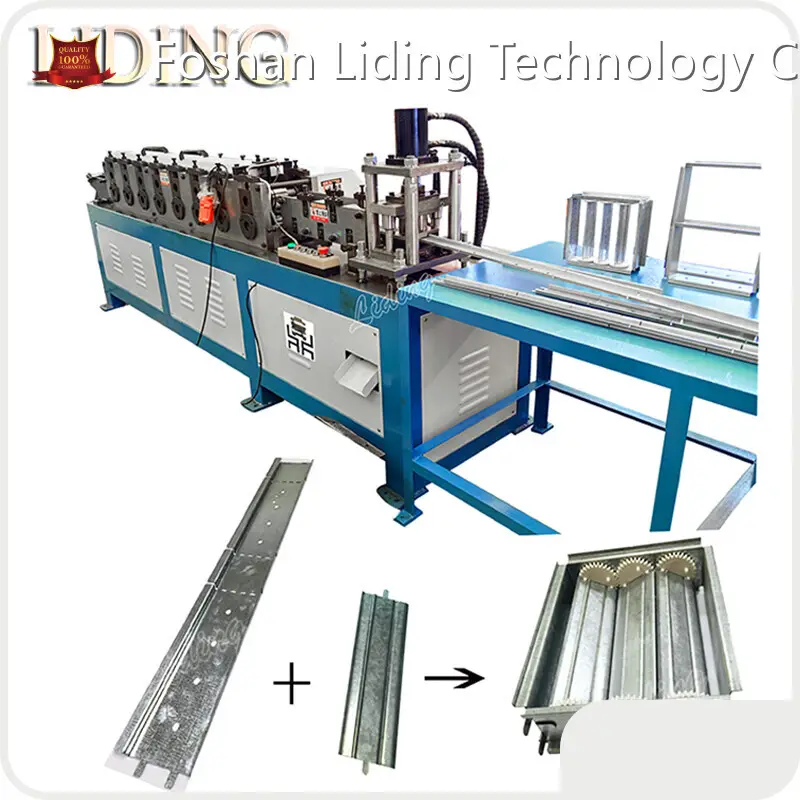

Damper outer frame roll forming Machine Technical Parameters
|
Item |
Technical parameters and specifications |
|
|
Forming material |
Coil material |
Galvanized Sheet |
|
Material thickness |
0.8±0.05㎜ |
|
|
Inner diameter of coil |
Ф460-Ф520 |
|
|
Processing capacity |
Forming speed |
0-15m/min |
|
Processing length |
200-1000mm |
|
|
Punching distance accuracy |
±0.25㎜ / 1000 MM |
|
|
Processing quality |
Accuracy of frame length and width |
±0.5㎜/500mm |
|
Straightness; Disturbance; |
±0.5㎜/500mm; |
|
|
Surface quality |
No obvious wrinkles, unevenness,surface galvanizing layer abrasion and other defects |
|
Main features
Fire Damper Frame Roll Forming Machine Main Features:
1. Fast speed: forming speed of 0-15m/min,can produce 400–500 frame 8 hours per shift by only 1-2 people.
2. High precision: hole distance error ± 0.25 mm, length error ± 0.3 mm, diagonal error ± 1 mm.
3. High efficiency: continuous order mode, customers can input multiple order data at one time for continuous production.
4. Good forming effect: specially designed rollers to ensure less abrasion to zinc layer after galvanized sheet is formed.
5. Small bending R: specially designed bending tool as well as pre-punching indentation at the small edge, two processes to ensure that the bending angle is small.
6. Good stability: electrical components adopt international and domestic top brands, the main mechanical parts through careful design and fatigue test, to ensure the stable production of production line in high-intensity and high-load working environment.
7. Simple operation: the whole line is automatic, assembly line production, computer controlled and easy to learn.
Workflow
Damper outer frame forming Producing process:
Decoiling & Leveling →Servo Feeding& Punching → Roll forming → Cutting→Run-out table
Damper outer frame roll forming Machine Compositions
|
Item |
Date |
|
Decoiler and leveling two-in-one machine |
Load weight 1000kg |
|
NC precision electronic numerical control roller feeding machine |
Feeding speed: 15 meters / min |
|
Hydraulic punch Machine (4 Stations,with 4 mold) |
Round hole punching molds 2 sets Punching square hole mold 1 set Punching sharp molds 1 set |
|
Cutting Modular |
1 Station,with 1 mold |
|
Roll Forming Machine |
10 stations |
|
Hydraulic punch modular after forming |
1 Stations,with 1 mold |
|
Cutting Modular after forming |
1 Station,with 1 mold |
|
Run Out Table |
4 m |
|
PLC control cabinet |
Famous brand with touch screen |
|
Hydraulic system |
2 set |
Product display
