New Stud and Track Forming Machine for Factory
Product details of the stud and track forming machine
Product Specification
Keywords: purlin roll forming Making Machine
Weight: 8000 kg
Punching: High-speed punching
After-sales Service Provided: Online support, Free spare parts, commissioning and training
Profile design: custom
Product Information
Our professional designers can provide help in designing stud and track forming machine. stud and track forming machine as an environmentally friendly product has been accepted by more and more consumers. This offered product is highly preferred by our customers in the global market.
Products Description

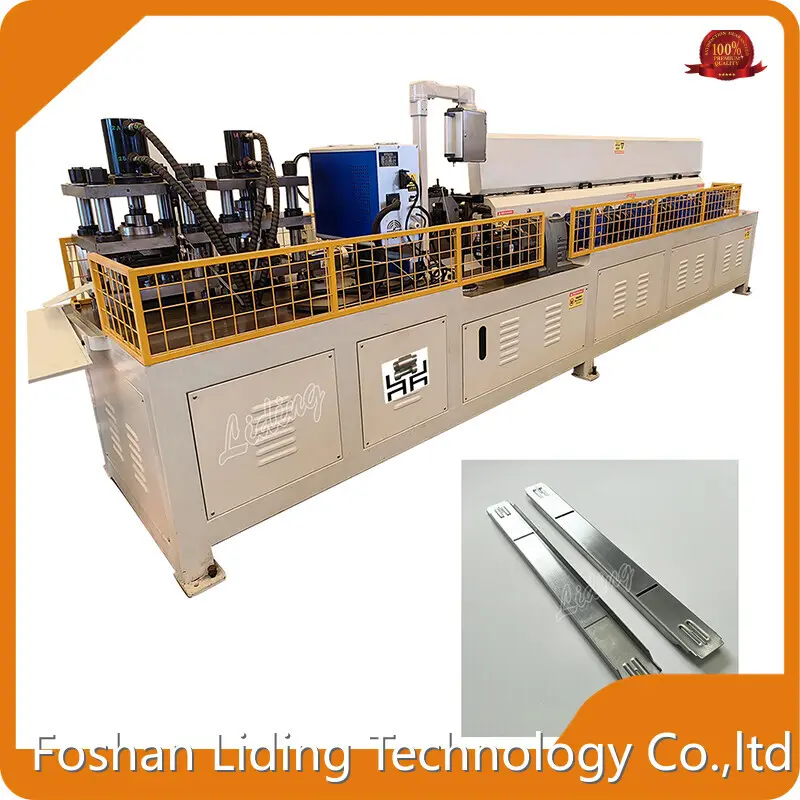

Aluminumc u profile section channel roll forming machine
Customers can choose the appropriate equipment according to their own and market demand.
Application:Filter
Aluminumc u profile section channel roll forming machine details:
Feeding material: Aluminum coil
Thickness of the plate:1.0mm
Diameter of the axle:Φ48mm
Bearing Material：6208
Rolling stages:14 stages
Rolling Material : Cr12MoV
Productivity: 12m/min
Voltage:380V 50Hz 3phase
Side board:30mm
Cutting blade: Cr12MoV with heat treatment
Transmission: gearbox steering transmission
Producing process
Decoiling & Leveling → Roll forming&Straightening →Laser Marking →Crimping→punching&Cutting→Run-out table
|
No
|
Item
|
Data
|
|
1
|
Double-headed Decoiler MT-200
|
1 Ton
|
|
2
|
Roll Forming Machine
|
14 stages+5 groups straightening
|
|
3
|
Crimping mold
|
1 set
|
|
4
|
Hydraulic cutting and punching modular
|
Beijing Huade Brand
|
|
5
|
Run Out Table
|
1 m
|
|
6
|
PLC controling
|
Panasonic Japan
|
|
7
|
30W Laser Marking Machine
|
1 set
|
Details Images
30 years of production experience to provide customers with solutions
Non-powered double-headed decoiler MS-200
1) Applicable material roll width: 30-150mm
2)Thickness of applicable material roll: 0.3mm-1.0mm
3)Roll material load capacity: 500KG (single side)
4)Inner diameter of roll material: φ470mm-φ530mm
5)Coil outer diameter: φ1500mm
Roll forming part Mold shaft diameter：φ48mm
Shaft end bearing：6208
roll forming groups：14 groups
straightening groups：5 groups
Thickness of side plate：30mm
Feeding speed：1～12m/min Speed servo adjustment. (The overall production speed changes with the length of the product)
Electrical control system
Crimping bar mold: for stretching bar and 3x24 bar hole. Hydraulic cutting section:
(1)The components adopt Beijing Huade products and ensure the accuracy and timeliness of action execution.
(2)Punching off the mold material is excellent, long service life, easy to replace.
(3)The cross section of the product after punching is smooth and flat.
Product display
Company Advantage
• With a comprehensive management service system, Foshan Liding Technology Co.,ltd is capable of providing customers with one-stop and professional services.
• Our company adopts the current world-class production technology and equipment. Our products meet the needs of consumers for their good quality and good function. And they quickly enter the Asian market and occupy a favorable position. At present, our sales scale has covered many cities in Asia and our products are highly recognized by the Asian market.
• With the experienced R&D technical personnel and professional operation team, we always insist on innovation and R&D of products and pay attention to the improvement of product competitiveness. At the same time our operation elites open markets with firm belief and push us move forward steadily in the highly competitive market.
• Foshan Liding Technology Co.,ltd was established in After years of development, we accumulate rich industry experience and gain praises from customers.
Foshan Liding Technology Co.,ltd's quality Air Duct flange Roll forming machine,Fire damper production line,HAVC Air duct line,C/U/Z purlin forming machine,Storage Shelf roll forming machines at preferential prices are available for you. Please leave the contact information and you will get special offers.
