Multi Station Cold Forging Machine Liding Machine Brand
Product details of the multi station cold forging machine
Product Overview
Liding Machine multi station cold forging machine is designed by a professional design team which has been putting efforts into designing. The product has a competitive advantage in quality and price. The multi station cold forging machine produced by Foshan Liding Technology Co.,ltd has a wide range of applications. Under reasonable management, the service team of Liding Machine has been working orderly to provide the best service.
Product Introduction
Compared with other similar products, our multi station cold forging machine has the following advantages.

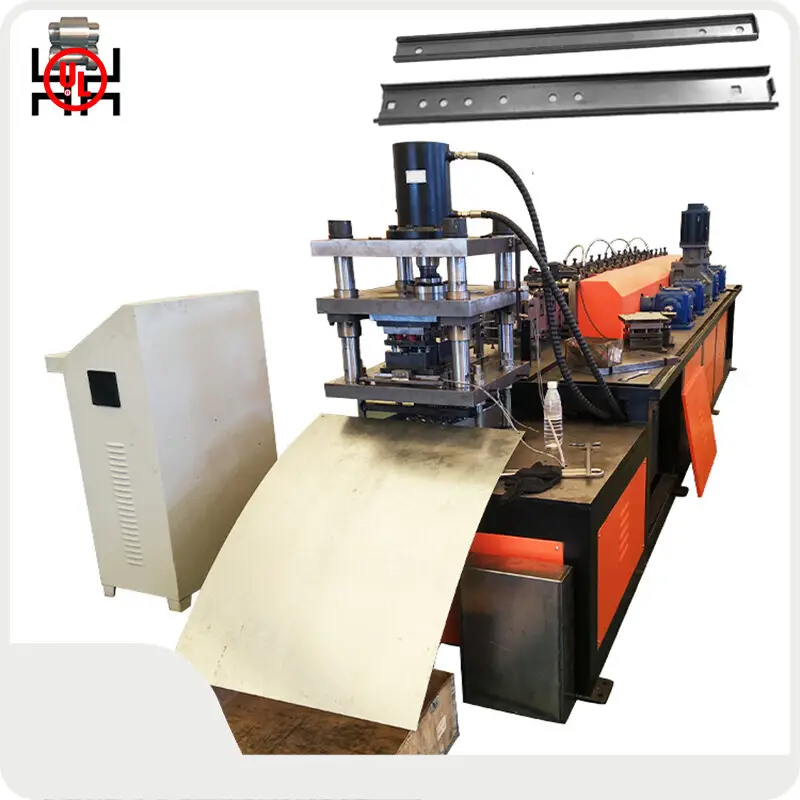

Composition of the machine
|
Configure |
Technical Parameters |
|
|
Manual Decoiler |
Load capacity 1 ton |
|
|
Roll forming machine |
Main Machine frame |
Side board is made of 45# 30mm steel plate |
|
Forming section |
12 groups rollers,Cr12mov steel, HRC up to 58~60º. |
|
|
Full Forming Section |
4 sets of main forming rolls for precision shaping |
|
|
Transmission section |
Reduction gearbox and gear transmission |
|
|
Punching and cutting section |
Composed of platform mold, stretching and cutting composite mold, single-cylinder hydraulic press and length measuring device. Punching material :DC53 |
|
|
Finished product collection box |
Used to take over the processed productions. |
|
|
Cooling circulation system |
The medium is emulsified oil |
|
|
Electric control system Security part |
Protection net, warning signs, manual emergency stop button,etc. |
|
Profile
Other type:Two-piece Guide Slide machine
Workflow
Decoiling - Cold Roll Forming - Hydraulic Punching & Cutting - Unloading - Finishing
Composition of the machine
● Manual Decoiler ,2 set
● Rail forming main machines (Internal and external )，2 set
● Hydraulic system Mold,2 set
● Electric control device (touch screen, inverter, PLC, etc.)
Composition of the machine
|
Item |
|
Technical Parameters |
|
Forming materials |
Material |
Cold Plate Material |
|
Material thickness |
1.5±0.02㎜ |
|
|
Inner diameter of the coil |
Ф460-Ф520 |
|
|
Processing capacity |
Main machine forming speed |
12pcs/min |
|
Processing length |
200-1000mm |
|
|
Processing Quality |
Dimensional accuracy |
±0.2㎜ when L≤500mm; |
|
Straightness; Disturbance; |
When L≤500mm, curvature not more than ±0.2㎜; |
|
|
Dimensional requirements of forming section |
According to the drawing |
|
|
Surface quality |
No obvious wrinkles, unevenness, surface galvanizing layer abrasion and other defects |
Product display
Company Advantages
For many years, 佛山市立鼎科技有限公司 has been known as a renowned manufacturer, supplier, and exporter of multi station cold forging machine. Our company has responsible designers. They are always willing to spend a lot of time looking for inspiration to create a popular product for our customers. Our value commitment is based on innovative design, flawless engineering, superior execution and superior service within budget and schedule. Please contact us!
If you are in need for products of reliable quality and affordable price, please contact us at any time!
