Product details of the multi station cold forging machine
Product Specification
Type: Steel Frame & Purlin Machine
Showroom Location: None
Product name: Aluminumc u profile section channel roll forming machine
Warranty of core components: 1 Year
Punching: High-speed punching
Product Overview
The variety of multi station cold forging machine design sells well all over the world. The product is highly recommended by its high quality and versatility. The product is welcomed in the global market and has a wide market application prospect.
Product Description
Foshan Liding Technology Co.,ltd's multi station cold forging machine has better performances in the following aspects.
Products Description

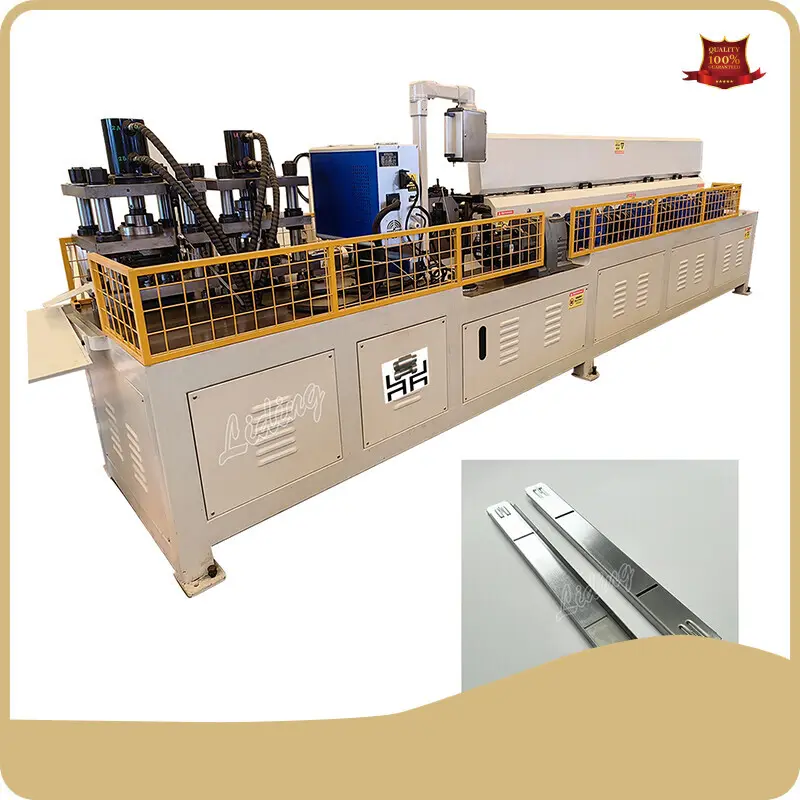

Aluminumc u profile section channel roll forming machine
Customers can choose the appropriate equipment according to their own and market demand.
Application:Filter
Aluminumc u profile section channel roll forming machine details:
Feeding material: Aluminum coil
Thickness of the plate:1.0mm
Diameter of the axle:Φ48mm
Bearing Material：6208
Rolling stages:14 stages
Rolling Material : Cr12MoV
Productivity: 12m/min
Voltage:380V 50Hz 3phase
Side board:30mm
Cutting blade: Cr12MoV with heat treatment
Transmission: gearbox steering transmission
Producing process
Decoiling & Leveling → Roll forming&Straightening →Laser Marking →Crimping→punching&Cutting→Run-out table
|
No
|
Item
|
Data
|
|
1
|
Double-headed Decoiler MT-200
|
1 Ton
|
|
2
|
Roll Forming Machine
|
14 stages+5 groups straightening
|
|
3
|
Crimping mold
|
1 set
|
|
4
|
Hydraulic cutting and punching modular
|
Beijing Huade Brand
|
|
5
|
Run Out Table
|
1 m
|
|
6
|
PLC controling
|
Panasonic Japan
|
|
7
|
30W Laser Marking Machine
|
1 set
|
Details Images
30 years of production experience to provide customers with solutions
Non-powered double-headed decoiler MS-200
1) Applicable material roll width: 30-150mm
2)Thickness of applicable material roll: 0.3mm-1.0mm
3)Roll material load capacity: 500KG (single side)
4)Inner diameter of roll material: φ470mm-φ530mm
5)Coil outer diameter: φ1500mm
Roll forming part Mold shaft diameter：φ48mm
Shaft end bearing：6208
roll forming groups：14 groups
straightening groups：5 groups
Thickness of side plate：30mm
Feeding speed：1～12m/min Speed servo adjustment. (The overall production speed changes with the length of the product)
Electrical control system
Crimping bar mold: for stretching bar and 3x24 bar hole. Hydraulic cutting section:
(1)The components adopt Beijing Huade products and ensure the accuracy and timeliness of action execution.
(2)Punching off the mold material is excellent, long service life, easy to replace.
(3)The cross section of the product after punching is smooth and flat.
Product display
