Liding Machine Z Purlin Machine for Factory - Construction Works
Product details of the z purlin machine
Product Specification
Showroom Location: None
Electric Control system: Fully Automatic PLC(imported Brand),transducer, touch panel
Dimension(L*W*H): 4200*800*1200mm
Marketing Type: Ordinary Product
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Other
Quick Detail
The skilled production staff ensures every detail of Liding Machine z purlin machine is incredibly delicate. Seldom does our z purlin machine go malfunction. 佛山市立鼎科技有限公司 is a high-tech enterprise integrating research and development, production, marketing and service of z purlin machine together.
Product Information
We demand ourselves in the production of z purlin machine with stricter standards. Based on this, we ensure that our products have advantages over the general products in the following aspects.
Products Description

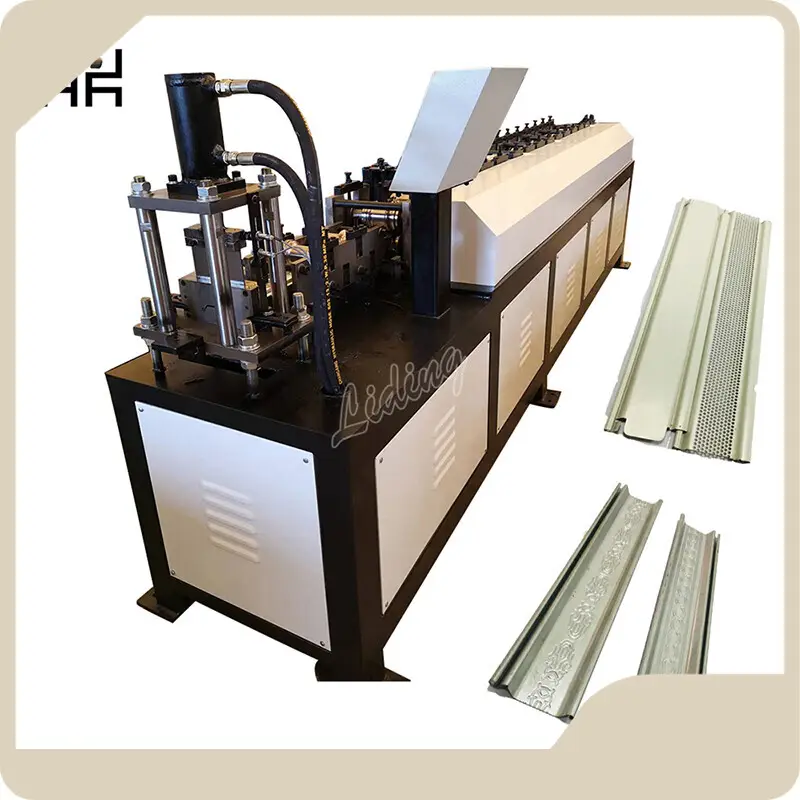

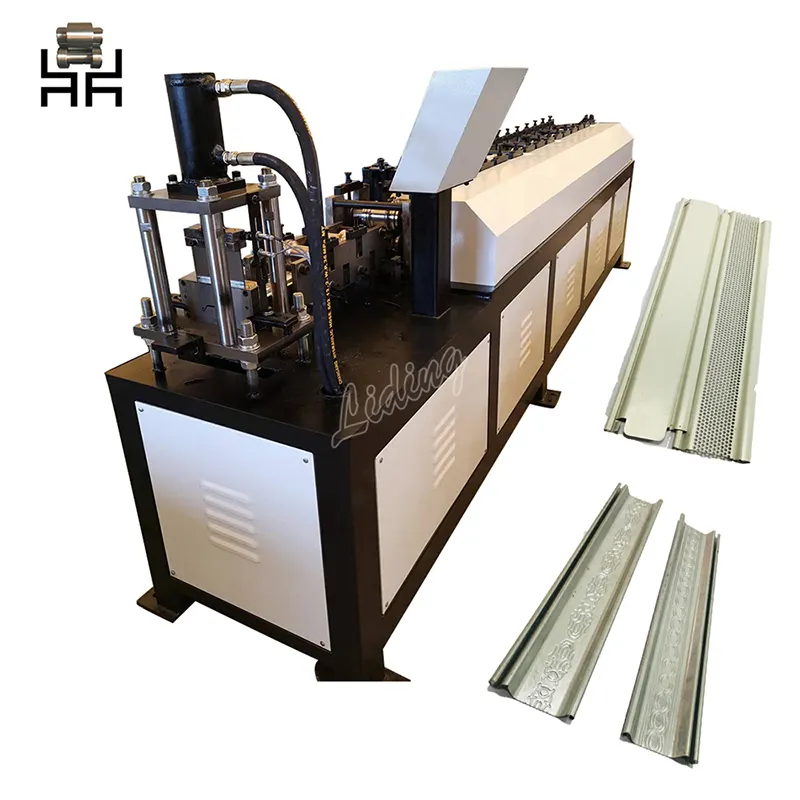

Automatic shutter profile roll forming machine/shutter door tiles forming machinery
The finished product of High Quality Roller Shutter Door Roll Forming Machine, Door Roll Forming Machine Rolling Slats is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
Main Features:
High quality, fashionable styles, durable use, reasonable and realistic price and can roll more kinds of other shutter door patterns.
Product Specifications
Automatic shutter profile roll forming machine details:
● Feeding material: galvanized steel/colored steel coil/or as customer request
● Feeding Thickness :0.5-0.8mm
● Rolling stages:15stages
● Productivity: 6-10m/min
● Total power: 6 kw machine motor
● Cutting blade: Cr12 with heat treatment
● Main motor power:4kw
● Hydraulic pump station power:2.2kw
● Side plate thickness:25mm
● Roller material: GCr15 steel
● Control systerm:Panasonic PLC control system with touch screen
● Roller driven type：Geared transmission
● Power supply:380v,3phase,50hz
|
No
|
Item
|
Data
|
|
1
|
Decoiler
|
1000kgs
|
|
2
|
Roll Forming Machine
|
15stages
|
|
3
|
Hydraulic cutting
|
Cr12
|
|
4
|
Run Out Table
|
4 m
|
|
5
|
PLC controling
|
Panasonic PLC control system with touch screen
|
Producing process
Decoiling → Feeding &Roll forming&Straightening →Hydraulic cutting-off →Run-out table

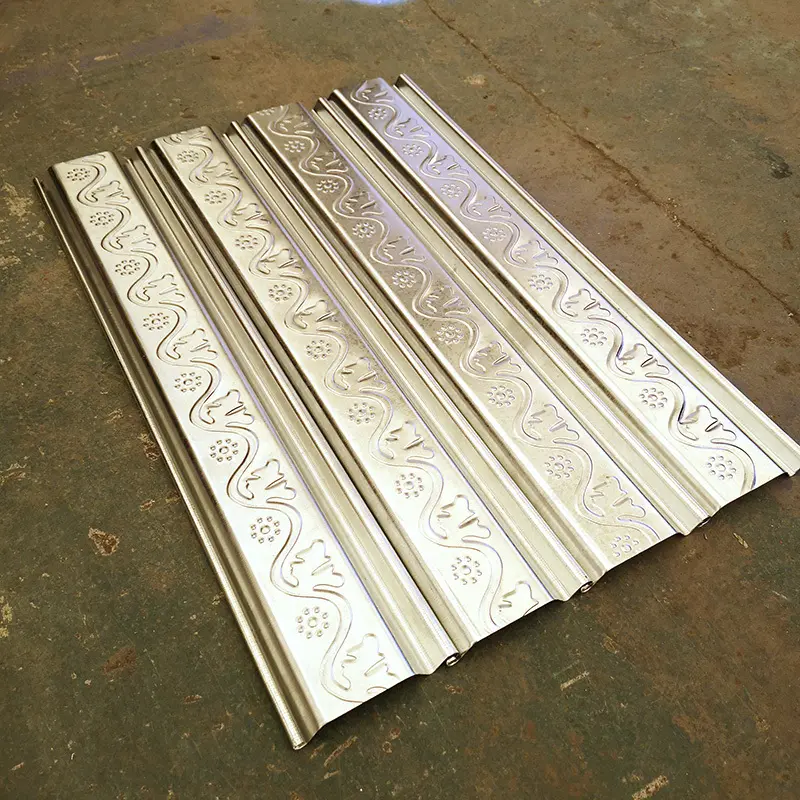

Other shutter profile
There are many kinds of forming machines for doors and windows, which are widely used in the production of rolling gate, garage door, guide rail, window rail, guide Groove, etc. . feeding, forming, and shearing is all at once.
Product display
Company Advantages
佛山市立鼎科技有限公司 is a modern company. With the main focus on Air Duct flange Roll forming machine,Fire damper production line,HAVC Air duct line,C/U/Z purlin forming machine,Storage Shelf roll forming machines, our company is engaged in the production, processing, scientific research and sales. Foshan Liding Technology Co.,ltd aims to become China's leading enterprise in the future with sustainable and efficient operation and rapid growth. Our company has experienced and competent management team and various technical teams. Besides, we have a variety of advanced operating equipment. All this provides conditions for our product production and overall development. We understand the actual situation of the market, and then combine the needs of customers. In this way, we develop the most suitable solutions for customers and effectively meet their needs.
Do not hesitate to contact us if you are interested in ourAir Duct flange Roll forming machine,Fire damper production line,HAVC Air duct line,C/U/Z purlin forming machine,Storage Shelf roll forming machines.
