Liding Machine Purlin Rolling Machine Purlin Rolling Machinein many styles

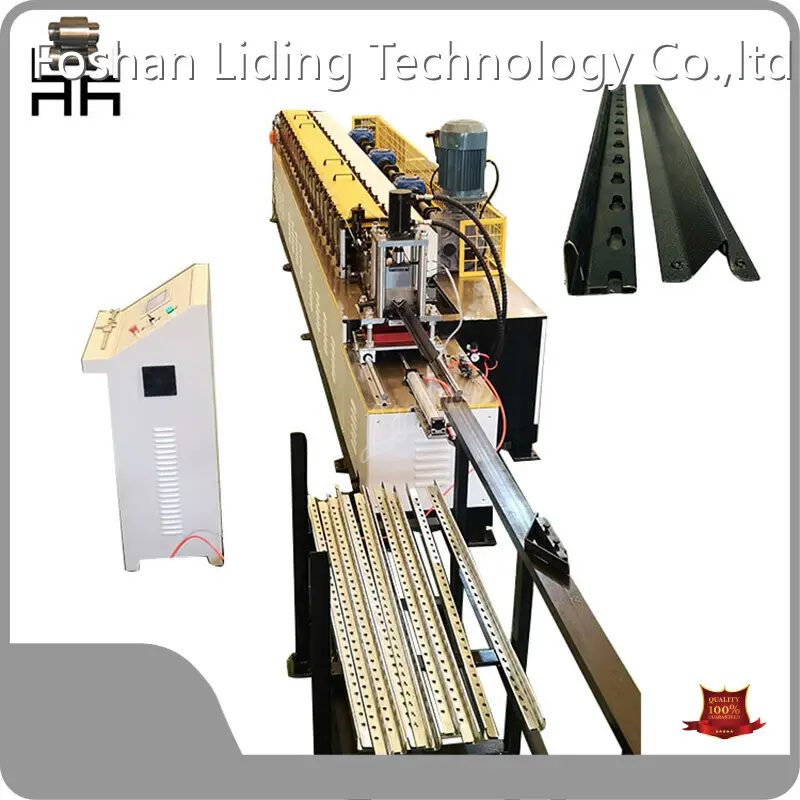

Product details of the purlin rolling machine
Quick Overview
It is purlin rolling machine that makes it more reliable. The product is accredited in all aspects, such as long service life, stable performance, and so on. The product has been sold to the overseas market for and has been well received by customers.
Product Introduction
Foshan Liding Technology Co.,ltd strives excellent quality by attaching great importance to details in the production of purlin rolling machine.
Composition of the machine
Electric Decoiler
● Bore diameter 460~520mm.
● Material width 300mm
● Load weight 2000kg
● Quantity: One.
● Manual Expansion
● with power transmission.
NC precision electronic CNC roller feeder
● Material width: 200mm
● Maximum material thickness: 2.0mm
● Servo motor:AC0.8KW
● Feeding speed: 15m/min
punching mold,2 set
● Width of material: unspecified
● Material thickness 1.5mm
● Mold Material Cr12MoV
● Hydraulic system:25-ton cylinder hydraulic station
Basic Configuration
Forming machine
● Applicable materials: Cold or galvanized sheet metal
● Material thickness: 1.5mm
● Main motor power: 4kw
● Molding speed: 0-6m/min
● Number of molding groups: 8 groups
● Shaft diameter and material: ¢ 48mm, 45# steel
● Great wall type plywood: plate thickness 25mm
● Transmission: Chain & gear transmission.
● Control system: PLC control
● Machine net weight: about 4 tons
● Voltage: 380V/ 3phase/ 50 Hz
● Dimensions of molding machine: approx. L*W*H 14m*0.8m*1.2m
● Forming roll material: Cr12MoV
● Punching die, cutting die material: Cr12MoV heat treatment HRC60-62℃.
Basic Configuration
Cutting off parts
● With a set of hydraulic system device
● With one set of cutting mold
● In-line fiber optic detection shutdown cut-off
PLC computer control cabinet
● Adopt Panasonic PLC, human-machine interface control, domestic frequency converter speed control.
● The main electrical parts are made of Schneider and Shihlin products.
● The length is measured by internal encoder
● The electric control box adopts fully sealed ventilation cooling device.
● The power supply of the control system adopts overload protection, and the electric control frame is connected with an aviation plug
● Cut off method with stop
● Voltage; 380V 50Hz
Workflow
Electric Decoiling & straightening - servo feeding - hydraulic punching round hole, punching square hole die, - cold roll forming - cutting - finished
Product display
Company Introduction
Liding Machine constantly keeps developing and optimizing purlin rolling machine. Liding Machine earnestly implement the high-tech machine to produce purlin rolling machine. Attaching the great importance of purlin rolling machine is an essential key to the success. Contact us!
You are always welcomed for inquiry.
