Liding Machine Hvac Machinery for Sale Hvac Machinery for Salein many styles
Product details of the hvac machinery for sale
Product Information
Liding Machine hvac machinery for sale is standardizationally produced. The quality of this product is checked thoroughly to ensure that a defect-free product is provided. The product has been continuously improved the differentiated competitive advantages.
Main parameters
Electric Decoiler
● Bore diameter 460~520mm.
● Material width 200mm
● Load weight 1000kg
● Quantity: One.
● Manual Expansion
● Powerless transmission,with brake.

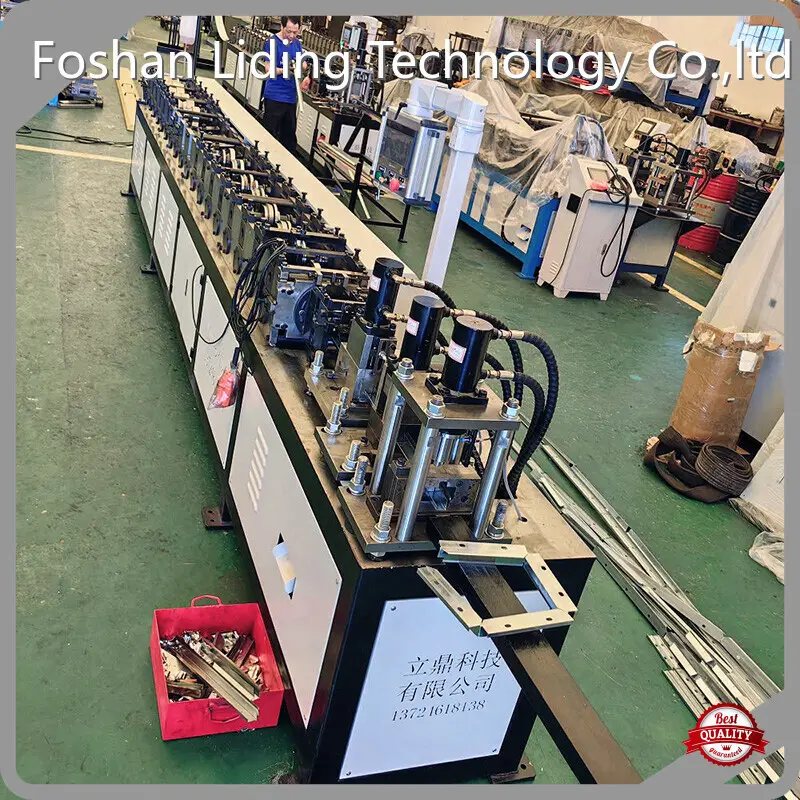

Forming machine
● Applicable materials: Cold or galvanized sheet metal
● Material thickness: 0.4-0.6mm
● Main motor power: 4kw(servo motor)
● Molding speed: 3-6m/min
● Number of molding groups: 18 groups+5 groups for straightening
● Shaft diameter and material: ¢ 42mm, 45# steel
● Great wall type plywood: plate thickness 35mm
● Transmission: Chain & gear transmission.
● Control system: PLC control
● Machine net weight: about 4 tons
● Voltage: 380V/ 3phase/ 50 Hz
● Dimensions of molding machine: approx. L*W*H 6m*0.8m*1.2m
● Forming roll material: Cr12MoV
● Punching die, cutting die material: Cr12MoV heat treatment HRC60-62℃.
Basic Configuration
Cutting off parts
● Hydraulic system, hydraulic motor 2.2KW, three stations cylinder
● 1 set of punching molds, 1 set of 90 degree angle cutting molds, 1 set of waste cut-off molds
● Mold material: CR12MOV
● Processing hardness HRC60°-62°.
● Adopting online encoder to detect the stopping and cutting.
Run out table
● Flat length 4 meters
● Flat table structure using square tube angle iron composition.
PLC computer control cabinet
● Voltage: 380 V, 50 Hz, 3Phase
● Panasonic PLC, human-machine interface control, domestic inverter speed control.
● Main electrical parts adopt Schneider and Shihlin products.
● The length of the encoder using the internal control encoder counting length way
● Electronic control box adopts fully sealed ventilation cooling device.
● Control system power supply adopts overload protection.
● Adopt shutdown cut-off mode
Workflow
Decoiling - Roll Forming - Punching round holes - 90 degree notch - cut off - finish
