Liding Machine C Purlin Roll Forming Machine Price Manufacturing Plant C Purlin Roll Forming Machine Pricebest Supplier
Product details of the c purlin roll forming machine price
Product Specification
Roller stations: 18 Stations
Applicable Industries: Building Material Shops, Manufacturing Plant, Construction works
Tile Type: Steel
Production Capacity: 0-8M/min
Core Components: Pressure vessel, Motor, Bearing, Gear, Gearbox, PLC
Product Overview
Liding Machine c purlin roll forming machine price is developed by using modern machinery and technology. This product provides incredible longevity and low-maintenance performance. The c purlin roll forming machine price produced by our company can be applied to different fields and scenarios. So the different requirements of different people can be satisfied. Customers are able to gain the best service in 佛山市立鼎科技有限公司.
Product Description
c purlin roll forming machine price's outstanding quality is shown in the details.
Bottom reinforcement steel roll forming machine for elevators
Application
Other profiles
Specification
|
Serial number
|
composition
|
data
|
|
1
|
Manual Decoiler
|
Max. bearing load capacity 3000kg
|
|
2
|
Leveler
|
1 set
|
|
3
|
Sensor racks
|
2 set
|
|
4
|
Hydraulic punching unit
|
7 stations
|
|
5
|
Cold roll forming integral machine
|
1 set
|
|
6
|
Cutting device
|
1 Set
|
|
7
|
Hydraulic system
|
5.5KW
|
|
8
|
PLC automatic control equipment
|
Famous brand
|
Production process
Decoiling→ Roll Forming →Straightening → servo feeding → punching → roll forming → automatic cutting → unloading
|
Condition
|
New
|
|
Production Capacity
|
0-8m/min
|
|
Place of Origin
|
China,Guangdong
|
|
Brand Name
|
Liding
|
|
Voltage
|
380V 50Hz 3phases
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
High-accuracy
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Product name
|
Full Auto Omega Profile Channel roll forming machine
|
|
Roller material
|
cr12mov
|
|
Cutting blade material
|
CR12mov
|
|
Transmission
|
Gear
|
Main parameters
1 Main motor power 11KW
2 Transmission form Gear, chain
3 Rolling speed 0-8M/min
4 Maximum feeding width 250mm
5 Rolling mold material Cr12
6 Rolling mold heat treatment hardness HRC58-62
7 Mold surface roughness Ra0.8
8 Roller shaft material, diameter 40Cr, φ60
9 roller groups: 18+5
10 mold life ≥1.6 million meters
11 Residue recovery method Filter collection
12 Rolling mold replacement method Overall lifting, positioning pin fixed

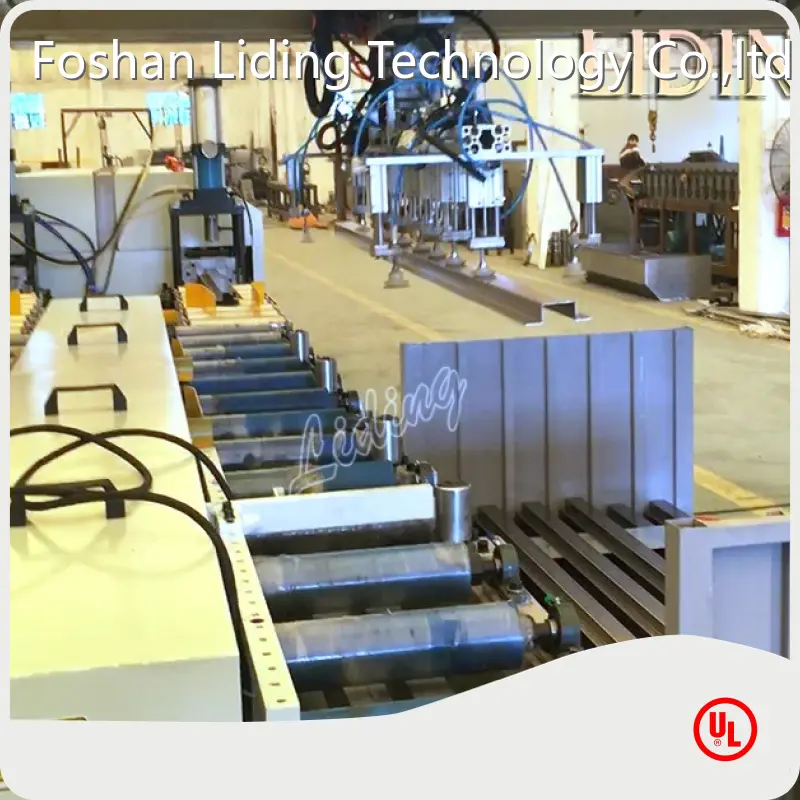

Product display
Company Information
佛山市立鼎科技有限公司, situated in fo shan, is a company. We mainly manage the business of Air Duct flange Roll forming machine,Fire damper production line,HAVC Air duct line,C/U/Z purlin forming machine,Storage Shelf roll forming machines. In the future, Foshan Liding Technology Co.,ltd will run scientific management by taking quality as the soul, by taking customer as the center and taking technology as the guarantee. We are committed to providing consumers with quality products and services. With a high-quality management team and skilled research and development team, our company has a long-term cooperation and exchanges with relevant research units in technical research and development. It makes good conditions for our product research and development and innovation. We strive to provide customers with efficient, complete, and flexible solutions based on their needs.
We are committed to guaranteeing the product quality and after-sales service. Welcome to contact us for cooperation!
