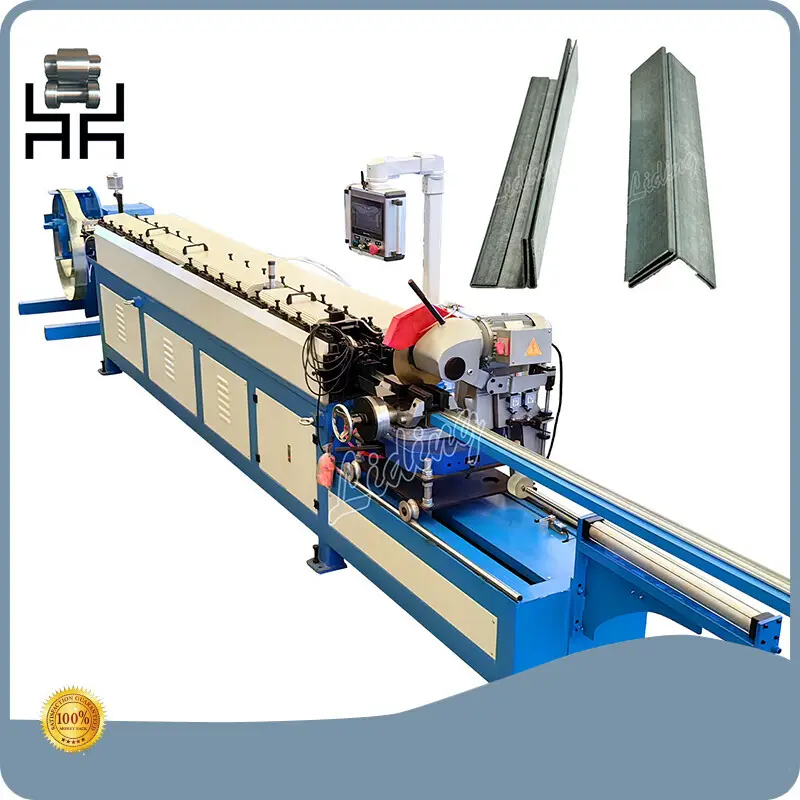

Hotauto Line Duct Machine Liding Machine Brand
Product details of the auto line duct machine
Quick Detail
佛山市立鼎科技有限公司 is willing to purchase high quality raw material rather than poor one in order to guarantee quality for auto line duct machine. The product complies with international quality standard and can stand any strict quality and performance test. The auto line duct machine developed by Foshan Liding Technology Co.,ltd is widely used in industry. The product shows great value in the industry and is bound to meet the specific requirements of customers.
Product Information
Our auto line duct machine has the following advantages over peer products.
Profile
Main features
Decoiler
● Bore diameter 460~520mm.
● Material width 200mm
● Load weight 1000kg
● Quantity: One.
● Manual Expansion
● Powerless drive, with brake
Forming machine
● Applicable materials: Galvanized sheet metal
● Material thickness: 0.7-1.2mm
● Main motor power: 3.7kw
● Molding speed: 6-8m/min
● Number of molding groups: 16 groups
● Shaft diameter and material: ¢ 42mm, 45# steel
● Great wall type plywood: plate thickness 25mm
● Transmission: Chain & gear transmission.
● Control system: PLC control
● Machine net weight: about 2.5 tons
● Voltage: 380V/ 3phase/ 50 Hz
● Dimensions of molding machine: approx. L*W*H 6m*0.7m*1.2m
● Forming roll material: Cr12MoV
● Punching die, cutting die material: Cr12MoV heat treatment HRC60-62℃.
Basic Configuration
Mechanical circular saw cutting off part
● Motor power 2.2 kW
● Mechanical circular saw with saw blade
● Mold material: CR12MOV
● Processing hardness HRC60 ° -62 °
● The encoder detects the online shutdown cut-off
Run out table
● Flat length 4 meters
● Flat table structure using square tube angle iron composition.
PLC computer control cabinet
● Voltage: 380 V, 50 Hz, 3Phase
● Panasonic PLC, human-machine interface control, domestic inverter speed control.
● Main electrical parts adopt Schneider and Shihlin products.
● The length is counted by internal encoder.
● The electric control box adopts fully sealed ventilation and cooling device.
● The power supply of control system adopts overload protection.
● Adopting shutdown cut-off method.
Workflow
Decoiling - Cold Roll Forming - Cutting - Unloading - Finishing
Product display
Company Introduction
佛山市立鼎科技有限公司 is a modern company located in fo shan. We run the main business of Air Duct flange Roll forming machine,Fire damper production line,HAVC Air duct line,C/U/Z purlin forming machine,Storage Shelf roll forming machines. Our company has built a sound service system. It can provide customers with one-stop services with product consultation, professional debugging, skills training, after-sales service. We provide you with high-quality products and look forward to your inquiry.
