Hot Sale Hvac Duct Manufacturing Machines Made in China for Sale
Product details of the hvac duct manufacturing machines
Product Information
Liding Machine hvac duct manufacturing machines grows more varied with time and technology. It is very convenient for our customers to clean hvac duct manufacturing machines. 佛山市立鼎科技有限公司 can provide free installation service for customers.
Main parameters

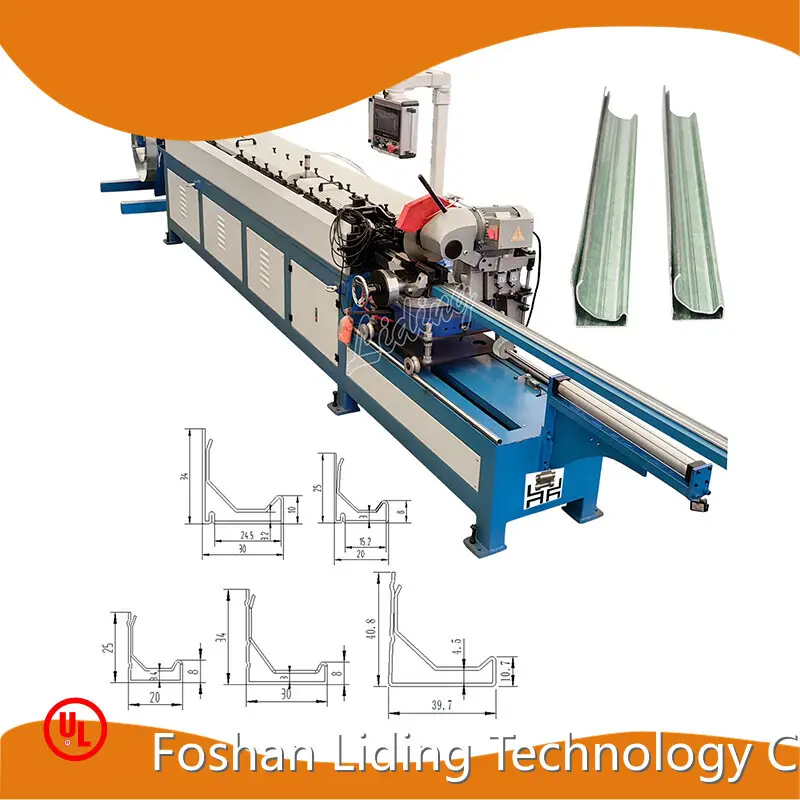

tdc flange forming machine details
① Feeding material: aluzinc/galvanized steel/colored steel coil or as customer request
② Feeding Thickness : 0.8-1.0mm
③ Productivity: 6-8m/min
④ hydraulic pump station power:2.2kw
⑤ Cutting blade: heat treatment hardness HRC60°-62°
⑥ Forming machine size: approx. L*W*H 7m*0.8m*1.2m
⑦ Machine net weight: approx. 2.5 tons
⑧ Machine table：welded with 100*80 square tube
⑨ Side plate thickness:25mm
⑩ Main motor power:4kw
⑪ Rolling stages:15stages+ 5 rollers for straightening
⑫ Shaft diameter : ￠42mm
⑬ Shaft material：45# steel，quenched and finely ground outer circle
⑭ main bearing material :6207
⑮ Roller material: GCr15 steel
⑯ Control systerm: PLC control system with touch screen
⑰ Roller driven type：Chain and gear transmission
⑱ Voltage: 380V/ 3phase/ 50 Hz
Producing process
Decoiling → Feeding → Roll forming →Circular steel sawing-off →Run-out table
Product display
Company Advantage
• Based on the principle of 'service is always considerate', Foshan Liding Technology Co.,ltd creates an efficient, timely and mutually beneficial service environment for customers.
• Founded in Foshan Liding Technology Co.,ltd has experienced a major change in the past years.
• Our company currently has a number of excellent teams with industry-related knowledge and skilled production workers, who can ensure that our products are of good quality.
• Our company sells products to many central cities in China, and is stationed in many large supermarkets and stores. We also export our products to North America, Europe, Australia and Southeast Asia.
Thanks for visiting. If you are interested in reaching partnership with Foshan Liding Technology Co.,ltd, just leave your contact information. We will contact you as soon as possible!
