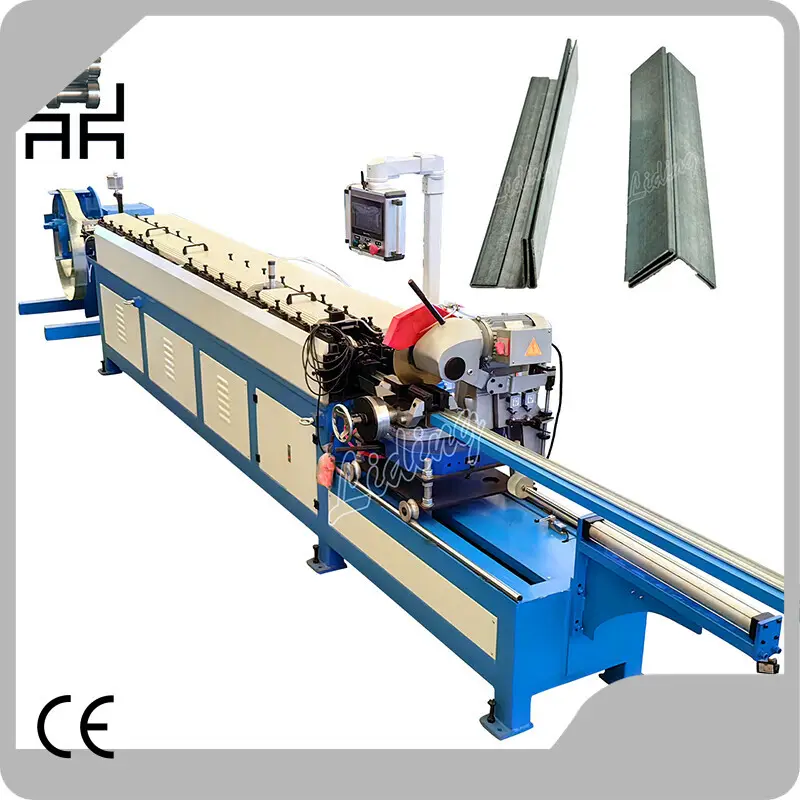

Hot Hvac Machine Liding Machine Brand
Product details of the hvac machine
Product Information
With the support of our skilled professionals, the production process of Liding Machine hvac machine is rather efficient and meets the industry standard. This product passes an international standard quality certification. The product can meet the diverse requirements of the clients, showing a rather promising application future.
Profile
Main features
Decoiler
● Bore diameter 460~520mm.
● Material width 200mm
● Load weight 1000kg
● Quantity: One.
● Manual Expansion
● Powerless drive, with brake
Forming machine
● Applicable materials: Galvanized sheet metal
● Material thickness: 0.7-1.2mm
● Main motor power: 3.7kw
● Molding speed: 6-8m/min
● Number of molding groups: 16 groups
● Shaft diameter and material: ¢ 42mm, 45# steel
● Great wall type plywood: plate thickness 25mm
● Transmission: Chain & gear transmission.
● Control system: PLC control
● Machine net weight: about 2.5 tons
● Voltage: 380V/ 3phase/ 50 Hz
● Dimensions of molding machine: approx. L*W*H 6m*0.7m*1.2m
● Forming roll material: Cr12MoV
● Punching die, cutting die material: Cr12MoV heat treatment HRC60-62℃.
Basic Configuration
Mechanical circular saw cutting off part
● Motor power 2.2 kW
● Mechanical circular saw with saw blade
● Mold material: CR12MOV
● Processing hardness HRC60 ° -62 °
● The encoder detects the online shutdown cut-off
Run out table
● Flat length 4 meters
● Flat table structure using square tube angle iron composition.
PLC computer control cabinet
● Voltage: 380 V, 50 Hz, 3Phase
● Panasonic PLC, human-machine interface control, domestic inverter speed control.
● Main electrical parts adopt Schneider and Shihlin products.
● The length is counted by internal encoder.
● The electric control box adopts fully sealed ventilation and cooling device.
● The power supply of control system adopts overload protection.
● Adopting shutdown cut-off method.
Workflow
Decoiling - Cold Roll Forming - Cutting - Unloading - Finishing
