Product Overview
During the design phase of Liding Machine for factory, we keep close eyes on customers' needs. The product complies with international quality standards. 佛山市立鼎科技有限公司 fully implements the quality management system, laying the foundation for future innovation and development.
Product Description
Compared with other products in the industry, for factory has more obvious advantages which are reflected in the following aspects.
Main parameters

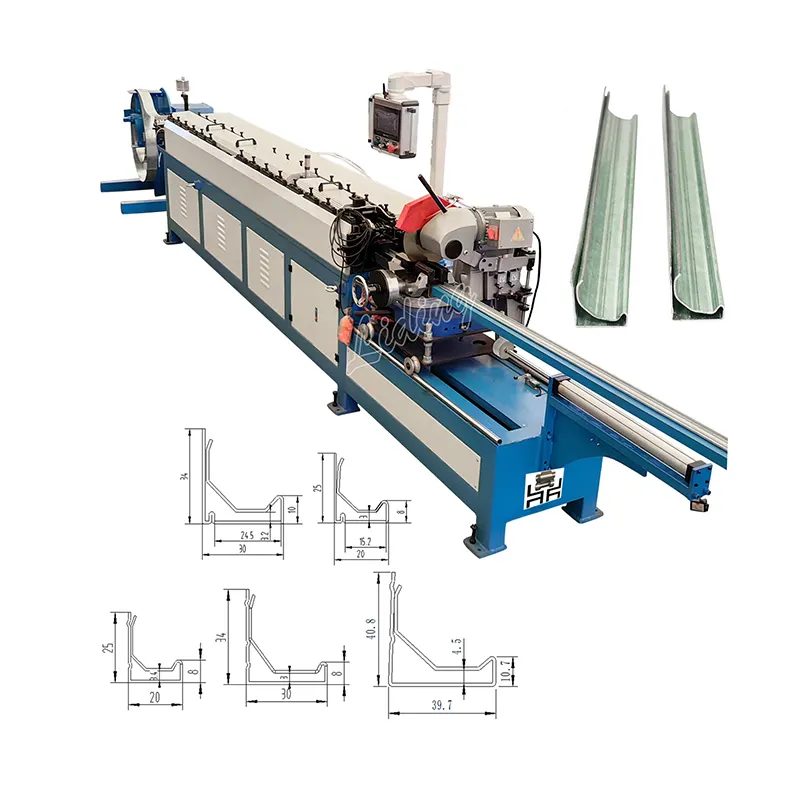

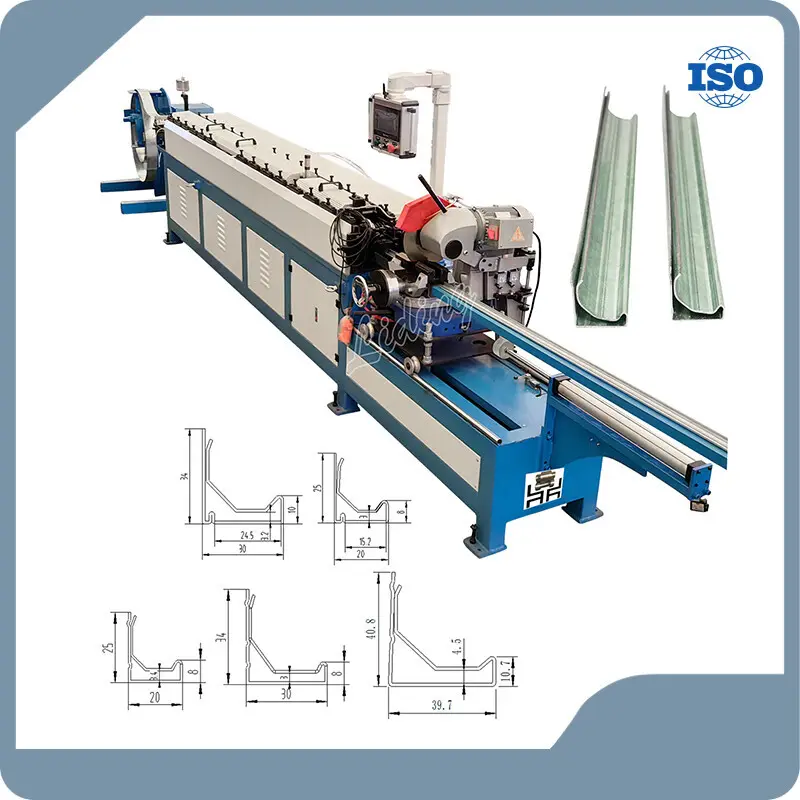

tdc flange forming machine details
① Feeding material: aluzinc/galvanized steel/colored steel coil or as customer request
② Feeding Thickness : 0.8-1.0mm
③ Productivity: 6-8m/min
④ hydraulic pump station power:2.2kw
⑤ Cutting blade: heat treatment hardness HRC60°-62°
⑥ Forming machine size: approx. L*W*H 7m*0.8m*1.2m
⑦ Machine net weight: approx. 2.5 tons
⑧ Machine table：welded with 100*80 square tube
⑨ Side plate thickness:25mm
⑩ Main motor power:4kw
⑪ Rolling stages:15stages+ 5 rollers for straightening
⑫ Shaft diameter : ￠42mm
⑬ Shaft material：45# steel，quenched and finely ground outer circle
⑭ main bearing material :6207
⑮ Roller material: GCr15 steel

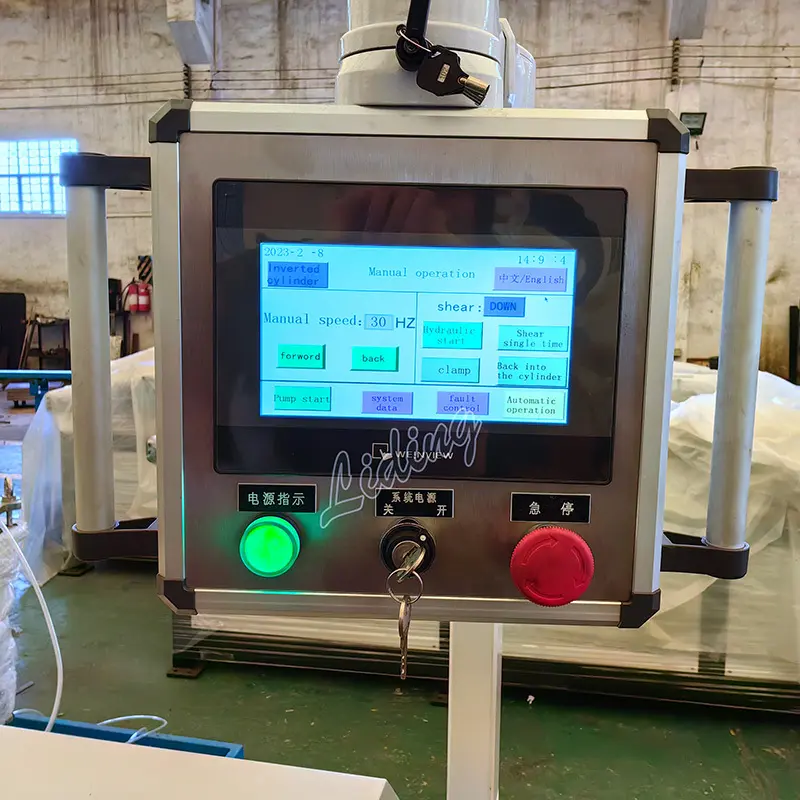

⑯ Control systerm: PLC control system with touch screen
⑰ Roller driven type：Chain and gear transmission
⑱ Voltage: 380V/ 3phase/ 50 Hz
Producing process

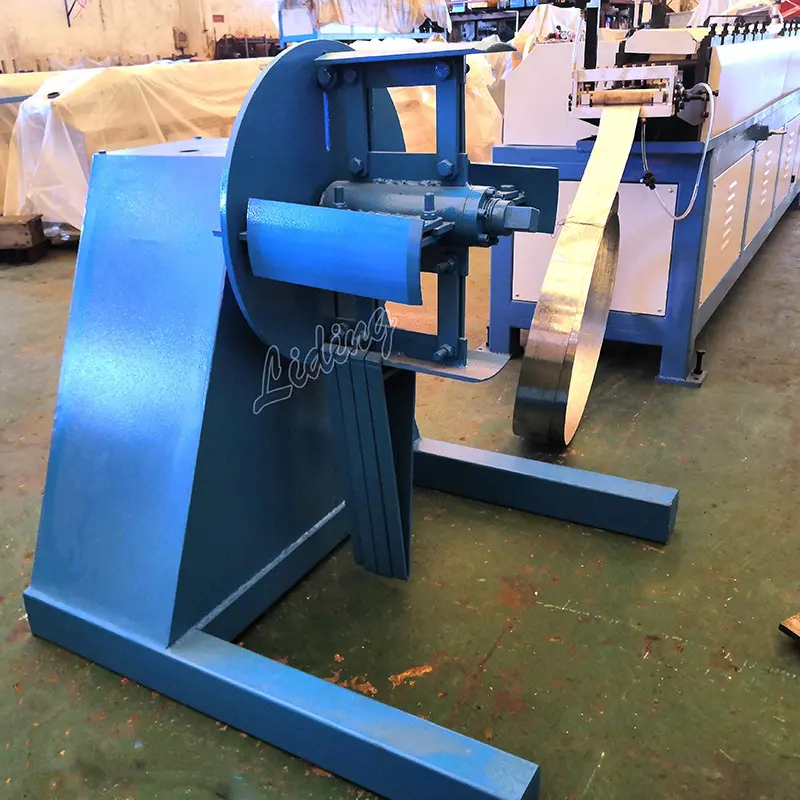

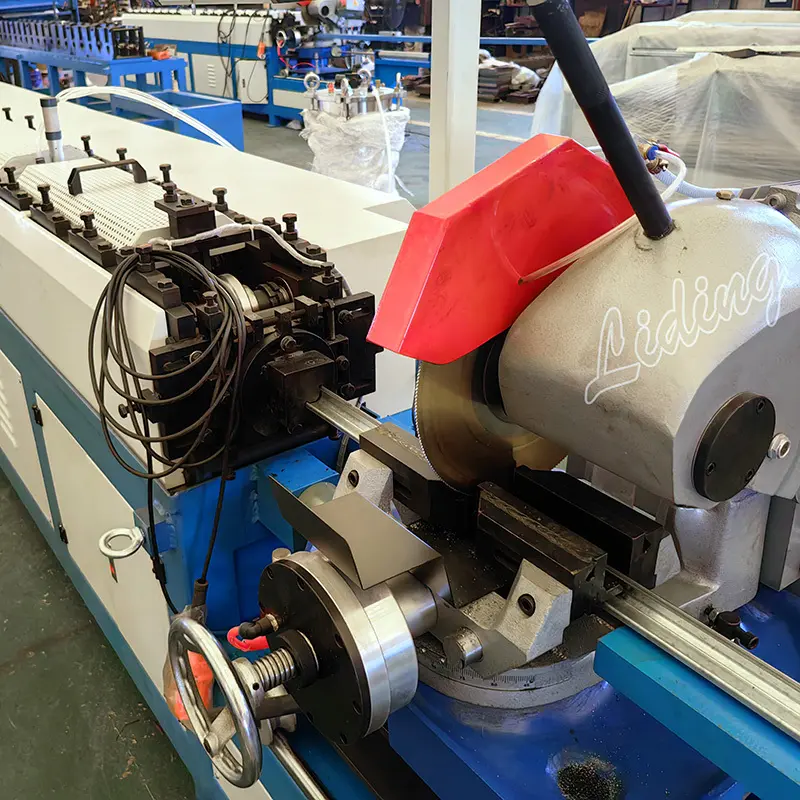

Decoiling → Feeding → Roll forming →Circular steel sawing-off →Run-out table

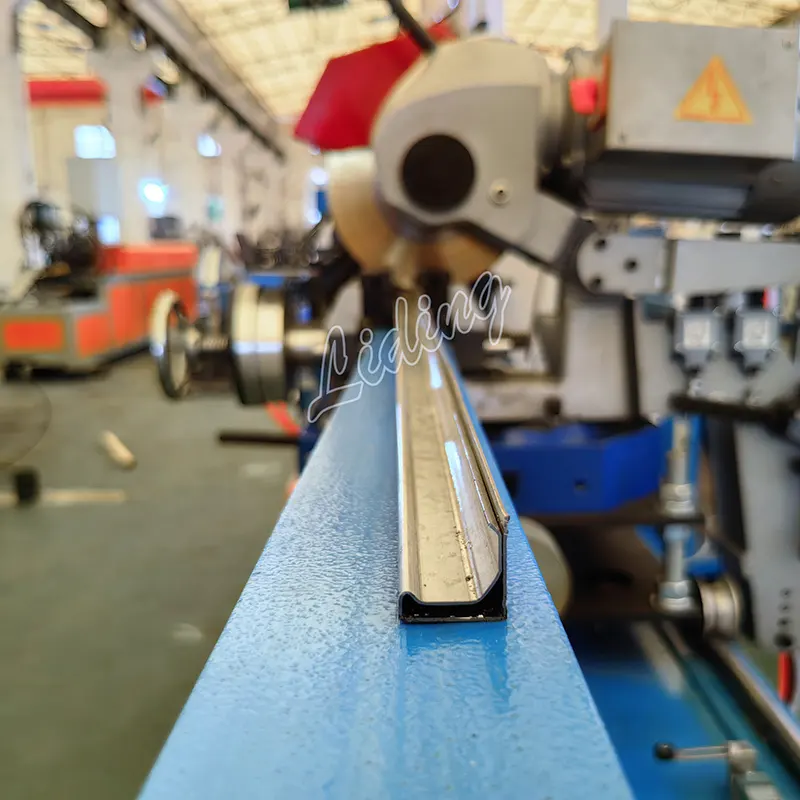

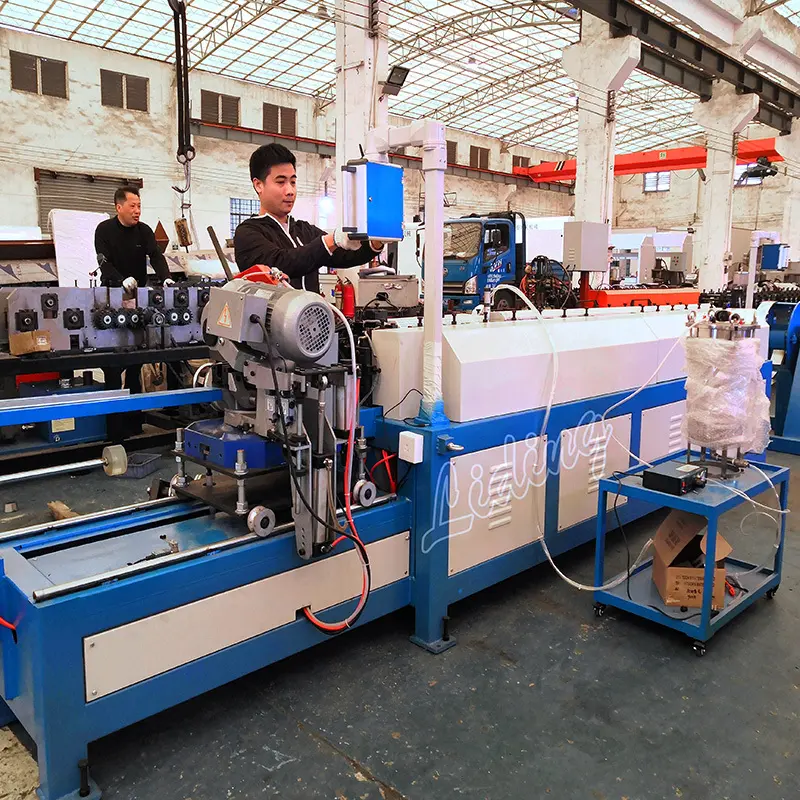

Product display
