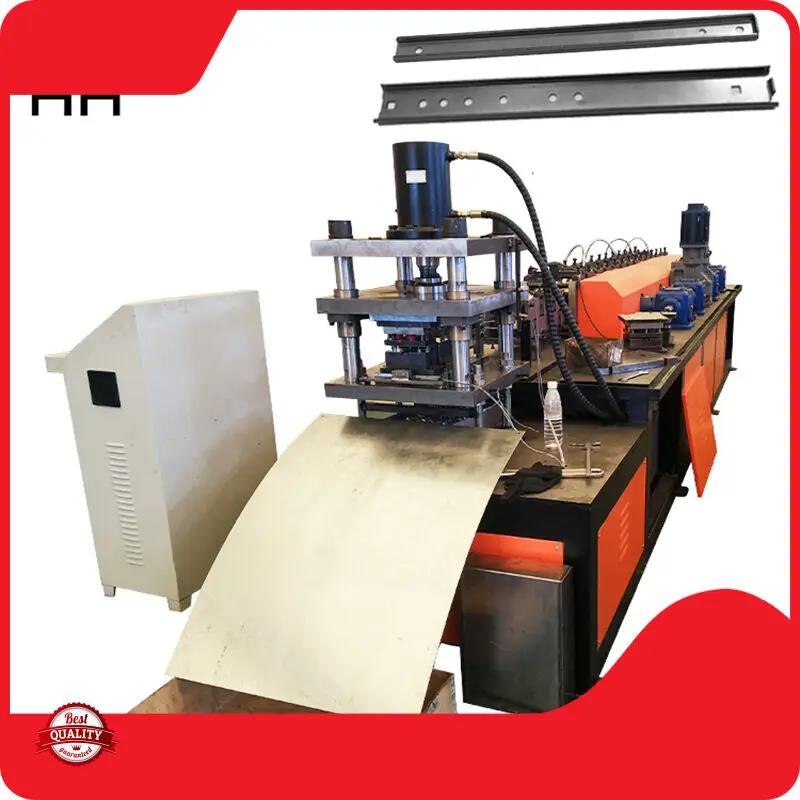

Good Sellingcold Forming Machine for Sale
Composition of the machine
|
Configure |
Technical Parameters |
|
|
Manual Decoiler |
Load capacity 1 ton |
|
|
Roll forming machine |
Main Machine frame |
Side board is made of 45# 30mm steel plate |
|
Forming section |
12 groups rollers,Cr12mov steel, HRC up to 58~60º. |
|
|
Full Forming Section |
4 sets of main forming rolls for precision shaping |
|
|
Transmission section |
Reduction gearbox and gear transmission |
|
|
Punching and cutting section |
Composed of platform mold, stretching and cutting composite mold, single-cylinder hydraulic press and length measuring device. Punching material :DC53 |
|
|
Finished product collection box |
Used to take over the processed productions. |
|
|
Cooling circulation system |
The medium is emulsified oil |
|
|
Electric control system Security part |
Protection net, warning signs, manual emergency stop button,etc. |
|
Profile
Other type:Two-piece Guide Slide machine
Workflow
Decoiling - Cold Roll Forming - Hydraulic Punching & Cutting - Unloading - Finishing
Composition of the machine
● Manual Decoiler ,2 set
● Rail forming main machines (Internal and external )，2 set
● Hydraulic system Mold,2 set
● Electric control device (touch screen, inverter, PLC, etc.)
Composition of the machine
|
Item |
|
Technical Parameters |
|
Forming materials |
Material |
Cold Plate Material |
|
Material thickness |
1.5±0.02㎜ |
|
|
Inner diameter of the coil |
Ф460-Ф520 |
|
|
Processing capacity |
Main machine forming speed |
12pcs/min |
|
Processing length |
200-1000mm |
|
|
Processing Quality |
Dimensional accuracy |
±0.2㎜ when L≤500mm; |
|
Straightness; Disturbance; |
When L≤500mm, curvature not more than ±0.2㎜; |
|
|
Dimensional requirements of forming section |
According to the drawing |
|
|
Surface quality |
No obvious wrinkles, unevenness, surface galvanizing layer abrasion and other defects |
Product display
Company Advantages
· The design of cold forming machine shows a strong sense of art.
· Our qualified and experienced staff strictly follows the quality control system.
· Every piece of cold forming machine is of high quality.
Company Features
· Counting on expertise in developing and manufacturing cold forming machine, 佛山市立鼎科技有限公司 has become one of the major players in this industry.
· 佛山市立鼎科技有限公司 attaches great importance to technology used in cold forming machine because technology can help increase efficiency greatly.
· Liding Machine aims to make constant improvement in every detail and try to provide the best service. Ask!
Application of the Product
The cold forming machine developed and produced by our company is widely applied to many industries and fields, and it can fully meet the diversified needs of customers.
Foshan Liding Technology Co.,ltd is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.
