For Sale Roof Roll Forming Machine by Liding Machine
Company Advantages
· The design of Liding Machine roof roll forming machine is a combination of aesthetics and functionality.
· The product has various quality attributes and high performance.
· Due to the dedicated and sincere efforts of our staff, we have established Liding Machine as a trustworthy organization in the market.
Technical Parameters
|
Item |
Parameters |
|
Material |
Galvanized Plate |
|
Material Thickness |
1.8 - 2.0 MM (or 1.2 - 1.5 MM) |
|
Width of Coil |
According to Customer's Requirement |
|
Weight of Coil |
≤ 2000 KGS |
|
Blade Size |
150 – 205 MM |
|
Center Distance between Left and Right Grooves |
102 MM, Round Groove |
|
Formed Blade Width |
≤ 205 MM (If ﹥205 MM, Blade Flatness cannot be Guaranteed) |
|
Punching or Punch Blade Coverplate Hole |
According to Customer's Requirement |
|
Motor Power |
5.5 KW / 4 KW |
|
Forming Speed |
1 – 10M/Min, Adjustable |
|
Control Mode |
PLC Control |
|
Main Power Supply |
380 V, 50 HZ, 3 Phase |
|
Hydraulic System Pressure |
25 MPa, Working Pressure: 8 – 12 MPa |
|
External Dimensions of Line |
Approx. 5000 MM × 700 MM × 1200 MM (L × W × H) |
Main features

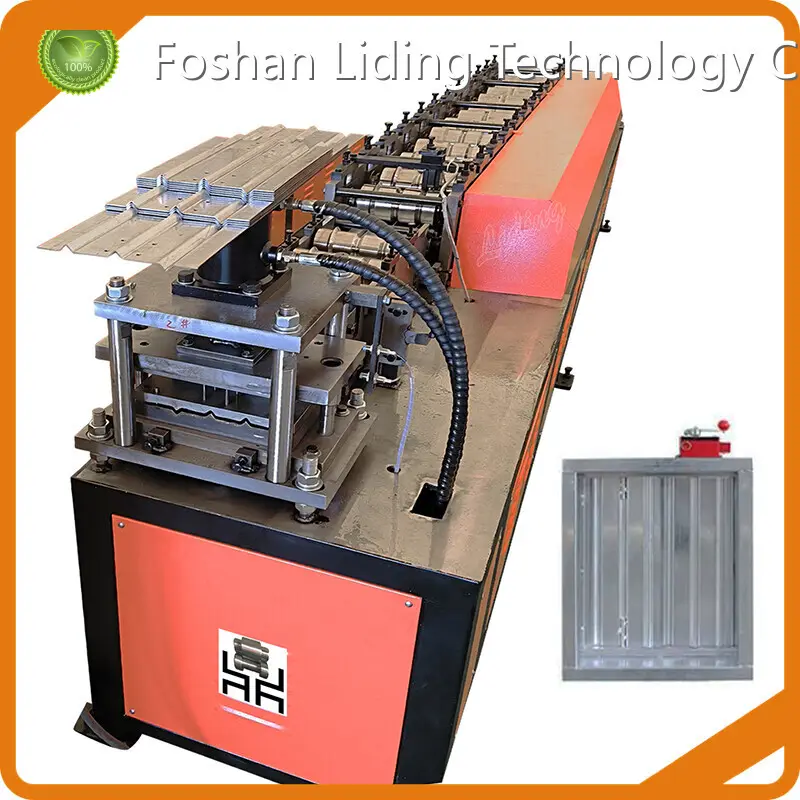

Fire Damper Blade Forming Machine is mainly composed of manual decoiler, forming machine, cutting & punching tools, electrical control system and hydraulic control system, widely used for the mass production of fire damper blade.
The whole line is controlled by Japanese Panasonic PLC, operator can set to run the line automatically and monitor the control process.
Workflow
Fire Damper Blade Machine Production Process:
Decoiling → Roll Forming → Straightening, Reshaping → Cutting To Length (Punching) → Manual Discharging.
Technical Parameters
|
Item |
Quantity |
|
Manual Decoiler |
1 Unit |
|
Forming Machine |
1 Unit |
|
Cutting, Punching Tools |
1 Set |
|
Electrical Control System |
1 Set |
|
Hydraulic Control System |
1 Set |
Product display
Company Features
· With years of focus on the design and production of roof roll forming machine, 佛山市立鼎科技有限公司 has grown into one of the most professional manufacturers in the industry.
· Our factory firmly adheres to the up-to-date quality control system and strict production management to fulfill the quality commitment to customers. We have a strong team of engineers who are experienced in project development and management. They have abundant knowledge in the market potential and prospect of the product. With introduced advanced technology and equipment, our factory coordinates the production through strict management to supply quality products including roof roll forming machine for customers.
· 佛山市立鼎科技有限公司 focuses on creating a world-class brand with unique value creativity. Contact!
Application of the Product
roof roll forming machine of Foshan Liding Technology Co.,ltd is widely used and has a wide range of applications.
Foshan Liding Technology Co.,ltd is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.
Product Comparison
Compared with other similar products in the market, Foshan Liding Technology Co.,ltd's roof roll forming machine is provided with the following outstanding advantages.
Enterprise Advantages
Our company employs a number of industry experts and forms a professional R&D technical team. All that provides power for our continuous development.
Foshan Liding Technology Co.,ltd always puts customers and services in the first place. We constantly improve service while paying attention to product quality. Our goal is to provide high-quality products as well as thoughtful and professional services.
Foshan Liding Technology Co.,ltd runs a professional, standardized and scale business. We take 'excellence and innovation, diligence, rigor and honesty' as our enterprise spirit. Moreover, we highly value sincerity, responsibility and environmental protection. Based on the firm belief of development, we take the initiative to assume social responsibilities while emphasizing economic benefits. We are committed to becoming an excellent manufacturer in the industry.
Since the establishment in our company has been focusing on the strength improvement. At present, we have accumulated industry experience for years. It lays a solid foundation for our future development.
Our company has gradually formed a multi-model, multi-channel, multi-media sales network. And our products are mainly sold to domestic major cities, and exported to North America, Europe, Southeast Asia and other foreign markets.
