For Industrial Liding Machine Company
Main parameters
Electric Decoiler
● Bore diameter 460~520mm.
● Material width 200mm
● Load weight 1000kg
● Quantity: One.
● Manual Expansion
● Powerless transmission,with brake.

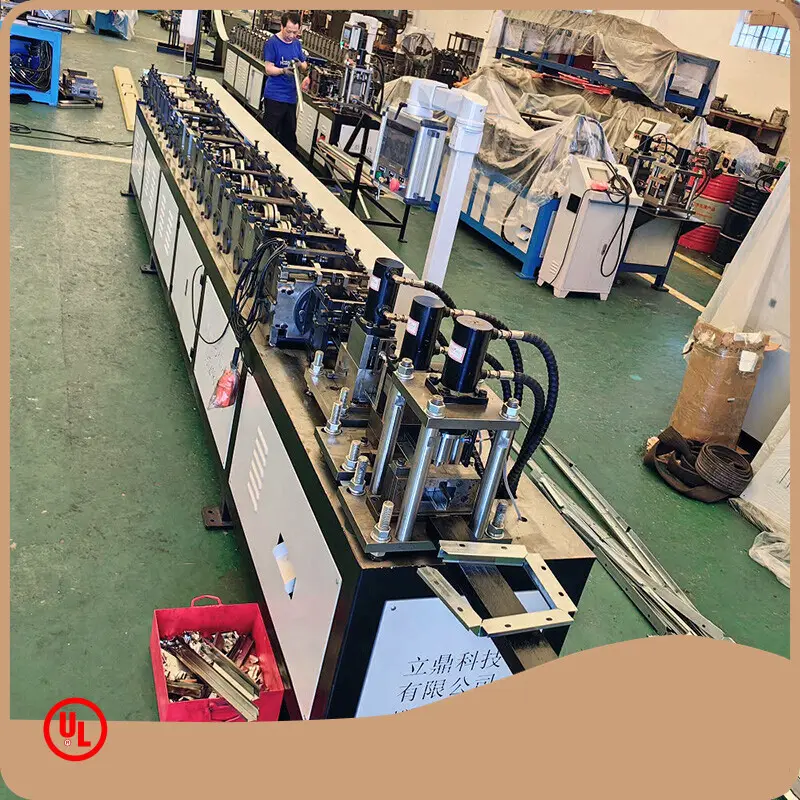

Forming machine
● Applicable materials: Cold or galvanized sheet metal
● Material thickness: 0.4-0.6mm
● Main motor power: 4kw(servo motor)
● Molding speed: 3-6m/min
● Number of molding groups: 18 groups+5 groups for straightening
● Shaft diameter and material: ¢ 42mm, 45# steel
● Great wall type plywood: plate thickness 35mm
● Transmission: Chain & gear transmission.
● Control system: PLC control
● Machine net weight: about 4 tons
● Voltage: 380V/ 3phase/ 50 Hz
● Dimensions of molding machine: approx. L*W*H 6m*0.8m*1.2m
● Forming roll material: Cr12MoV
● Punching die, cutting die material: Cr12MoV heat treatment HRC60-62℃.
Basic Configuration
Cutting off parts
● Hydraulic system, hydraulic motor 2.2KW, three stations cylinder
● 1 set of punching molds, 1 set of 90 degree angle cutting molds, 1 set of waste cut-off molds
● Mold material: CR12MOV
● Processing hardness HRC60°-62°.
● Adopting online encoder to detect the stopping and cutting.
Run out table
● Flat length 4 meters
● Flat table structure using square tube angle iron composition.
PLC computer control cabinet
● Voltage: 380 V, 50 Hz, 3Phase
● Panasonic PLC, human-machine interface control, domestic inverter speed control.
● Main electrical parts adopt Schneider and Shihlin products.
● The length of the encoder using the internal control encoder counting length way
● Electronic control box adopts fully sealed ventilation cooling device.
● Control system power supply adopts overload protection.
● Adopt shutdown cut-off mode
Workflow
Decoiling - Roll Forming - Punching round holes - 90 degree notch - cut off - finish
