For Industrial Elbow Cold Forming Machine by Liding Machine
Company Advantages
· The design of Liding Machine elbow cold forming machine makes it more comprehensive in the industry.
· The products are internationally certified and have a longer service life than other products.
· This product is well-known in the industry for its huge economic results.
Main features

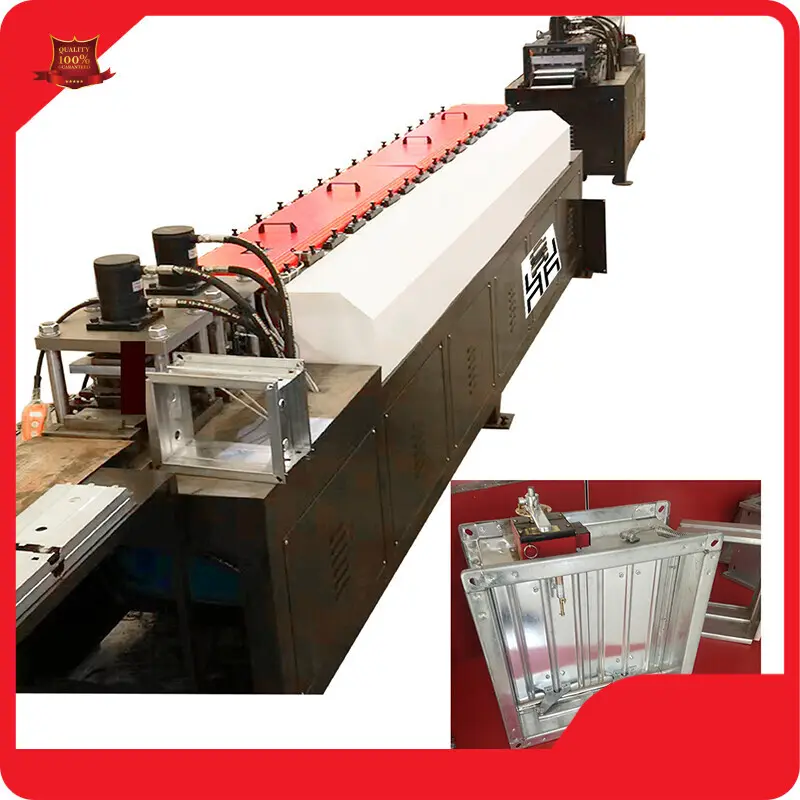

Volume control damper frame Roll Forming Machine Main Features:
1. Fast speed: forming speed of 0-6m/min,can produce 300–400 frame 8 hours per shift by only 1-2 people.
2. High precision: hole distance error ± 0.25 mm, length error ± 0.5 mm, diagonal error ± 0.8 mm.
3. High efficiency: continuous order mode, customers can input multiple order data at one time for continuous production.
4. Good forming effect: specially designed rollers to ensure less abrasion to zinc layer after galvanized sheet is formed.
5. Small bending R: specially designed bending tool as well as pre-punching indentation at the small edge, two processes to ensure that the bending angle is small.
6. Good stability: electrical components adopt international and domestic top brands, the main mechanical parts through careful design and fatigue test, to ensure the stable production of production line in high-intensity and high-load working environment.
7. Simple operation: Computer controlled and easy to learn.
Damper outer frame roll forming Machine Main Technical Parameters
|
Technical parameters and specifications |
|
|
Coil material |
Galvanized Sheet |
|
Material thickness |
1.0-1.6mm |
|
Inner/Outer diameter of coil |
Ф460-Ф520mm/1500mm |
|
Forming speed |
0-6m/min |
|
8, Sheet length error range |
± 0.5mm |
|
Valve body bending error range |
±0.5mm |
|
Control system |
Full computer numerical control |
|
Main power supply |
380V 50Hz 3-phase |
|
Hydraulic pressure Working pressure |
8-12 MPa |
|
system pressure |
16MPa |
|
Pneumatic pressure |
0.6-0.8MPa |
|
Total length of the production line |
About 20 meters |
|
Machine width |
Approx. 1 m |
|
Total power |
About 25KW |
|
Total weight of machinery |
about 8 tons |
Workflow
Damper outer frame forming Producing process:
Decoiling →Servo Feeding& Punching&Cutting → Roll forming →Punching & Cutting→Run-out table
Damper outer frame roll forming Machine Compositions
|
Item |
Date |
|
Decoiler and leveling two-in-one machine |
Load weight 3000kg |
|
NC precision electronic numerical control roller feeding machine |
2KW servo motor |
|
Hydraulic punch&Cutting Modular (3 Stations,with 3 mold) |
Round hole punching molds 1 sets Punching square hole mold 1 set Cutting molds 1 set |
|
Roll Forming Machine |
16 stations, 7.5KW servo motor |
|
Hydraulic punch modular after forming |
2 Stations,with 2 mold |
|
Cutting Modular after forming |
1 Station,with 1 mold |
|
Run Out Table |
4 m |
|
PLC control cabinet |
Famous brand with touch screen |
|
Hydraulic system |
2 set (5.5kw) |
Product display
Company Features
· Being one the of most reliable manufacturer and supplier of elbow cold forming machine, 佛山市立鼎科技有限公司 has been providing innovative and high-quality products in the industry.
· 佛山市立鼎科技有限公司 has advanced production equipment, excellent manufacturing technology and complete testing methods.
· 佛山市立鼎科技有限公司 continuously optimizes our service system and improve the quality and performance of elbow cold forming machine. Inquire online!
Product Details
With a focus on quality, Foshan Liding Technology Co.,ltd pays great attention to the details of elbow cold forming machine.
Application of the Product
The elbow cold forming machine developed and produced by our company can be widely used in various industries and professional fields.
With a focus on customers, Foshan Liding Technology Co.,ltd analyzes problems from the perspective of customers. And we provide customers with comprehensive, professional and excellent solutions.
Enterprise Advantages
Foshan Liding Technology Co.,ltd has a professional technical team and an experienced marketing team to promote the production and sales of products.
Our company owns a comprehensive after-sales service system and information feedback channels. Thus, we can provide customers with a full range of service guarantees and effectively solve customers' problems.
Looking forward to the future, our company will continue to inherit the business philosophy of 'quality-oriented, customer first, reputation first', and carry forward the enterprise spirit of 'being honest and trustworthy, advance with the times, exploring and innovating'. Moreover, we constantly improve business management and we are developing towards a diversified, large-scale and international enterprise. We are committed to becoming a leading company in the industry.
Since the establishment in Foshan Liding Technology Co.,ltd has been constantly adapting to the market for years. With high-quality products, we have established a sound production and sales system, and created the rise and glory of our brand.
Through continuous development and improvement, our own unique brand has been created with a wide range of products. Moreover, a sales network spreading to the whole country has been established. Our products are exported to North America, Eastern Europe and Southeast Asia.
