Factory Pricecold Ring Rolling Machine for Factory
Product details of the cold ring rolling machine
Product Description
Liding Machine cold ring rolling machine is subtly manufactured by highly qualified workers with years of experience in the industry. Strict quality control process ensures zero defects and consistent quality. 佛山市立鼎科技有限公司’s development strategy will be started from the needs and experience of customers.
Main features

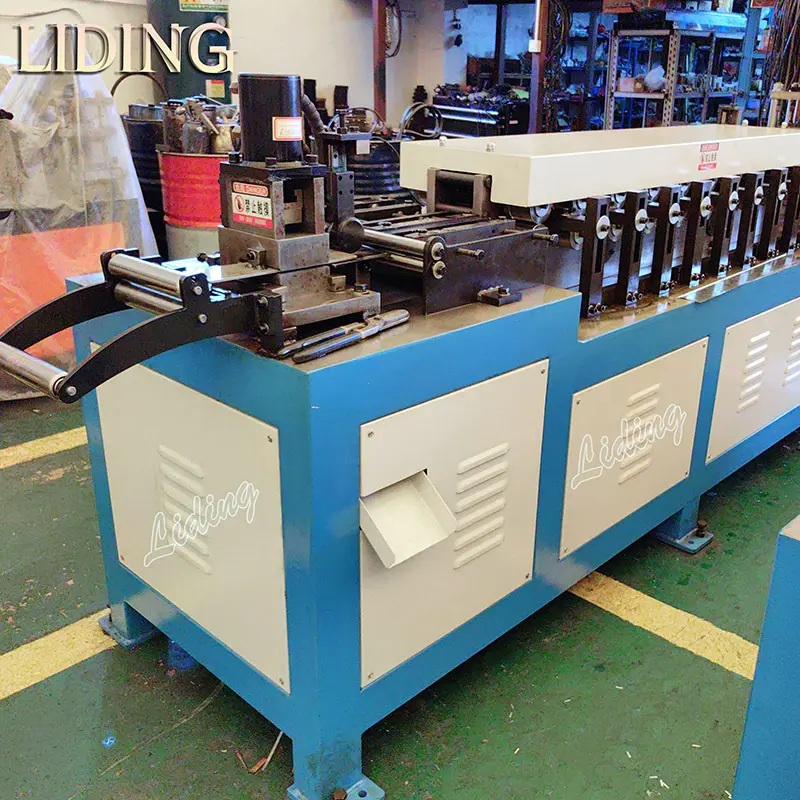

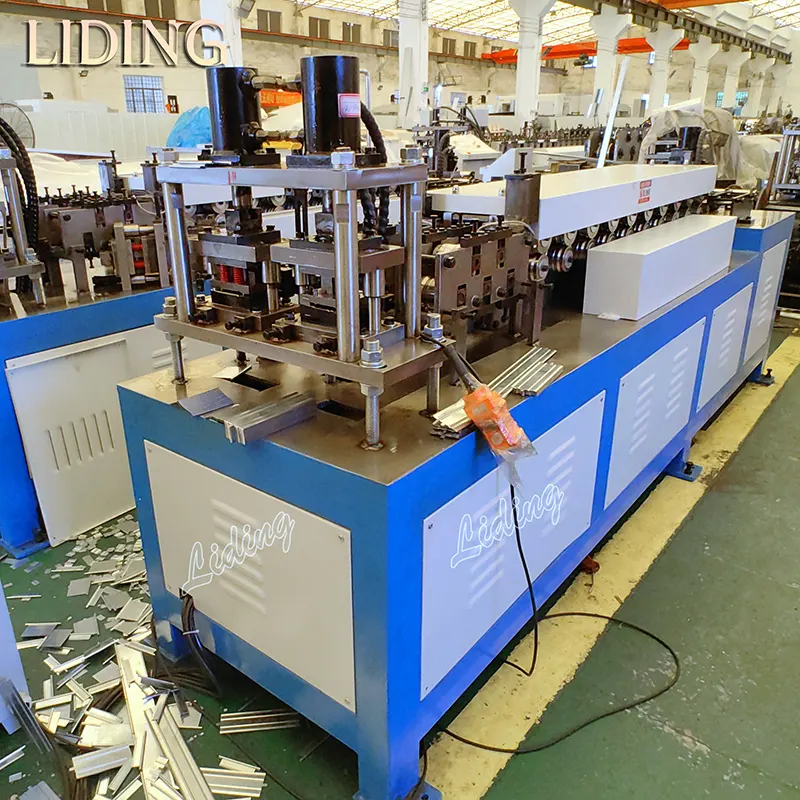

Forming machine
● Applicable materials: Cold or galvanized sheet metal
● Material thickness:Blade1.0mm；Blade type 1\2\3 0.5mm
● The forming rolls of the two products are installed side by side on the same frame to produce two specifications of profiles respectively.
● Blade type 1\2\3 is notched before forming.
● The frame is welded with 100*80 pipe.

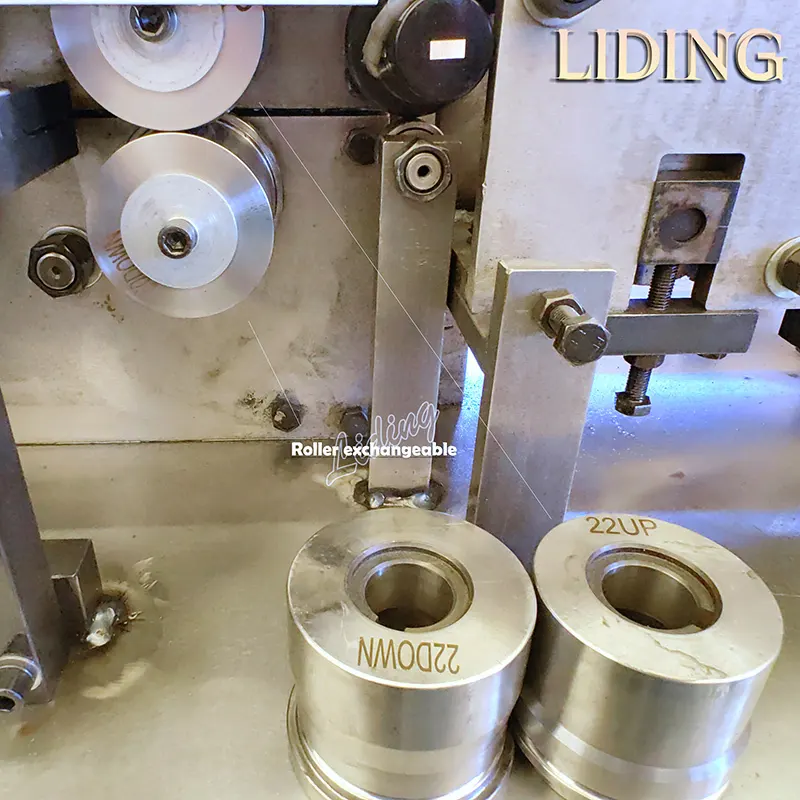

● Rolling roller 10 sets
● Rolling roller material GCr15 steel
● Rolling roller heat treatment HRC55°~57°.
● Rolling wheel bearing diameter 42mm, material 45# steel.
● Rolling roller bearing specification 6207
● Plywood thickness 25㎜
● Transmission method Chain and gear wheel
● Motor power 3 kW, K77
● Forming speed 6 m/min
Composition of the machine
● Manual Decoiler ,1 set
● Forming main machines (Internal and external )，1 set
● Hydraulic system Mold,1 set
● Electric control device (touch screen, inverter, PLC, etc.)

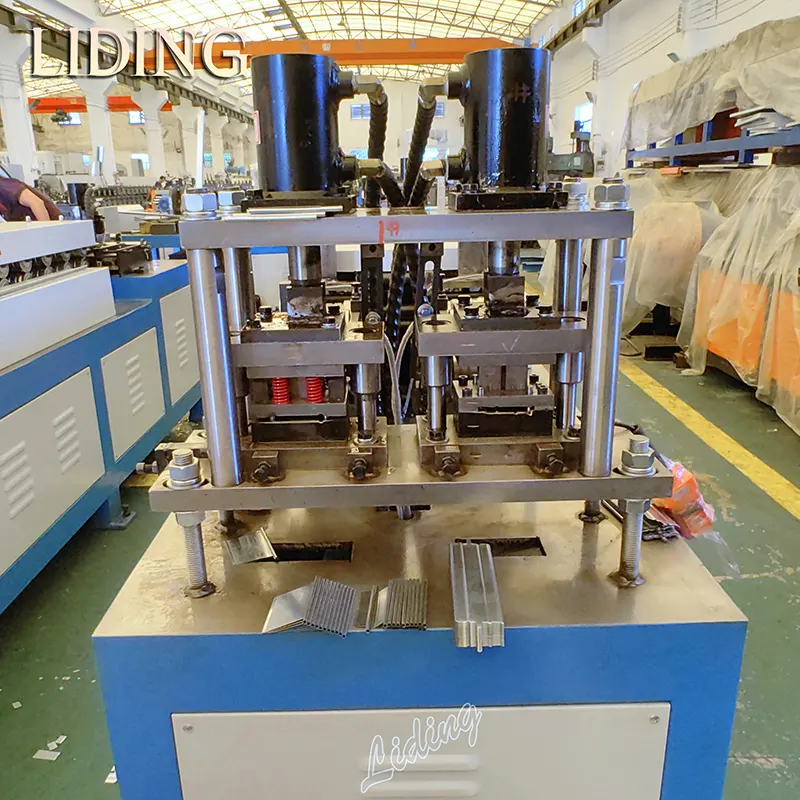

Cutting off parts
● With a set of hydraulic system device
● With Blade cut off mold 1 set, Blade type 1\2\3 cut off mold, 2 sets (replacement)
● Motor power 2.2kw
● Adopt cylinder control cutting method
● Cutting off by stopping the machine
Run out table
● Flat length 1 meters
● Flat table structure using square tube angle iron composition.

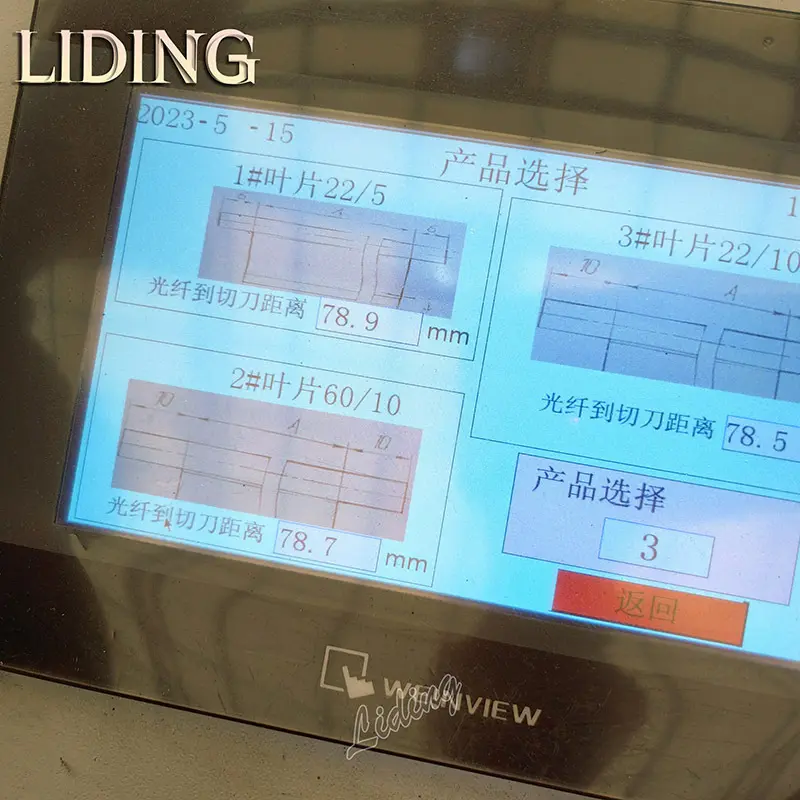

PLC computer control cabinet
● Voltage: 380 V, 50 Hz, 3Phase
● Adopt Panasonic PLC, human-machine interface control and domestic inverter for speed regulation.
● Main electrical parts adopt Schneider and Shihlin products.
● The length of the encoder using the internal control encoder counting length of the way
● Electronic control box adopts fully sealed ventilation and cooling device.
● Control box using fully sealed ventilation cooling device
● Control system power supply using overload protection, electronic control frame using aviation plug connection
● Stopping cut-off mode
Workflow
Decoiling -Punching- Cold Roll Forming - Cutting - Unloading - Finishing

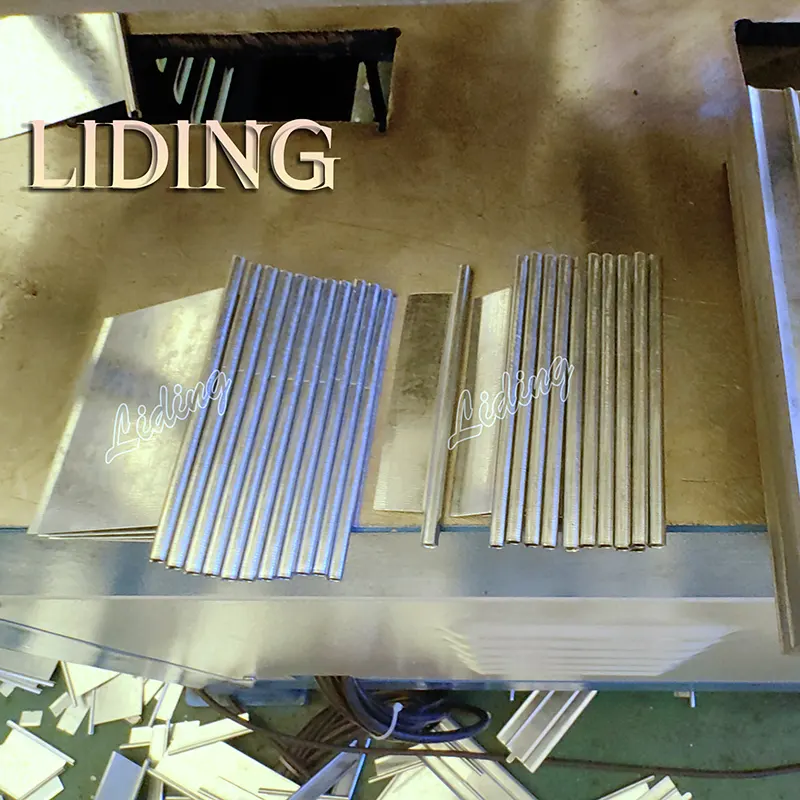

Product display
Company Advantage
• Foshan Liding Technology Co.,ltd has established a strict internal control system and a sound service system to provide quality products and efficient services for our customers.
• Foshan Liding Technology Co.,ltd has a group of skilled workers engaged in the R&D and production of Air Duct flange Roll forming machine,Fire damper production line,HAVC Air duct line,C/U/Z purlin forming machine,Storage Shelf roll forming machines.
• Foshan Liding Technology Co.,ltd's Air Duct flange Roll forming machine,Fire damper production line,HAVC Air duct line,C/U/Z purlin forming machine,Storage Shelf roll forming machines are sold in the domestic market and exported to many countries and regions, such as Central Asia and Southeast Asia. They are widely praised by domestic and foreign customers.
If you want to reach cooperation, feel free to communicate with Foshan Liding Technology Co.,ltd.
