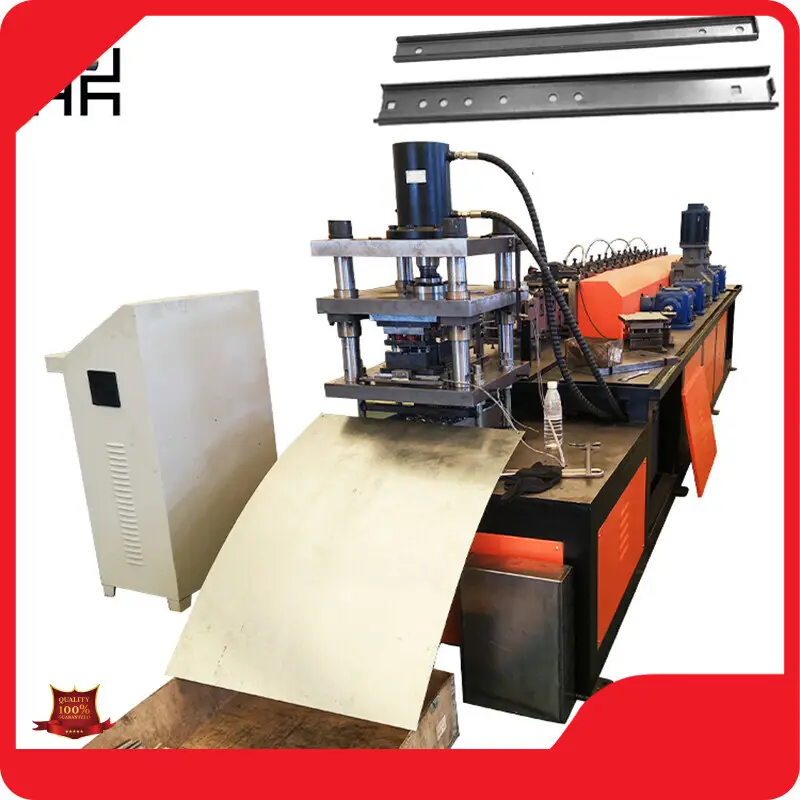

Factory Price C Purlin Roll Forming Machine Price Elegant for Factory
Composition of the machine
|
Configure |
Technical Parameters |
|
|
Manual Decoiler |
Load capacity 1 ton |
|
|
Roll forming machine |
Main Machine frame |
Side board is made of 45# 30mm steel plate |
|
Forming section |
12 groups rollers,Cr12mov steel, HRC up to 58~60º. |
|
|
Full Forming Section |
4 sets of main forming rolls for precision shaping |
|
|
Transmission section |
Reduction gearbox and gear transmission |
|
|
Punching and cutting section |
Composed of platform mold, stretching and cutting composite mold, single-cylinder hydraulic press and length measuring device. Punching material :DC53 |
|
|
Finished product collection box |
Used to take over the processed productions. |
|
|
Cooling circulation system |
The medium is emulsified oil |
|
|
Electric control system Security part |
Protection net, warning signs, manual emergency stop button,etc. |
|
Profile
Other type:Two-piece Guide Slide machine
Workflow
Decoiling - Cold Roll Forming - Hydraulic Punching & Cutting - Unloading - Finishing
Composition of the machine
● Manual Decoiler ,2 set
● Rail forming main machines (Internal and external )，2 set
● Hydraulic system Mold,2 set
● Electric control device (touch screen, inverter, PLC, etc.)
Composition of the machine
|
Item |
|
Technical Parameters |
|
Forming materials |
Material |
Cold Plate Material |
|
Material thickness |
1.5±0.02㎜ |
|
|
Inner diameter of the coil |
Ф460-Ф520 |
|
|
Processing capacity |
Main machine forming speed |
12pcs/min |
|
Processing length |
200-1000mm |
|
|
Processing Quality |
Dimensional accuracy |
±0.2㎜ when L≤500mm; |
|
Straightness; Disturbance; |
When L≤500mm, curvature not more than ±0.2㎜; |
|
|
Dimensional requirements of forming section |
According to the drawing |
|
|
Surface quality |
No obvious wrinkles, unevenness, surface galvanizing layer abrasion and other defects |
Product display
Company Advantages
· The design of Liding Machine c purlin roll forming machine price is ensured with accurate and efficient operation.
· The product is of high quality. Because it has been tested for several times and its superior quality and can withstand the test of the time.
· Every piece of c purlin roll forming machine price is of high quality.
Company Features
· 佛山市立鼎科技有限公司 is in a leading position in China's c purlin roll forming machine price research and development field.
· The factory has well-equipped cutting-edge facilities, including testing machines and manufacturing machines. These facilities always work in a precise and high efficient manner, which enables us to improve overall productivity.
· Our promise of value is based on innovative design, impeccable engineering, outstanding execution and excellent service within budget and schedule. Inquiry!
Application of the Product
Foshan Liding Technology Co.,ltd's c purlin roll forming machine price is widely used in many industries.
We will communicate with our customers to understand their situations and provide them with effective solutions.
